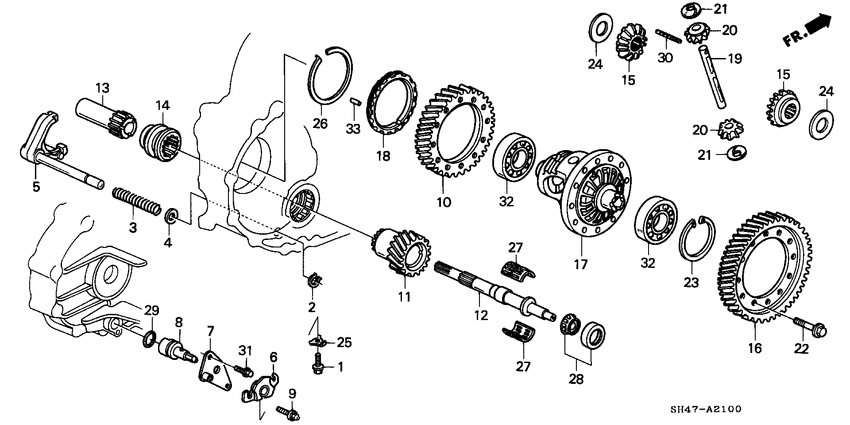

Differential (4WD) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 1.6I-4WD
- area code
- KX
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24282-634-000 BoltSHAFT FORK SETTING |
24282-634-000 |
from US $1.40 |
||
|
2
|
2
24456-PS5-000
Set ring
|
24456-PS5-000 |
— | ||
|
3
|
3
24457-PS5-000
Spring
|
24457-PS5-000 |
— | ||
|
4
|
4
24458-PS5-000
Washer
|
24458-PS5-000 |
— | ||
|
5
|
5
24510-PS5-010
Fork comp
|
24510-PS5-010 |
— | ||
|
6
|
6
24521-PS5-000
Lever
|
24521-PS5-000 |
— | ||
|
7
|
7
24522-PS5-000
Stay
|
24522-PS5-000 |
— | ||
|
8
|
8
24523-PS5-000
Cam
|
24523-PS5-000 |
— | ||
|
9
|
9
24524-PH8-960
Bolt
|
24524-PH8-960 |
— | ||
|
10
|
10
29011-PS5-000
Gear
|
29011-PS5-000 |
— | ||
|
11
|
11
29101-PS5-000
Gear
|
29101-PS5-000 |
— | ||
|
12
|
12
29201-PS5-000
Shaft
|
29201-PS5-000 |
— | ||
|
13
|
13
29311-PH8-000
Collar
|
29311-PH8-000 |
— | ||
|
14
|
14
29321-PH8-000
Sleeve
|
29321-PH8-000 |
— | ||
|
15
|
15
41221-PC8-030 GearDRIVE PINION |
41221-PC8-030 |
US $46.46 |
||
|
16
|
16
41233-PS5-000 GearFINAL DRIVEN |
41233-PS5-000 |
US $184.32 |
||
|
17
|
17
41311-PS5-000
Case
|
41311-PS5-000 |
— | ||
|
18
|
18
41312-PC9-951
Gear
|
41312-PC9-951 |
— | ||
|
19
|
19
41321-PE6-030
Shaft
|
41321-PE6-030 |
— | ||
|
20
|
20
41341-PC9-000
Gear
|
41341-PC9-000 |
— | ||
| replacement | |||||
|
20
|
20
41341-PC9-010 GearDIFFERENTIAL PINION |
41341-PC9-010 |
US $29.95 |
||
|
21
|
21
41351-689-000 Washer aDIFFERENTIAL PINION (0.7MM) |
41351-689-000 |
US $8.70 |
||
|
21
|
21
41353-689-000
Washer c
|
41353-689-000 |
— | ||
|
21
|
21
41355-PC8-000 Washer eDIFFERENTIAL PINION (0.75MM) |
41355-PC8-000 |
US $8.60 |
||
|
21
|
21
41357-PC8-000 Washer gDIFFERENTIAL PINION (0.95MM) |
41357-PC8-000 |
US $8.60 |
||
|
21
|
21
41352-689-000
Washer b
|
41352-689-000 |
— | ||
|
21
|
21
41354-689-000
Washer d
|
41354-689-000 |
— | ||
|
21
|
21
41356-PC8-000 Washer fDIFFERENTIAL PINION (0.85MM) |
41356-PC8-000 |
US $8.60 |
||
|
22
|
22
90017-PS5-000 BoltSPECIAL, 10MM |
90017-PS5-000 |
US $3.22 |
||
|
23
|
23
90419-PH8-000 Ring 6SNAP, 80X3.0 |
90419-PH8-000 |
US $5.32 |
||
|
23
|
23
90415-689-000 Ring 2SNAP, 80X2.6 |
90415-689-000 |
US $6.44 |
||
|
23
|
23
90418-689-000 Ring 5SNAP, 80X2.9 |
90418-689-000 |
US $6.44 |
||
|
23
|
23
90414-689-000 Ring 1SNAP, 80X2.5 |
90414-689-000 |
US $6.44 |
||
|
23
|
23
90416-689-000 Ring 3SNAP, 80X2.7 |
90416-689-000 |
US $6.44 |
||
|
24
|
24
90425-680-900
Washer
|
90425-680-900 |
— | ||
|
25
|
25
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
26
|
26
90608-PA9-000 CirclipEXTERNAL, 90MM |
90608-PA9-000 |
US $6.16 |
||
|
27
|
27
91107-PH8-008
Bearing
|
91107-PH8-008 |
— | ||
|
28
|
28
91121-PH8-961 BearingTAPER, 30203 |
91121-PH8-961 |
US $16.32 |
||
|
29
|
29
91302-PK4-003
O-ring
|
91302-PK4-003 |
— | ||
|
30
|
30
94305-40282 PinSPRING, 4X28 |
94305-40282 |
from US $0.89 |
||
|
31
|
31
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
32
|
32
96100-620-830-0 BearingRADIAL BALL, 6208 |
96100-620-830-0 |
US $17 |
||
|
33
|
33
96220-50150 Roller5X15 |
96220-50150 |
US $0.22 |
||
