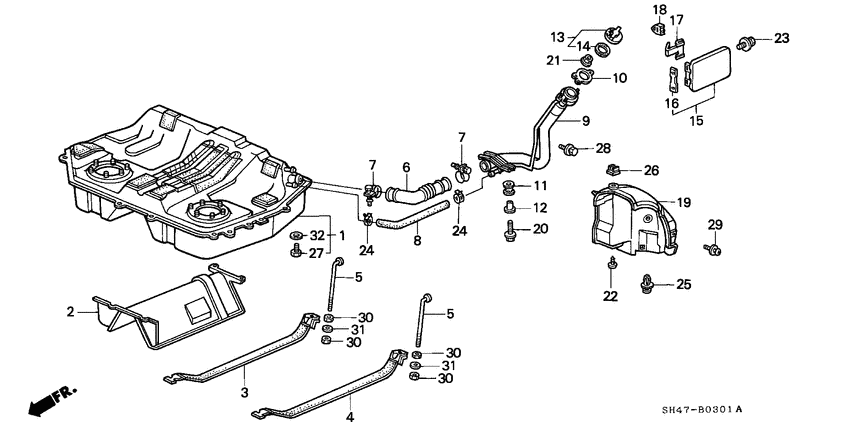

Fuel tank (4WD) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 1.6I-4WD
- area code
- KX
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17500-SH7-E32
Tank comp.
|
17500-SH7-E32 |
— | ||
|
2
|
2
17519-SH7-050
Protector
|
17519-SH7-050 |
— | ||
|
3
|
3
17521-SH7-010
Band
|
17521-SH7-010 |
— | ||
|
4
|
4
17522-SH7-010
Band
|
17522-SH7-010 |
— | ||
|
5
|
5
17525-SH7-010
Bolt
|
17525-SH7-010 |
— | ||
|
6
|
6
17651-SH7-010
Tube
|
17651-SH7-010 |
— | ||
|
7
|
7
17652-SA5-000 ClipFILLER TUBE |
17652-SA5-000 |
US $5.48 |
||
|
8
|
8
17653-SH7-000
Tube
|
17653-SH7-000 |
— | ||
|
9
|
9
17660-SH7-G03
Pipe comp
|
17660-SH7-G03 |
— | ||
|
10
|
10
17662-SB2-010
Packing
|
17662-SB2-010 |
— | ||
|
11
|
11
17664-SH4-010
Bush
|
17664-SH4-010 |
— | ||
|
12
|
12
17665-SH4-020
Collar
|
17665-SH4-020 |
— | ||
|
13
|
13
17670-SA5-013
Cap comp.
|
17670-SA5-013 |
— | ||
|
14
|
14
17682-679-013 PackingFUEL FILLER CAP |
17682-679-013 |
from US $4.59 |
||
|
15
|
15
63910-SH4-J00ZZ
Lid comp
|
63910-SH4-J00ZZ |
— | ||
|
16
|
16
63916-SH3-000
Seal
|
63916-SH3-000 |
— | ||
|
17
|
17
70494-SE0-000
Spring
|
70494-SE0-000 |
— | ||
|
18
|
18
74422-SH3-000 CushionFUEL FILLER LID |
74422-SH3-000 |
from US $2.37 |
||
|
19
|
19
74559-SH7-010
Cover
|
74559-SH7-010 |
— | ||
|
20
|
20
90011-SH4-020 BoltFILLER PIPE MOUNTING |
90011-SH4-020 |
US $2.24 |
||
|
21
|
21
90103-SB0-010 NutFLANGE, 5MM |
90103-SB0-010 |
US $1.33 |
||
|
22
|
22
90126-SA7-000
Screw-washer
|
90126-SA7-000 |
— | ||
| replacement | |||||
|
22
|
22
90114-SZ3-000 Screw-washer5X20 |
90114-SZ3-000 |
US $2.52 |
||
|
23
|
23
90147-634-003 BoltFENDER, 6X18 |
90147-634-003 |
from US $3.55 |
||
|
24
|
24
90602-SA7-931 ClampFUEL HOSE, 18.5MM |
90602-SA7-931 |
from US $2.66 |
||
|
25
|
25
90657-SA5-003 ClipSIDE APRON MOLDING |
90657-SA5-003 |
from US $1.84 |
||
|
26
|
26
90676-SA7-003 GrommetSCREW, 5MM (BLACK) |
90676-SA7-003 |
US $1.54 |
||
|
27
|
27
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
28
|
28
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
29
|
29
93894-050-124-7 Screw-washer5X12 |
93894-050-124-7 |
US $0.44 |
||
|
30
|
30
94002-080-800-S NutHEX., 8MM |
94002-080-800-S |
from US $0.49 |
||
| replacement | |||||
|
30
|
30
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
31
|
31
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
32
|
32
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
