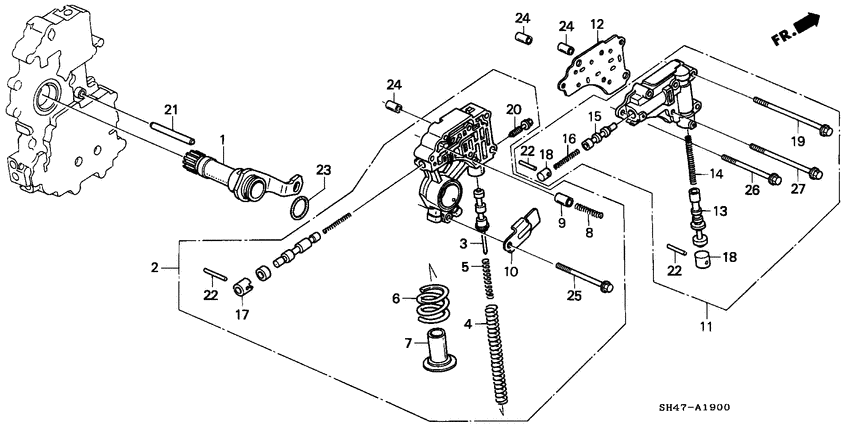

Regulator/lock up valve (4WD) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 1.6I-4WD
- area code
- KX
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25155-PL4-000
Shaft assy
|
25155-PL4-000 |
— | ||
|
2
|
2
27200-PS5-900
Body assy
|
27200-PS5-900 |
— | ||
|
3
|
3
27221-PC9-000
Valve
|
27221-PC9-000 |
— | ||
|
4
|
4
27231-PC9-912
Spring a
|
27231-PC9-912 |
— | ||
|
5
|
5
27232-PF4-000
Spring b
|
27232-PF4-000 |
— | ||
|
6
|
6
27233-PA9-000
Spring
|
27233-PA9-000 |
— | ||
|
7
|
7
27246-PN6-800 CapREGULATOR SPRING |
27246-PN6-800 |
US $16 |
||
|
8
|
8
27255-PC9-710
Spring
|
27255-PC9-710 |
— | ||
|
9
|
9
27256-639-000
Valve
|
27256-639-000 |
— | ||
|
10
|
10
27413-PS5-000
Stay
|
27413-PS5-000 |
— | ||
|
11
|
11
27600-PS5-000
Body assy
|
27600-PS5-000 |
— | ||
|
12
|
12
27612-PS5-010
Plate
|
27612-PS5-010 |
— | ||
|
13
|
13
27621-PN6-000
Valve
|
27621-PN6-000 |
— | ||
|
14
|
14
27623-PL5-000
Spring
|
27623-PL5-000 |
— | ||
|
15
|
15
27626-PL5-000
Valve b
|
27626-PL5-000 |
— | ||
|
16
|
16
27627-PS5-000
Spring b
|
27627-PS5-000 |
— | ||
|
17
|
17
27645-PL1-000 CapLOCK UP CONTROL |
27645-PL1-000 |
US $3.78 |
||
|
18
|
18
27728-PF4-000 CapREVERSE CONTROL VALVE |
27728-PF4-000 |
US $1.54 |
||
|
19
|
19
90004-PC9-000 BoltFLANGE, 6X90 |
90004-PC9-000 |
US $3.36 |
||
|
20
|
20
90089-PC9-000 BoltSTOPPER, 6MM |
90089-PC9-000 |
US $1.75 |
||
|
21
|
21
90701-639-000 Dowel pin8X55 |
90701-639-000 |
US $2.59 |
||
|
22
|
22
91101-PF4-003 Roller3.5X21.8 |
91101-PF4-003 |
from US $1.19 |
||
|
23
|
23
91316-612-000 O-ring27.5X1.7 |
91316-612-000 |
from US $2.66 |
||
|
24
|
24
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
25
|
25
95701-060-650-8 BoltFLANGE, 6X65 |
95701-060-650-8 |
from US $0.81 |
||
|
26
|
26
95701-060-750-8 BoltFLANGE, 6X75 |
95701-060-750-8 |
from US $0.90 |
||
|
27
|
27
95701-060-800-8 BoltFLANGE, 6X80 |
95701-060-800-8 |
from US $0.81 |
