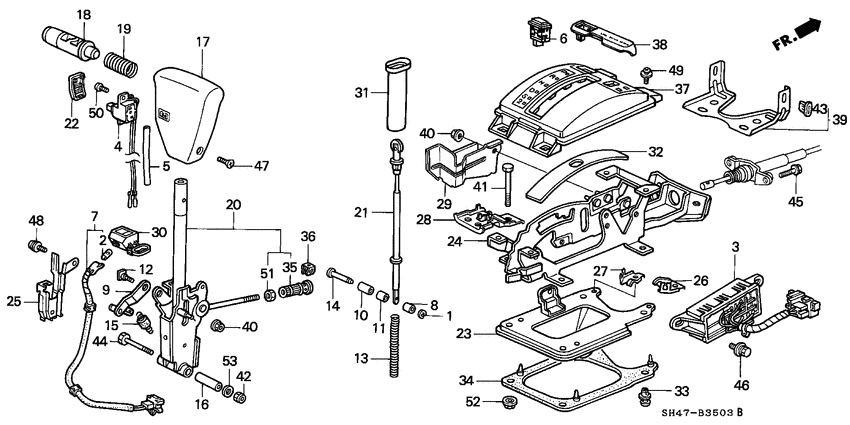

Select lever (4WD) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 1.6I-4WD
- area code
- KX
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30158-700-010 E-clip3MM |
30158-700-010 |
from US $1.14 |
||
|
2
|
2
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
3
|
3
35700-SH7-023
Switch assy
|
35700-SH7-023 |
— | ||
|
4
|
4
35720-SH9-A01
Switch assy
|
35720-SH9-A01 |
— | ||
|
5
|
5
35721-SH7-000
Tube
|
35721-SH7-000 |
— | ||
|
6
|
6
35730-SH7-013
Switch assy
|
35730-SH7-013 |
— | ||
|
7
|
7
37700-SH7-981
Lamp assy.
|
37700-SH7-981 |
— | ||
|
8
|
8
54026-SJ4-980 CollarLOCK PIN |
54026-SJ4-980 |
US $2.59 |
||
|
9
|
9
54110-SH9-980
Stopper comp
|
54110-SH9-980 |
— | ||
|
10
|
10
54113-SJ4-981 CollarLOCK PIN |
54113-SJ4-981 |
US $3.08 |
||
|
11
|
11
54114-SE0-980 CollarLOCK PIN |
54114-SE0-980 |
US $3.08 |
||
|
12
|
12
54115-SJ4-980 BoltSELECTOR STOPPER |
54115-SJ4-980 |
US $3.50 |
||
|
13
|
13
54117-692-980
Spring
|
54117-692-980 |
— | ||
|
14
|
14
54119-SJ4-980 PinLOCK |
54119-SJ4-980 |
US $6.02 |
||
|
15
|
15
54120-SH9-982
Spring assy
|
54120-SH9-982 |
— | ||
|
16
|
16
54123-SE0-980 CollarSELECT LEVER |
54123-SE0-980 |
US $6.44 |
||
|
17
|
17
54131-SH9-A81ZA
Knob comp.
|
54131-SH9-A81ZA |
— | ||
|
18
|
18
54132-SH9-950
Knob
|
54132-SH9-950 |
— | ||
|
19
|
19
54133-SH9-980 SpringPUSH KNOB |
54133-SH9-980 |
US $2.65 |
||
|
20
|
20
54135-SH9-A81
Lever
|
54135-SH9-A81 |
— | ||
|
21
|
21
54136-SH9-981 Rod compLOCK PIN |
54136-SH9-981 |
US $27.52 |
||
|
22
|
22
54139-SH9-A81ZA
Plate
|
54139-SH9-A81ZA |
— | ||
|
23
|
23
54201-SH9-983 BracketSELECT LEVER |
54201-SH9-983 |
US $23.04 |
||
|
24
|
24
54202-SH9-A86 BracketCONTROL |
54202-SH9-A86 |
US $52.10 |
||
|
25
|
25
54204-SH9-980 GuideWIRE HARNESS |
54204-SH9-980 |
US $4.62 |
||
|
26
|
26
54205-SH9-982 ClampWIRE HARNESS |
54205-SH9-982 |
US $5.32 |
||
|
27
|
27
54206-SH9-980 ClampWIRE HARNESS |
54206-SH9-980 |
US $3.92 |
||
|
28
|
28
54207-SH9-980
Clamp c
|
54207-SH9-980 |
— | ||
|
29
|
29
54208-SH9-A80
Guide
|
54208-SH9-A80 |
— | ||
|
30
|
30
54211-SH9-A81
Indicator
|
54211-SH9-A81 |
— | ||
|
31
|
31
54217-SH9-A80
Outer
|
54217-SH9-A80 |
— | ||
|
32
|
32
54222-SH9-980 CoverSELECT LEVER |
54222-SH9-980 |
US $7.98 |
||
|
33
|
33
54225-SH3-972 ClipSELECT LEVER BRACKET |
54225-SH3-972 |
US $2.10 |
||
|
34
|
34
54318-SH9-983 SealCONTROL |
54318-SH9-983 |
US $6.72 |
||
|
35
|
35
54361-SE0-980 PipeCONTROL WIRE ADJUSTING |
54361-SE0-980 |
US $8.68 |
||
|
36
|
36
54363-SE0-980
Pin
|
54363-SE0-980 |
— | ||
|
37
|
37
54710-SH9-A82
Escutcheon comp.
|
54710-SH9-A82 |
— | ||
|
38
|
38
54714-SH9-A80
Base
|
54714-SH9-A80 |
— | ||
|
39
|
39
83454-SH5-951
Bracket
|
83454-SH5-951 |
— | ||
|
40
|
40
90114-SA0-000 NutSELF-LOCK, 6MM |
90114-SA0-000 |
from US $1.70 |
||
|
41
|
41
90117-SH9-980 BoltHEX., 6X28 |
90117-SH9-980 |
US $1.68 |
||
|
42
|
42
90308-SA0-981 NutSELF-LOCK, 6MM |
90308-SA0-981 |
from US $1.82 |
||
|
43
|
43
91641-SH5-000
Grommet
|
91641-SH5-000 |
— | ||
|
44
|
44
92200-06055-0H BoltHEX., 6X55 |
92200-06055-0H |
US $0.59 |
||
|
45
|
45
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
46
|
46
93495-060-120-8 Bolt-washer6X12 |
93495-060-120-8 |
US $0.59 |
||
|
47
|
47
93700-050-080-G ScrewOVAL, 5X8 |
93700-050-080-G |
from US $0.37 |
||
|
48
|
48
93892-040-060-G Screw-washer4X6 |
93892-040-060-G |
US $0.44 |
||
|
49
|
49
93894-050-100-8 Screw-washer5X10 |
93894-050-100-8 |
from US $0.44 |
||
|
50
|
50
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
51
|
51
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
52
|
52
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
53
|
53
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
