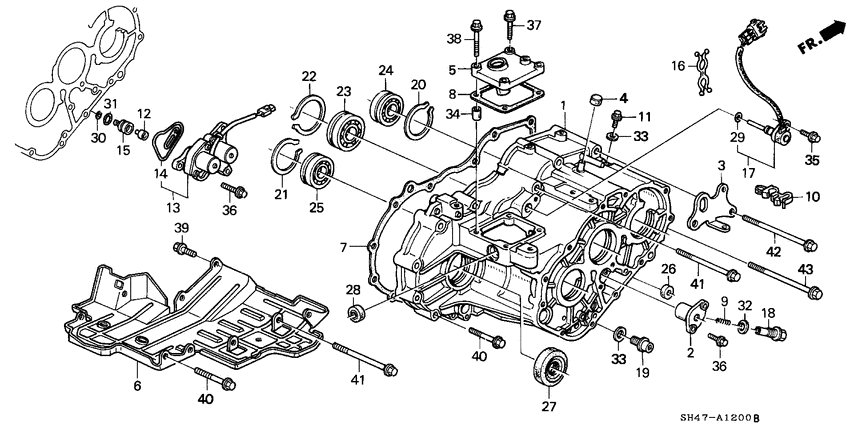

Transmission housing (4WD) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 1.6I-4WD
- area code
- KX
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21210-PS5-902
Case comp.
3001650 - |
21210-PS5-902 |
— | ||
|
1
|
1
21210-PS5-901 Case comp.TRANSMISSION 00000000 - 3001649 |
21210-PS5-901 |
US $544 |
||
|
2
|
2
21215-PF4-010 HolderREVERSE IDLE SHAFT |
21215-PF4-010 |
US $10.22 |
||
|
3
|
3
21232-PS5-000
Hanger
|
21232-PS5-000 |
— | ||
|
4
|
4
21396-PS5-000 CapBREATHER |
21396-PS5-000 |
US $2.80 |
||
|
5
|
5
21521-PS5-000 CoverCHANGE |
21521-PS5-000 |
US $16.90 |
||
|
6
|
6
21611-PS5-900
Guard
|
21611-PS5-900 |
— | ||
|
7
|
7
21811-PS5-S00
Packing
|
21811-PS5-S00 |
— | ||
|
8
|
8
21814-PS5-S00 PackingCHANGE COVER |
21814-PS5-S00 |
US $4.06 |
||
|
9
|
9
23544-PC9-810
Spring b
|
23544-PC9-810 |
— | ||
|
10
|
10
24365-PS5-901 ClampTHROTTLE CABLE |
24365-PS5-901 |
US $3.01 |
||
|
11
|
11
24519-PN1-000
Bolt
|
24519-PN1-000 |
— | ||
|
12
|
12
27750-PK4-003 FilterSECONDARY BODY |
27750-PK4-003 |
US $6.44 |
||
|
13
|
13
28200-PS5-902
Solenoid assy.
|
28200-PS5-902 |
— | ||
|
14
|
14
28230-PS5-901
Filter assy
|
28230-PS5-901 |
— | ||
|
15
|
15
28241-PS5-900 CollarJOINT |
28241-PS5-900 |
US $6.30 |
||
|
17
|
17
28510-PS5-013
Sensor assy
|
28510-PS5-013 |
— | ||
|
18
|
18
90007-PC9-811 BoltREVERSE HOLDER |
90007-PC9-811 |
US $2.66 |
||
|
19
|
19
90081-PF4-000 BoltPLUG, 14MM |
90081-PF4-000 |
from US $10.08 |
||
|
20
|
20
90603-PB6-000 RingSNAP, 62MM |
90603-PB6-000 |
from US $3.78 |
||
|
21
|
21
90603-PH0-000 RingSNAP, 64MM |
90603-PH0-000 |
US $3.50 |
||
|
22
|
22
90609-PH0-000 RingSNAP, 70MM |
90609-PH0-000 |
US $3.08 |
||
|
23
|
23
91002-PL4-003 BearingRADIAL BALL, 26X70X17 (NTN) |
91002-PL4-003 |
US $14.72 |
||
|
24
|
24
91003-PS5-003 BearingBALL, 24X62X15 |
91003-PS5-003 |
US $11.34 |
||
|
25
|
25
91004-PL4-003 BearingRADIAL BALL, 26X64X16 |
91004-PL4-003 |
US $14 |
||
|
26
|
26
91201-PA9-003 Oil seal9X18X7 (NOK) |
91201-PA9-003 |
US $7 |
||
|
26
|
26
91201-PA9-004 Oil seal9X18X7 (ARAI) |
91201-PA9-004 |
from US $3.33 |
||
|
27
|
27
91206-PC8-003
Oil seal
|
91206-PC8-003 |
— | ||
|
27
|
27
91206-PC8-005 Oil seal40X76X9 (NOK) |
91206-PC8-005 |
from US $16.14 |
||
|
28
|
28
91209-612-000
Oil seal
|
91209-612-000 |
— | ||
| replacement | |||||
|
28
|
28
91209-612-003 Oil seal12X22X7 (ARAI) |
91209-612-003 |
from US $5.03 |
||
|
29
|
29
91307-PK4-003 O-ring12.8X1.9(NOK) |
91307-PK4-003 |
US $1.61 |
||
|
30
|
30
91314-PC9-004 O-ring8.5X1.9 (NOK) |
91314-PC9-004 |
from US $1.48 |
||
|
31
|
31
91345-680-900 O-ring15.8X1.9 |
91345-680-900 |
from US $2.17 |
||
|
32
|
32
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
33
|
33
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
34
|
34
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
35
|
35
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
36
|
36
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
37
|
37
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
38
|
38
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
39
|
39
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
40
|
40
95701-100-550-8 BoltFLANGE, 10X55 |
95701-100-550-8 |
from US $0.89 |
||
|
41
|
41
95701-101-100-8 BoltFLANGE, 10X110 |
95701-101-100-8 |
US $1.63 |
||
|
42
|
42
95701-101-200-8 BoltFLANGE, 10X120 |
95701-101-200-8 |
US $1.63 |
||
|
43
|
43
95701-101-300-8 BoltFLANGE, 10X130 |
95701-101-300-8 |
from US $1.85 |
||
