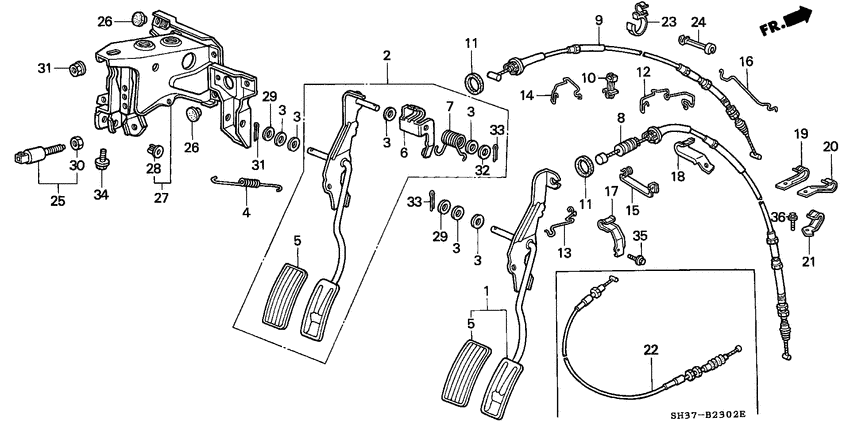

Accelerator pedal (RH) Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6I-VT
- area code
- KE
- right-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SH3-N10
Pedal comp
|
17800-SH3-N10 |
— | ||
|
3
|
3
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
4
|
4
17814-SH3-010
Spring
|
17814-SH3-010 |
— | ||
|
5
|
5
17816-SK7-000 CoverACCELERATOR PEDAL |
17816-SK7-000 |
US $10.51 |
||
|
8
|
8
17910-SH2-E01
Wire
|
17910-SH2-E01 |
— | ||
|
10
|
10
17920-SH3-003
Clip
|
17920-SH3-003 |
— | ||
|
11
|
11
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
12
|
12
17925-SH3-N11
Clamp
|
17925-SH3-N11 |
— | ||
|
17
|
17
17930-SH3-N11
Stay
|
17930-SH3-N11 |
— | ||
|
18
|
18
17931-SH3-N10
Stay
|
17931-SH3-N10 |
— | ||
|
19
|
19
17931-SH3-000
Stay
|
17931-SH3-000 |
— | ||
|
21
|
21
17935-SH3-N20
Clamp
|
17935-SH3-N20 |
— | ||
|
23
|
23
24365-PM0-901 ClampTHROTTLE WIRE |
24365-PM0-901 |
US $3.78 |
||
|
24
|
24
24365-PM4-900
Clamp
|
24365-PM4-900 |
— | ||
|
25
|
25
35350-SE0-A03 Switch assySTOP (TEC) |
35350-SE0-A03 |
US $32.31 |
||
|
26
|
26
46505-SA7-000 PadPEDAL STOPPER |
46505-SA7-000 |
US $3.92 |
||
|
27
|
27
46590-SH3-N10
Bracket
|
46590-SH3-N10 |
— | ||
|
28
|
28
46902-SE0-930
Bush a
|
46902-SE0-930 |
— | ||
|
29
|
29
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
30
|
30
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
31
|
31
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
33
|
33
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
34
|
34
95700-080-140-8 BoltFLANGE, 8X14 |
95700-080-140-8 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
||
|
35
|
35
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
36
|
36
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
