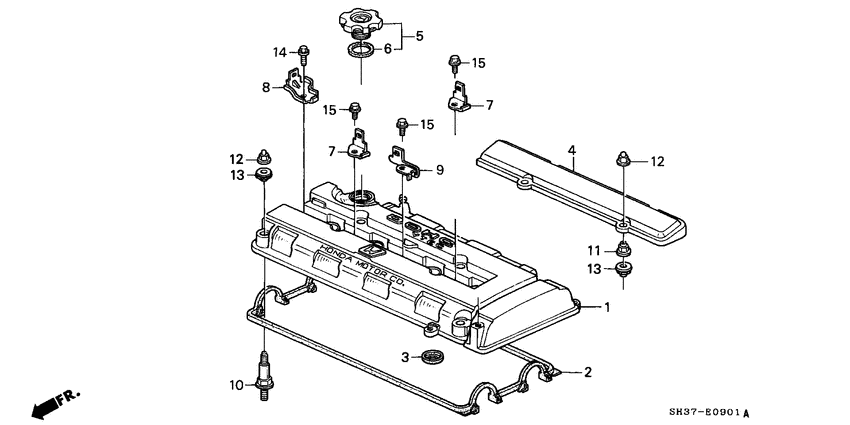

Cylinder head cover (VTEC) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6I-VT
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12310-PR3-000
Cover comp.
|
12310-PR3-000 |
— | ||
|
2
|
2
12341-PR3-000 PackingCYLINDER HEAD COVER |
12341-PR3-000 |
from US $16.63 |
||
|
3
|
3
12342-PG6-000
Packing b
|
12342-PG6-000 |
— | ||
| replacement | |||||
|
3
|
3
12342-PT2-000 Packing bHEAD COVER |
12342-PT2-000 |
from US $5.47 |
||
|
4
|
4
12500-PR3-000
Cover
|
12500-PR3-000 |
— | ||
|
5
|
5
15610-PC6-000 Cap assy.OIL FILLER |
15610-PC6-000 |
from US $11.40 |
||
|
6
|
6
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
7
|
7
32761-PR3-000
Stay a
|
32761-PR3-000 |
— | ||
|
8
|
8
32762-PR3-000
HIGH TENSION CORD CLAMP STAY B
|
32762-PR3-000 |
— | ||
|
9
|
9
32770-PR3-000
Stay c
|
32770-PR3-000 |
— | ||
|
10
|
10
90012-PM7-000 Bolt B, Head Cover |
90012-PM7-000 |
from US $3.82 |
||
|
11
|
11
90212-PR3-000 NutHEAD COVER |
90212-PR3-000 |
US $2.93 |
||
|
12
|
12
90213-PH3-000 NutCAP, 6MM |
90213-PH3-000 |
from US $2.22 |
||
|
13
|
13
90442-PR3-000 WasherHEAD COVER |
90442-PR3-000 |
US $5.86 |
||
|
14
|
14
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
15
|
15
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
