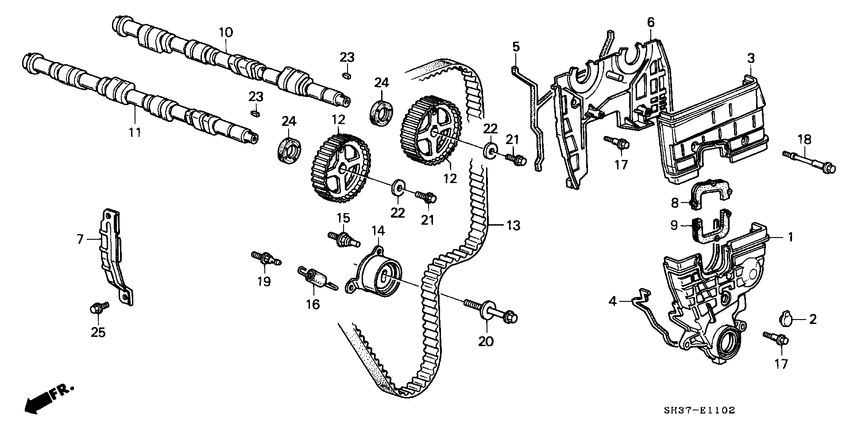

Camshaft/timing belt (DOHC; VTEC) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6I-VT
- area code
- KX
- left-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11810-PR3-000 CoverTIMING BELT LOWER |
11810-PR3-000 |
US $29.82 |
||
|
2
|
2
11812-PJ7-310 GrommetTIMING BELT COVER |
11812-PJ7-310 |
US $3.63 |
||
|
3
|
3
11820-PR3-010 CoverTIMING BELT MIDDLE |
11820-PR3-010 |
US $18.71 |
||
|
4
|
4
11831-PR3-000 Rubber, LOWER SEAL |
11831-PR3-000 |
US $20.40 |
||
|
5
|
5
11832-PR3-000
Rubber
|
11832-PR3-000 |
— | ||
|
6
|
6
11840-PR3-010 CoverTIMING BELT BACK |
11840-PR3-010 |
US $21 |
||
|
7
|
7
11842-PR3-000
Insulator
|
11842-PR3-000 |
— | ||
|
8
|
8
11925-PR3-010
Rubber a
|
11925-PR3-010 |
— | ||
|
9
|
9
11926-PR3-000 Rubber B, ENGINE MOUNTING BRACKET SEAL |
11926-PR3-000 |
US $4.88 |
||
|
10
|
10
14111-PR3-000 CamshaftINTAKE |
14111-PR3-000 |
US $518.40 |
||
|
11
|
11
14121-PR3-000 CamshaftEX. |
14121-PR3-000 |
US $518.40 |
||
|
12
|
12
14211-PR3-003
Pulley
|
14211-PR3-003 |
— | ||
|
13
|
13
14400-PR3-004
Belt
|
14400-PR3-004 |
— | ||
|
14
|
14
14510-PR3-004
Tensioner comp
|
14510-PR3-004 |
— | ||
|
14
|
14
14510-PR3-003
Tensioner comp
|
14510-PR3-003 |
— | ||
|
15
|
15
14513-PK1-000
Bolt
|
14513-PK1-000 |
— | ||
|
16
|
16
14516-PR3-000
Spring comp
|
14516-PR3-000 |
— | ||
|
17
|
17
90007-679-000 Bolt aTIMING BELT COVER |
90007-679-000 |
from US $2.22 |
||
|
18
|
18
90010-PR3-000 BoltTIMING BELT COVER |
90010-PR3-000 |
US $4.14 |
||
|
19
|
19
90012-PH3-004 BoltTIMING BELT ADJUSTER SPRING (NAGOYA RASHI) |
90012-PH3-004 |
from US $3.92 |
||
|
20
|
20
90026-PR3-003 BoltTENSIONER |
90026-PR3-003 |
from US $5.70 |
||
|
21
|
21
90031-PR3-003
Bolt
|
90031-PR3-003 |
— | ||
|
22
|
22
90401-PN4-000
Washer
|
90401-PN4-000 |
— | ||
|
23
|
23
90741-657-000 Key25.4X13 |
90741-657-000 |
from US $4.46 |
||
|
24
|
24
91213-PR3-004 Oil seal29X43X8 (ARAI) |
91213-PR3-004 |
from US $8.14 |
||
|
24
|
24
91213-PR3-003
Oil seal
|
91213-PR3-003 |
— | ||
|
25
|
25
95701-100-160-8 BoltFLANGE, 10X16 |
95701-100-160-8 |
from US $0.74 |
