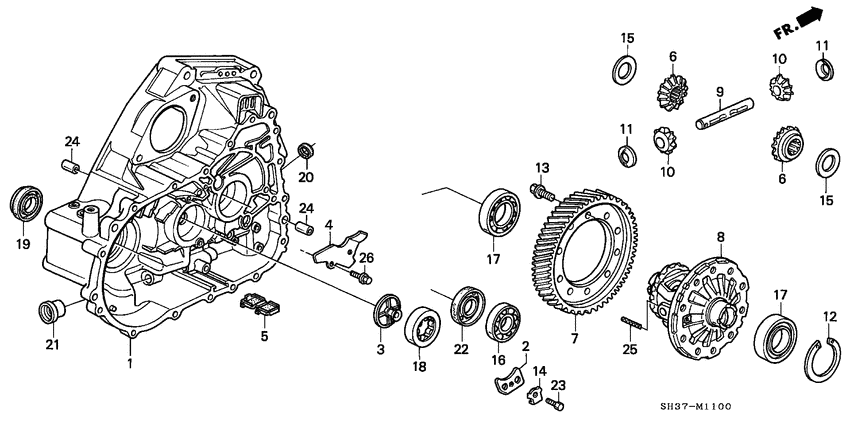

Clutch housing (2) Diagram Honda CIVIC
- Year
- 1991
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6I-VT
- area code
- KX
- left-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-PS1-000
Case comp.
|
21000-PS1-000 |
— | ||
|
2
|
2
21101-PS1-000 PlateNEEDLE SET |
21101-PS1-000 |
US $5.74 |
||
|
3
|
3
21103-PS1-000
Plate c
|
21103-PS1-000 |
— | ||
|
4
|
4
21106-PS1-000 PlateOIL CHAMBER |
21106-PS1-000 |
US $5.46 |
||
|
5
|
5
21120-PG2-003 MagnetTRANSMISSION |
21120-PG2-003 |
US $6.02 |
||
|
6
|
6
41221-PC8-030 GearDRIVE PINION |
41221-PC8-030 |
US $46.46 |
||
|
7
|
7
41233-PY1-E00
Gear
|
41233-PY1-E00 |
— | ||
|
8
|
8
41310-PS1-000
Case comp.
|
41310-PS1-000 |
— | ||
|
9
|
9
41321-PS1-T00
Shaft
|
41321-PS1-T00 |
— | ||
|
10
|
10
41341-PC8-020 GearDIFFERENTIAL PINION |
41341-PC8-020 |
US $47.23 |
||
|
11
|
11
41356-PC8-000 Washer fDIFFERENTIAL PINION (0.85MM) |
41356-PC8-000 |
US $8.60 |
||
|
11
|
11
41351-689-000 Washer aDIFFERENTIAL PINION (0.7MM) |
41351-689-000 |
US $8.70 |
||
|
11
|
11
41353-689-000
Washer c
|
41353-689-000 |
— | ||
|
11
|
11
41355-PC8-000 Washer eDIFFERENTIAL PINION (0.75MM) |
41355-PC8-000 |
US $8.60 |
||
|
11
|
11
41357-PC8-000 Washer gDIFFERENTIAL PINION (0.95MM) |
41357-PC8-000 |
US $8.60 |
||
|
11
|
11
41352-689-000
Washer b
|
41352-689-000 |
— | ||
|
11
|
11
41354-689-000
Washer d
|
41354-689-000 |
— | ||
|
12
|
12
41444-PL3-B00
Shim d
|
41444-PL3-B00 |
— | ||
|
12
|
12
41456-PL3-B00
Shim r
|
41456-PL3-B00 |
— | ||
|
12
|
12
41451-PL3-B00
Shim l
|
41451-PL3-B00 |
— | ||
|
12
|
12
41446-PL3-B00
Shim f
|
41446-PL3-B00 |
— | ||
|
12
|
12
41441-PL3-B00
Shim a
|
41441-PL3-B00 |
— | ||
|
12
|
12
41453-PL3-B00
Shim n
|
41453-PL3-B00 |
— | ||
|
12
|
12
41448-PL3-B00
Shim h
|
41448-PL3-B00 |
— | ||
|
12
|
12
41443-PL3-B00
Shim c
|
41443-PL3-B00 |
— | ||
|
12
|
12
41455-PL3-B00
Shim q
|
41455-PL3-B00 |
— | ||
|
12
|
12
41450-PL3-B00
Shim k
|
41450-PL3-B00 |
— | ||
|
12
|
12
41445-PL3-B00
Shim e
|
41445-PL3-B00 |
— | ||
|
12
|
12
41457-PL3-B00
Shim s
|
41457-PL3-B00 |
— | ||
|
12
|
12
41452-PL3-B00
Shim m
|
41452-PL3-B00 |
— | ||
|
12
|
12
41447-PL3-B00
Shim g
|
41447-PL3-B00 |
— | ||
|
12
|
12
41442-PL3-B00
Shim b
|
41442-PL3-B00 |
— | ||
|
12
|
12
41454-PL3-B00
Shim p
|
41454-PL3-B00 |
— | ||
|
12
|
12
41449-PL3-B00
Shim j
|
41449-PL3-B00 |
— | ||
|
13
|
13
90017-689-000 BoltSPECIAL, 10MM |
90017-689-000 |
US $3.89 |
||
|
14
|
14
90406-PS1-000
Washer
|
90406-PS1-000 |
— | ||
|
15
|
15
90425-680-900
Washer
|
90425-680-900 |
— | ||
|
16
|
16
91002-PS1-003 BearingBALL, 28X60X15 |
91002-PS1-003 |
US $14.96 |
||
|
17
|
17
91005-PS1-003 BearingSEALED BALL, 6208C (NTN) |
91005-PS1-003 |
US $20.71 |
||
|
18
|
18
91101-PG1-008 BearingNEEDLE, 33X60X20 (TOYO) |
91101-PG1-008 |
US $15.78 |
||
|
19
|
19
91205-PL3-B02 Oil seal40X56X8(NOK) |
91205-PL3-B02 |
US $10.08 |
||
|
19
|
19
91205-PL3-B01 Oil seal40X56X8(ARAI) |
91205-PL3-B01 |
from US $5.17 |
||
|
20
|
20
91208-PG1-003 Dust seal18X23X4 (ARAI) |
91208-PG1-003 |
US $9.64 |
||
| replacement | |||||
|
20
|
20
91208-PG1-005 Dust seal18X23X4 (NOK) |
91208-PG1-005 |
from US $3.03 |
||
|
20
|
20
91208-PG1-005 Dust seal18X23X4 (NOK) |
91208-PG1-005 |
from US $3.03 |
||
|
21
|
21
91215-689-013 Oil seal14X25X16 |
91215-689-013 |
from US $8.78 |
||
|
22
|
22
91216-PH8-005 Oil seal28X41X7 (NOK) |
91216-PH8-005 |
from US $9.80 |
||
|
22
|
22
91216-PH8-003 Oil seal28X41X7 (ARAI) |
91216-PH8-003 |
US $9.32 |
||
| replacement | |||||
|
22
|
22
91216-PH8-005 Oil seal28X41X7 (NOK) |
91216-PH8-005 |
from US $9.80 |
||
|
23
|
23
92201-08016-0H BoltHEX., 8X16 |
92201-08016-0H |
US $0.52 |
||
|
24
|
24
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
25
|
25
94305-40282 PinSPRING, 4X28 |
94305-40282 |
from US $0.89 |
||
|
26
|
26
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
