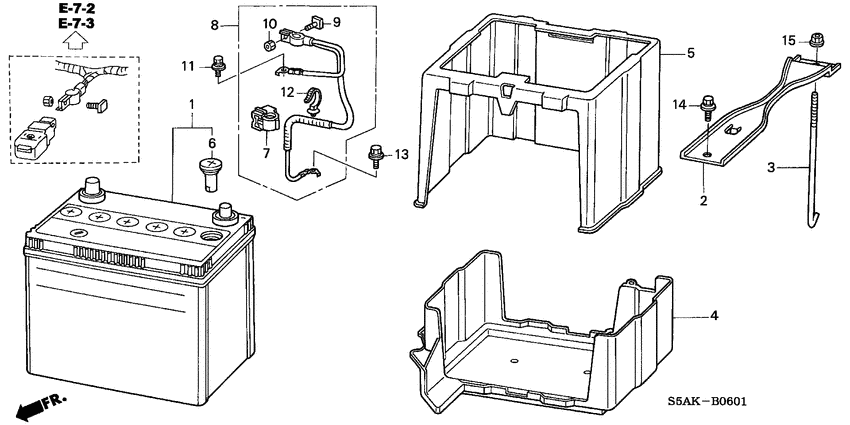

Battery (2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSHD58
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0IVT
- abs
- +
- area code
- PH
- left-hand drive
- +
- air conditioner (auto)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-S9A-K02
Battery
|
31500-S9A-K02 |
— | ||
|
2
|
2
31512-S5A-000 PlateBATTERY SETTING |
31512-S5A-000 |
US $13.84 |
||
|
3
|
3
31513-S5T-000 BoltBATTERY SETTING (210MM) |
31513-S5T-000 |
US $5.21 |
||
|
4
|
4
31521-S6M-000 BoxBATTERY |
31521-S6M-000 |
US $13.58 |
||
|
5
|
5
31531-S5A-000 CoverBATTERY |
31531-S5A-000 |
from US $6.71 |
||
|
6
|
6
31542-S9A-K02
Plug
|
31542-S9A-K02 |
— | ||
|
7
|
7
32115-P64-003 HolderCORRUGATED (DARK BLUE) (10MM) |
32115-P64-003 |
US $2.38 |
||
|
8
|
8
32600-S5G-T00
Cable assy
|
32600-S5G-T00 |
— | ||
|
9
|
9
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
10
|
10
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
11
|
11
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
12
|
12
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
13
|
13
92101-06008-0H
Bolt
|
92101-06008-0H |
— | ||
|
14
|
14
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
15
|
15
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
