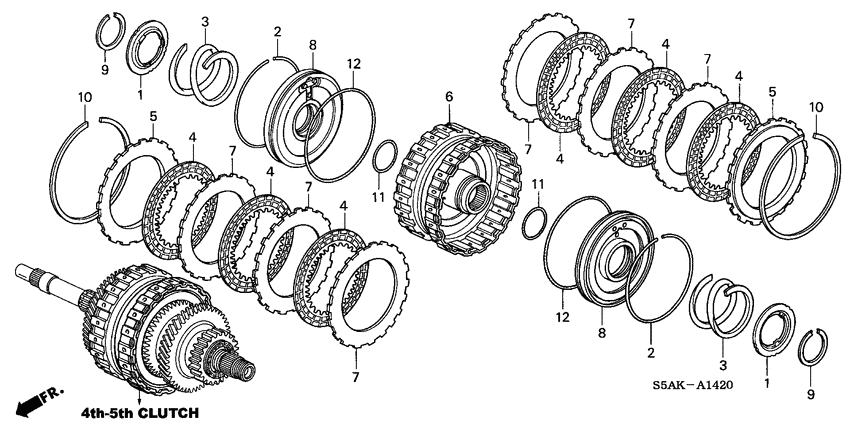

Clutch (4TH-5TH; 2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSHD58
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0IVT
- abs
- +
- area code
- PH
- left-hand drive
- +
- air conditioner (auto)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22533-PX4-010 SeatRETURN SPRING |
22533-PX4-010 |
US $2.73 |
||
|
2
|
2
22536-PRP-013
Spring
|
22536-PRP-013 |
— | ||
|
3
|
3
22541-PX4-004
Spring
|
22541-PX4-004 |
— | ||
|
3
|
3
22541-P0Y-005
Spring
|
22541-P0Y-005 |
— | ||
|
4
|
4
22546-PRP-901 DiskCLUTCH 00000000 - 2002272 |
22546-PRP-901 |
US $22.40 |
||
|
4
|
4
22546-PPV-A01 DiskCLUTCH 2002273 - |
22546-PPV-A01 |
US $19.33 |
||
|
5
|
5
22588-PRP-901 PlateCLUTCH END (18) (3.7MM) 00000000 - 2002272 |
22588-PRP-901 |
US $17.79 |
||
|
5
|
5
22585-RCL-003 PlateCLUTCH END (5) (2.5MM) 2002273 - |
22585-RCL-003 |
US $18.56 |
||
|
5
|
5
22583-PRP-901 PlateCLUTCH END (13) (3.2MM) 00000000 - 2002272 |
22583-PRP-901 |
US $17.66 |
||
|
5
|
5
22589-PRP-901 PlateCLUTCH END (19) (3.8MM) 00000000 - 2002272 |
22589-PRP-901 |
US $17.79 |
||
|
5
|
5
22586-RCL-003 PlateCLUTCH END (6) (2.6MM) 2002273 - |
22586-RCL-003 |
US $18.56 |
||
|
5
|
5
22584-PRP-901 PlateCLUTCH END (14) (3.3MM) 00000000 - 2002272 |
22584-PRP-901 |
US $17.79 |
||
|
5
|
5
22581-RCL-003 PlateCLUTCH END (1) (2.1MM) 2002273 - |
22581-RCL-003 |
US $18.56 |
||
|
5
|
5
22587-RCL-003 PlateCLUTCH END (7) (2.7MM) 2002273 - |
22587-RCL-003 |
US $18.56 |
||
|
5
|
5
22585-PRP-901 PlateCLUTCH END (15) (3.4MM) 00000000 - 2002272 |
22585-PRP-901 |
US $19.58 |
||
|
5
|
5
22582-RCL-003 PlateCLUTCH END (2) (2.2MM) 2002273 - |
22582-RCL-003 |
US $18.56 |
||
|
5
|
5
22588-RCL-003 PlateCLUTCH END (8) (2.8MM) 2002273 - |
22588-RCL-003 |
US $18.56 |
||
|
5
|
5
22586-PRP-901 PlateCLUTCH END (16) (3.5MM) 00000000 - 2002272 |
22586-PRP-901 |
US $17.79 |
||
|
5
|
5
22583-RCL-003 PlateCLUTCH END (3) (2.3MM) 2002273 - |
22583-RCL-003 |
US $18.56 |
||
|
5
|
5
22581-PRP-901 PlateCLUTCH END (11) (3.0MM) 00000000 - 2002272 |
22581-PRP-901 |
US $17.79 |
||
|
5
|
5
22589-RCL-003 PlateCLUTCH END (9) (2.9MM) 2002273 - |
22589-RCL-003 |
US $18.56 |
||
|
5
|
5
22587-PRP-901 PlateCLUTCH END (17) (3.6MM) 00000000 - 2002272 |
22587-PRP-901 |
US $17.79 |
||
|
5
|
5
22584-RCL-003 PlateCLUTCH END (4) (2.4MM) 2002273 - |
22584-RCL-003 |
US $18.56 |
||
|
5
|
5
22582-PRP-901 PlateCLUTCH END (12) (3.1MM) 00000000 - 2002272 |
22582-PRP-901 |
US $19.58 |
||
|
6
|
6
22651-RCL-013 Guide compCLUTCH |
22651-RCL-013 |
US $300.80 |
||
|
7
|
7
22653-RCL-003 PlateCLUTCH WAVE (2.3MM) 2002273 - |
22653-RCL-003 |
US $9.24 |
||
|
7
|
7
22653-PRP-901 PlateCLUTCH WAVE (2.0MM) 00000000 - 2002272 |
22653-PRP-901 |
US $10.92 |
||
|
8
|
8
22680-RCL-003 Piston compCLUTCH 00000000 - 3000001 |
22680-RCL-003 |
US $67.84 |
||
|
8
|
8
22680-RCR-901 Piston compCLUTCH 3000002 - |
22680-RCR-901 |
US $61.82 |
||
|
9
|
9
90603-PX4-000 CirclipEXTERNAL, 47MM |
90603-PX4-000 |
US $1.40 |
||
|
10
|
10
90605-P7T-003 RingSNAP, 133MM |
90605-P7T-003 |
US $3.08 |
||
|
11
|
11
91302-PX4-004 O-ring46.8X2.2 (NOK) |
91302-PX4-004 |
from US $3.26 |
||
|
12
|
12
91303-PX4-004 O-ring114X2.2 (NOK) |
91303-PX4-004 |
from US $4.34 |
