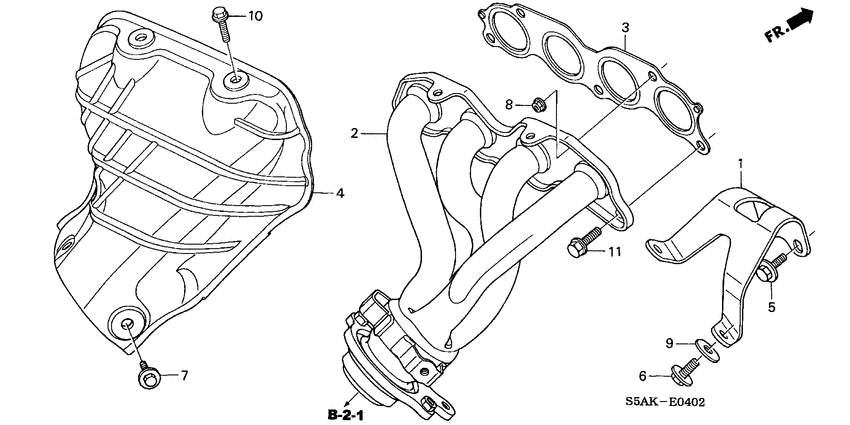

Exhaust manifold (2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSHD58
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0IVT
- abs
- +
- area code
- PH
- left-hand drive
- +
- air conditioner (auto)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11942-PNA-000
Stay
|
11942-PNA-000 |
— | ||
|
2
|
2
18100-PND-000
Manifold comp
|
18100-PND-000 |
— | ||
|
3
|
3
18115-PNC-004 GasketEX. MANIFOLD |
18115-PNC-004 |
US $14.85 |
||
|
4
|
4
18120-PND-A00 Cover comp.EX. MANIFOLD |
18120-PND-A00 |
US $46.85 |
||
|
5
|
5
90005-P0A-000 Bolt-washer10X22 |
90005-P0A-000 |
US $2.38 |
||
|
6
|
6
90010-PE2-900 BoltSPECIAL, 10X22 |
90010-PE2-900 |
US $3.02 |
||
|
7
|
7
90015-PT0-J00 Bolt-washer8X14 |
90015-PT0-J00 |
US $1.70 |
||
|
8
|
8
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
9
|
9
90451-PE2-000 WasherSPECIAL, 11X28 |
90451-PE2-000 |
US $12.39 |
||
|
10
|
10
95701-080-220-4 BoltFLANGE, 8X22 |
95701-080-220-4 |
US $0.81 |
||
|
11
|
11
95701-100-300-8 BoltFLANGE, 10X30 |
95701-100-300-8 |
from US $0.81 |
