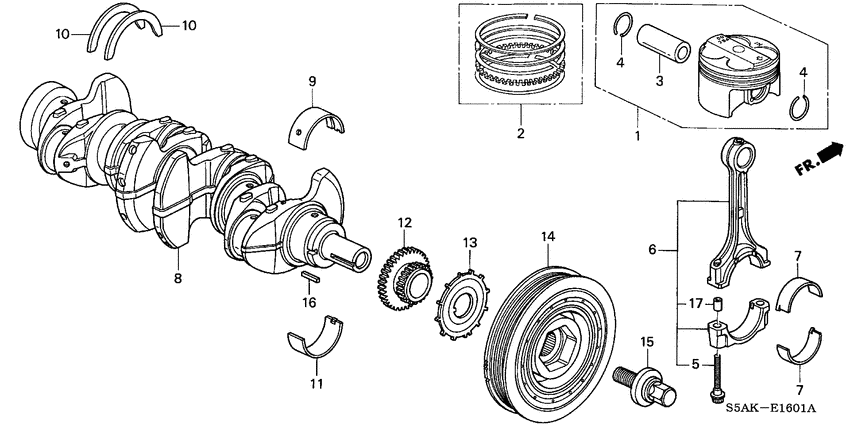

Piston/crankshaft (2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSHD58
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0IVT
- abs
- +
- area code
- PH
- left-hand drive
- +
- air conditioner (auto)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13010-PNC-000
Piston set a
|
13010-PNC-000 |
— | ||
|
1
|
1
13020-PNC-000
Piston set b
|
13020-PNC-000 |
— | ||
|
1
|
1
13030-PNC-000
Piston set
|
13030-PNC-000 |
— | ||
|
2
|
2
13011-PNF-G01 Ring setPISTON(STD.)(RIKEN) |
13011-PNF-G01 |
US $42.50 |
||
|
2
|
2
13021-PNF-G01
Ring set
|
13021-PNF-G01 |
— | ||
|
3
|
3
13111-PNA-000
Pin
|
13111-PNA-000 |
— | ||
| replacement | |||||
|
3
|
3
13111-PNA-010 PinPISTON |
13111-PNA-010 |
from US $11.35 |
||
|
4
|
4
13115-P5A-000 ClipPISTON PIN |
13115-P5A-000 |
from US $2.07 |
||
|
5
|
5
13204-P8A-A01 BoltCONNECTING ROD |
13204-P8A-A01 |
from US $3.58 |
||
|
6
|
6
13210-PNA-000 Rod compCONNECTING |
13210-PNA-000 |
US $107.52 |
||
|
7
|
7
13215-PAH-T01 Bearing eCONNECTING ROD (YELLOW)(DAIDO) |
13215-PAH-T01 |
from US $11.69 |
||
| replacement | |||||
|
7
|
7
13215-PAA-A01
Bearing e
|
13215-PAA-A01 |
— | ||
|
7
|
7
13212-PAH-T01 Bearing bCONNECTING ROD (BLACK)(DAIDO) |
13212-PAH-T01 |
from US $14.46 |
||
|
7
|
7
13214-PAH-T01 Bearing dCONNECTING ROD (GREEN)(DAIDO) |
13214-PAH-T01 |
from US $11.06 |
||
|
7
|
7
13216-PAH-T01 Bearing fCONNECTING ROD (PINK)(DAIDO) |
13216-PAH-T01 |
from US $11.69 |
||
|
7
|
7
13211-PAH-T01 BEARING ACONNECTING ROD (BLUE)(DAIDO) |
13211-PAH-T01 |
from US $11.06 |
||
|
7
|
7
13213-PAH-T01 Bearing cCONNECTING ROD (BROWN)(DAIDO) |
13213-PAH-T01 |
from US $11.69 |
||
|
8
|
8
13310-PNA-000 Crankshaft comp. |
13310-PNA-000 |
US $933.12 |
||
|
9
|
9
13325-PNJ-T01
Bearing e
|
13325-PNJ-T01 |
— | ||
|
9
|
9
13326-PNJ-T01
Bearing f
|
13326-PNJ-T01 |
— | ||
|
9
|
9
13321-PNJ-T01
BEARING A
|
13321-PNJ-T01 |
— | ||
|
9
|
9
13322-PNJ-T01
Bearing b
|
13322-PNJ-T01 |
— | ||
|
9
|
9
13323-PNJ-T01
Bearing c
|
13323-PNJ-T01 |
— | ||
|
9
|
9
13324-PNJ-T01
Bearing d
|
13324-PNJ-T01 |
— | ||
|
10
|
10
13331-PNA-004 WasherTHRUST(TAIHO) |
13331-PNA-004 |
from US $7.10 |
||
|
11
|
11
13346-PNJ-T01
Bearing f
|
13346-PNJ-T01 |
— | ||
|
11
|
11
13341-PNJ-T01
BEARING A
|
13341-PNJ-T01 |
— | ||
|
11
|
11
13342-PNJ-T01
Bearing b
|
13342-PNJ-T01 |
— | ||
|
11
|
11
13343-PNJ-T01
Bearing c
|
13343-PNJ-T01 |
— | ||
|
11
|
11
13344-PNJ-T01
Bearing d
|
13344-PNJ-T01 |
— | ||
|
11
|
11
13345-PNJ-T01
Bearing e
|
13345-PNJ-T01 |
— | ||
|
12
|
12
13620-RAA-A02 Sprocket compCHAIN DRIVE |
13620-RAA-A02 |
from US $70.72 |
||
|
13
|
13
13622-PNA-003 PlateCRANK PULSER |
13622-PNA-003 |
from US $9.77 |
||
|
14
|
14
13810-PNA-003 Pulley compCRANKSHAFT |
13810-PNA-003 |
US $120.96 |
||
|
15
|
15
90017-PCX-003
Bolt-washer
|
90017-PCX-003 |
— | ||
| replacement | |||||
|
15
|
15
90017-PCX-013 Bolt-washer16X49 |
90017-PCX-013 |
from US $11.54 |
||
|
16
|
16
90704-PNA-000 Key4.5X21 |
90704-PNA-000 |
from US $2.17 |
||
|
17
|
17
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
||
