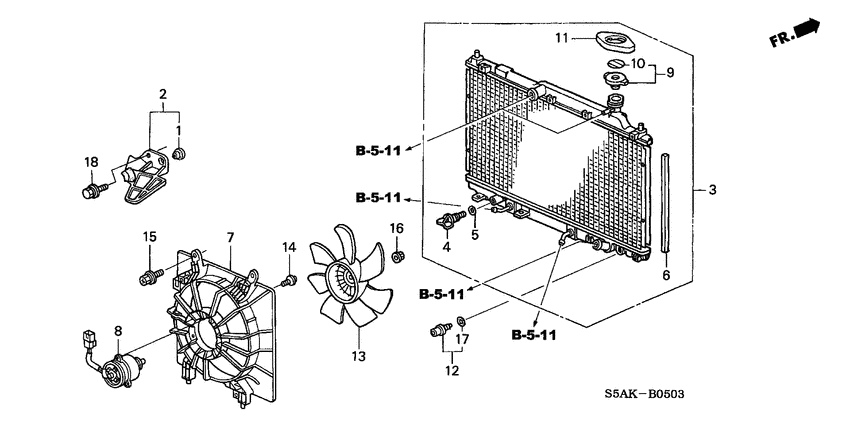

Radiator (DENSO; 2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSHD58
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0IVT
- abs
- +
- area code
- PH
- left-hand drive
- +
- air conditioner (auto)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17213-P8A-A00 RubberINTAKE MANIFOLD COVER MOUNTING |
17213-P8A-A00 |
from US $1.85 |
||
|
2
|
2
17254-PRA-G00 Cover assy.AIR INTAKE |
17254-PRA-G00 |
US $9.94 |
||
|
3
|
3
19010-RMS-P51
Radiator comp
|
19010-RMS-P51 |
— | ||
|
4
|
4
19011-PH1-621 BoltDRAIN (DENSO) |
19011-PH1-621 |
from US $5.91 |
||
|
5
|
5
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
from US $1.85 |
||
|
6
|
6
19013-PCA-003 SealDENSO |
19013-PCA-003 |
US $9.94 |
||
|
7
|
7
19015-PNN-901
Shroud comp
|
19015-PNN-901 |
— | ||
|
8
|
8
19030-PNN-901 MotorCOOLING FAN |
19030-PNN-901 |
US $241.92 |
||
|
9
|
9
19045-PAA-A01 Cap comp.RADIATOR (DENSO) |
19045-PAA-A01 |
from US $17.50 |
||
|
10
|
10
19046-PAA-A00 LabelRADIATOR CAP |
19046-PAA-A00 |
from US $1.55 |
||
|
11
|
11
19047-PLC-003 CoverRADIATOR CAP (DENSO) |
19047-PLC-003 |
US $5.86 |
||
|
12
|
12
37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)(NIPPON THERMOSTAT) |
37760-P00-003 |
from US $43.66 |
||
|
13
|
13
38611-RBB-003 FanCOOLING |
38611-RBB-003 |
US $33.92 |
||
|
14
|
14
90041-P3G-003 Screw-washer5X11 |
90041-P3G-003 |
US $1.41 |
||
|
15
|
15
90042-PAA-A01 Bolt-washer6X16 (DENSO) |
90042-PAA-A01 |
US $1.47 |
||
|
16
|
16
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $2.44 |
||
|
17
|
17
91307-PN4-000
O-ring
|
91307-PN4-000 |
— | ||
| replacement | |||||
|
17
|
17
91307-PN3-000 O-ring,17.8x1.4 |
91307-PN3-000 |
from US $1.66 |
||
|
18
|
18
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
