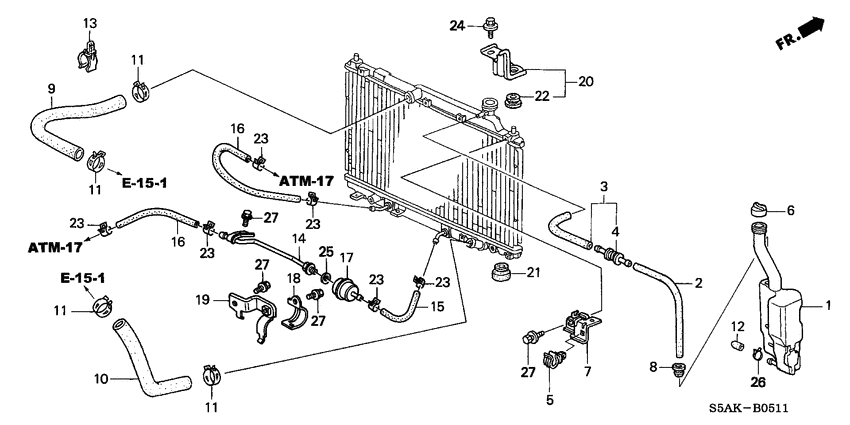

Radiator hose/reserve tan k (2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSHD58
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0IVT
- abs
- +
- area code
- PH
- left-hand drive
- +
- air conditioner (auto)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19101-PRA-000
Tank
|
19101-PRA-000 |
— | ||
|
2
|
2
19103-PRA-000
Tube
|
19103-PRA-000 |
— | ||
|
3
|
3
19104-PRA-000 Hose comp.RESERVE TANK |
19104-PRA-000 |
US $5.14 |
||
|
4
|
4
19105-PLC-000
Joint
|
19105-PLC-000 |
— | ||
|
5
|
5
19108-PM0-003 ClampRESERVE TANK TUBE (BLACK) |
19108-PM0-003 |
US $3.02 |
||
|
6
|
6
19109-PH1-620 CapFILLER |
19109-PH1-620 |
from US $3.83 |
||
|
7
|
7
19113-PRA-000
Stay
|
19113-PRA-000 |
— | ||
|
8
|
8
19117-PND-000 GrommetRESERVE TANK |
19117-PND-000 |
US $3.92 |
||
|
9
|
9
19501-PRA-000 HoseWATER UPPER |
19501-PRA-000 |
US $17.66 |
||
|
10
|
10
19502-PRA-000 HoseWATER LOWER |
19502-PRA-000 |
US $13.16 |
||
|
11
|
11
19511-P30-003
Clip, WATER HOSE (CHUO SPRING)
|
19511-P30-003 |
— | ||
| replacement | |||||
|
11
|
11
19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) |
19511-PH7-003 |
from US $3.94 |
||
|
12
|
12
19515-PH4-600 CapSEALING, 7.3MM |
19515-PH4-600 |
US $3.97 |
||
|
13
|
13
19519-PRB-A01
Clamp
|
19519-PRB-A01 |
— | ||
|
14
|
14
25210-PNN-010 Pipe compATF FILTER |
25210-PNN-010 |
US $23.04 |
||
|
15
|
15
25212-PNN-000 HoseATF |
25212-PNN-000 |
US $14 |
||
|
16
|
16
25212-PV0-N02 HoseATF, 240MM (BRIDGESTONE) |
25212-PV0-N02 |
US $19.07 |
||
|
17
|
17
25430-PZA-003 Filter compATF |
25430-PZA-003 |
US $34.82 |
||
|
18
|
18
25431-PNA-000
Stay a
|
25431-PNA-000 |
— | ||
|
19
|
19
25432-PNN-000
Stay comp. b
|
25432-PNN-000 |
— | ||
|
20
|
20
74171-S5A-000 BracketRADIATOR MOUNT UPPER |
74171-S5A-000 |
US $8.82 |
||
|
21
|
21
74172-SR3-000 CushionRADIATOR MOUNTING LOWER |
74172-SR3-000 |
from US $5.31 |
||
|
22
|
22
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.26 |
||
|
23
|
23
90635-PT0-802
Clip, Oil Pipe
|
90635-PT0-802 |
— | ||
| replacement | |||||
|
23
|
23
90635-RV0-003 CLIP, OIL PIPE |
90635-RV0-003 |
from US $3.32 |
||
|
24
|
24
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
25
|
25
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
26
|
26
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
27
|
27
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
