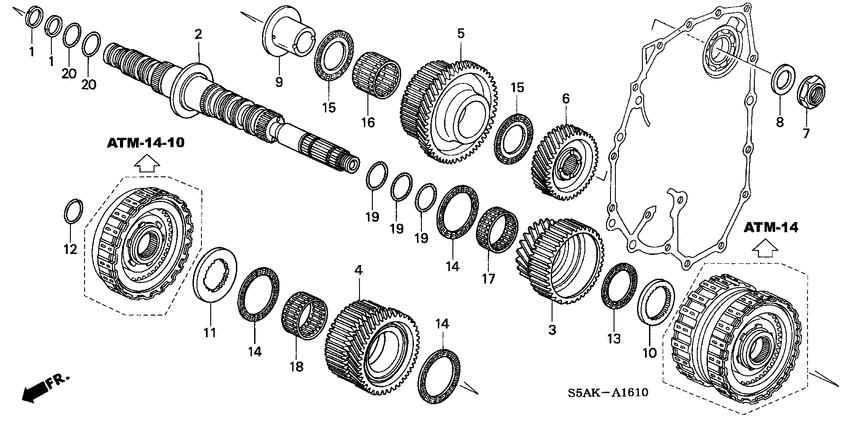

Secondary shaft (2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSHD58
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0IVT
- abs
- +
- area code
- PH
- left-hand drive
- +
- air conditioner (auto)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22814-PRP-003 RingSEALING, 29MM |
22814-PRP-003 |
from US $5.37 |
||
|
2
|
2
23230-PRP-020
Shaft comp.
|
23230-PRP-020 |
— | ||
|
3
|
3
23411-PRP-010 GearSECONDARY SHAFT LOW |
23411-PRP-010 |
US $121.60 |
||
|
4
|
4
23431-PRP-010
Gear
|
23431-PRP-010 |
— | ||
|
5
|
5
23455-PRM-A01 GearSECONDARY SHAFT THIRD |
23455-PRM-A01 |
US $143.36 |
||
|
6
|
6
23521-PRP-010 GearSECONDARY SHAFT IDLE |
23521-PRP-010 |
US $72.96 |
||
|
7
|
7
90201-PRP-000 NutFLANGE, 24MM (LEFT HAND THREAD) |
90201-PRP-000 |
US $3.36 |
||
|
8
|
8
90402-P0Z-000
Washer
|
90402-P0Z-000 |
— | ||
|
9
|
9
90443-PRP-000 Collar27X37X36.5 |
90443-PRP-000 |
US $16.64 |
||
|
10
|
10
90504-PRP-000
Washer
|
90504-PRP-000 |
— | ||
|
10
|
10
90506-PRP-000
Washer
|
90506-PRP-000 |
— | ||
|
10
|
10
90508-PRP-000
Washer
|
90508-PRP-000 |
— | ||
|
10
|
10
90503-PRP-000
Washer
|
90503-PRP-000 |
— | ||
|
10
|
10
90505-PRP-000
Washer
|
90505-PRP-000 |
— | ||
|
10
|
10
90507-PRP-000
Washer
|
90507-PRP-000 |
— | ||
|
11
|
11
90516-PRP-010
Washer
|
90516-PRP-010 |
— | ||
|
11
|
11
90511-PRP-010
Washer
|
90511-PRP-010 |
— | ||
|
11
|
11
90528-PRP-000
Washer
|
90528-PRP-000 |
— | ||
|
11
|
11
90523-PRP-000
Washer
|
90523-PRP-000 |
— | ||
|
11
|
11
90518-PRP-010
Washer
|
90518-PRP-010 |
— | ||
|
11
|
11
90513-PRP-010
Washer
|
90513-PRP-010 |
— | ||
|
11
|
11
90530-PRP-000
Washer
|
90530-PRP-000 |
— | ||
|
11
|
11
90525-PRP-000
Washer
|
90525-PRP-000 |
— | ||
|
11
|
11
90520-PRP-010
Washer
|
90520-PRP-010 |
— | ||
|
11
|
11
90515-PRP-010
Washer
|
90515-PRP-010 |
— | ||
|
11
|
11
90527-PRP-000
Washer
|
90527-PRP-000 |
— | ||
|
11
|
11
90522-PRP-010
Washer
|
90522-PRP-010 |
— | ||
|
11
|
11
90517-PRP-010
Washer
|
90517-PRP-010 |
— | ||
|
11
|
11
90512-PRP-010
Washer
|
90512-PRP-010 |
— | ||
|
11
|
11
90529-PRP-000
Washer
|
90529-PRP-000 |
— | ||
|
11
|
11
90524-PRP-000
Washer
|
90524-PRP-000 |
— | ||
|
11
|
11
90519-PRP-010
Washer
|
90519-PRP-010 |
— | ||
|
11
|
11
90514-PRP-010
Washer
|
90514-PRP-010 |
— | ||
|
11
|
11
90526-PRP-000
Washer
|
90526-PRP-000 |
— | ||
|
11
|
11
90521-PRP-010
Washer
|
90521-PRP-010 |
— | ||
|
12
|
12
90621-PRP-000 CirclipEXTERNAL, 32MM |
90621-PRP-000 |
from US $2.17 |
||
|
13
|
13
91021-PRP-013 NeedleTHRUST, 40X53X2.5 |
91021-PRP-013 |
from US $7 |
||
|
14
|
14
91022-PRP-003 NeedleTHRUST, 46.6X59.5X2.5 |
91022-PRP-003 |
US $7 |
||
|
15
|
15
91027-PRP-003 NeedleTHRUST, 37X57X2.5 |
91027-PRP-003 |
US $7 |
||
|
16
|
16
91028-PRP-003 BearingNEEDLE, 37X43X33.5 (NTN) (ROLLER QTY 24) |
91028-PRP-003 |
US $9.10 |
||
|
17
|
17
91105-PRP-005 BearingNEEDLE, 40X47X16 (NSK) |
91105-PRP-005 |
US $8.40 |
||
|
18
|
18
91106-PRP-025 BearingNEEDLE, 40X46X20.5 (NSK) |
91106-PRP-025 |
US $8.40 |
||
|
19
|
19
91316-PR9-003 O-ring33X1.9 (ARAI) |
91316-PR9-003 |
US $1.54 |
||
|
20
|
20
91326-P4V-003 O-ring26.7X1.9(NOK) |
91326-P4V-003 |
US $2.03 |
