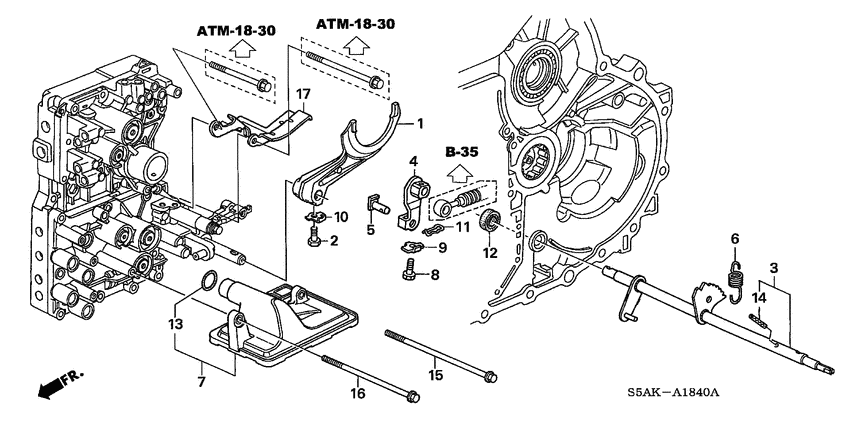

Shift fork/control shaft (2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSHD58
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0IVT
- abs
- +
- area code
- PH
- left-hand drive
- +
- air conditioner (auto)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24111-PRP-000 ForkREVERSE SHIFT |
24111-PRP-000 |
US $31.23 |
||
|
2
|
2
24282-634-000 BoltSHAFT FORK SETTING |
24282-634-000 |
from US $1.40 |
||
|
3
|
3
24410-PPV-000
Shaft comp.
|
24410-PPV-000 |
— | ||
|
4
|
4
24412-PNN-000 Lever compCONTROL |
24412-PNN-000 |
US $11.90 |
||
|
5
|
5
24414-PST-010 PinCONTROL WIRE |
24414-PST-010 |
US $5.32 |
||
|
6
|
6
24634-PRP-060
Spring
|
24634-PRP-060 |
— | ||
|
7
|
7
25420-PRP-003 Strainer assyATF |
25420-PRP-003 |
US $68.97 |
||
|
8
|
8
90001-PA9-000 BoltHEX., 6MM |
90001-PA9-000 |
from US $1.89 |
||
|
9
|
9
90433-P0G-000 WasherLOCK, 6MM |
90433-P0G-000 |
US $2.03 |
||
|
10
|
10
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
11
|
11
90706-PST-000 PinSNAP, 9MM |
90706-PST-000 |
US $2.52 |
||
|
12
|
12
91209-612-003 Oil seal12X22X7 (ARAI) |
91209-612-003 |
from US $5.03 |
||
|
13
|
13
91308-PW4-003 O-ring21.8X1.9 |
91308-PW4-003 |
US $1.47 |
||
|
14
|
14
94305-40162 PinSPRING, 4X16 |
94305-40162 |
from US $0.81 |
||
|
15
|
15
95701-061-050-8 BoltFLANGE, 6X105 |
95701-061-050-8 |
from US $1.18 |
||
|
16
|
16
95701-061-150-8 BoltFLANGE, 6X115 |
95701-061-150-8 |
from US $1.18 |
||
|
17
|
17
25421-RCL-000 PlateBAFFLE 2002273 - |
25421-RCL-000 |
US $5.88 |
