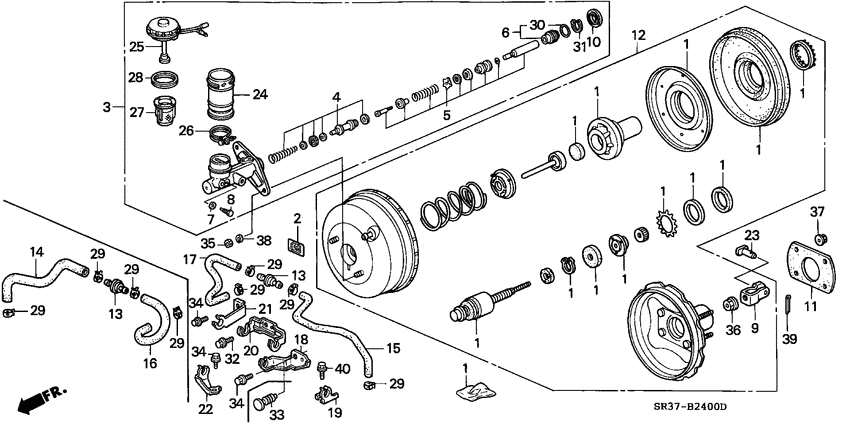

Brake master cylinder/ master power (1) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- EX AUST
- power steering
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06464-SR3-910
Power set
|
06464-SR3-910 |
— | ||
|
2
|
2
46070-SL0-G01 PlateSYMBOL MARK |
46070-SL0-G01 |
US $1.61 |
||
|
3
|
3
46100-SR3-013 Cylinder assy.MASTER |
46100-SR3-013 |
US $321.28 |
||
|
4
|
4
46120-SH3-003 Piston assy.PRIMARY |
46120-SH3-003 |
US $21.76 |
||
|
5
|
5
46122-SH3-003
Piston assy.
|
46122-SH3-003 |
— | ||
|
6
|
6
46135-SF4-003 Guide assyPISTON |
46135-SF4-003 |
US $12.74 |
||
|
7
|
7
46138-SM4-003 Packing |
46138-SM4-003 |
from US $2.66 |
||
|
8
|
8
46139-SM4-013
Bolt
|
46139-SM4-013 |
— | ||
|
9
|
9
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $14.03 |
||
|
10
|
10
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.26 |
||
|
11
|
11
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $4.13 |
||
|
12
|
12
46400-SR3-911
Power assy.
|
46400-SR3-911 |
— | ||
|
13
|
13
46403-SE0-003 Valve comp.CHECK (NISSIN) |
46403-SE0-003 |
US $21.38 |
||
|
14
|
14
46404-SR3-G00
Tube a
|
46404-SR3-G00 |
— | ||
|
16
|
16
46405-SR3-A00
Tube b
|
46405-SR3-A00 |
— | ||
|
20
|
20
46406-SR3-000
Stay
|
46406-SR3-000 |
— | ||
|
23
|
23
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $3.36 |
||
|
24
|
24
46660-SC2-013
Tank
|
46660-SC2-013 |
— | ||
|
25
|
25
46662-SH3-003 Cap comp.RESERVE TANK |
46662-SH3-003 |
US $45.95 |
||
|
26
|
26
46665-ST5-003 BandRESERVE TANK |
46665-ST5-003 |
US $5.88 |
||
|
27
|
27
46666-692-013 FilterMASTER CYLINDER |
46666-692-013 |
US $12.18 |
||
|
28
|
28
46669-692-003 SealRESERVE TANK |
46669-692-003 |
US $6.44 |
||
|
29
|
29
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $2.94 |
||
|
30
|
30
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
31
|
31
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
32
|
32
90139-ST7-000 Bolt-washer6X20 |
90139-ST7-000 |
US $1.82 |
||
|
34
|
34
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
35
|
35
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
35
|
35
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.41 |
||
|
36
|
36
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
37
|
37
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
38
|
38
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.36 |
||
|
39
|
39
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
from US $0.49 |
||
| replacement | |||||
|
39
|
39
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
