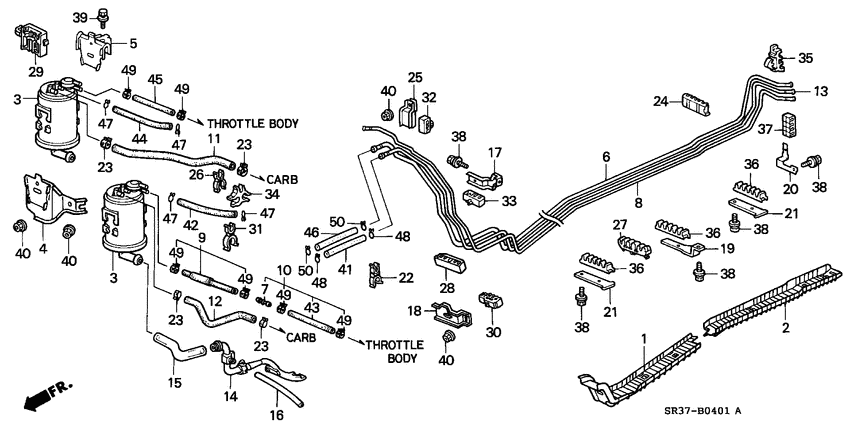

Fuel pipe (CARBURETOR; '94-) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- power steering
- +
- area code
- KF
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16913-SR3-000
Cover
|
16913-SR3-000 |
— | ||
|
2
|
2
16914-SR3-000
Cover
|
16914-SR3-000 |
— | ||
|
3
|
3
17300-SR3-E01
Canister assy
|
17300-SR3-E01 |
— | ||
|
4
|
4
17358-SR3-G01
Bracket
|
17358-SR3-G01 |
— | ||
|
6
|
6
17700-SR3-J00 Pipe compFUEL FEED |
17700-SR3-J00 |
US $58.24 |
||
|
7
|
7
17716-SR3-G00
Joint
|
17716-SR3-G00 |
— | ||
|
8
|
8
17720-SR3-J00
Pipe comp
|
17720-SR3-J00 |
— | ||
|
9
|
9
17724-SR3-G00
Hose assy. b
|
17724-SR3-G00 |
— | ||
|
10
|
10
17725-SR3-G00
Hose assy. a
|
17725-SR3-G00 |
— | ||
|
12
|
12
17736-SR3-G00
Hose
|
17736-SR3-G00 |
— | ||
|
13
|
13
17740-SR3-J00
Pipe comp
|
17740-SR3-J00 |
— | ||
|
14
|
14
17742-SR3-932
Pipe
|
17742-SR3-932 |
— | ||
|
15
|
15
17743-SR3-A30
Tube
|
17743-SR3-A30 |
— | ||
|
16
|
16
17744-SR3-930
Tube
|
17744-SR3-930 |
— | ||
|
17
|
17
17761-SR3-010
Stay a
|
17761-SR3-010 |
— | ||
|
18
|
18
17762-SR3-J00
Stay b
|
17762-SR3-J00 |
— | ||
|
19
|
19
17763-SR3-000
Stay c
|
17763-SR3-000 |
— | ||
|
20
|
20
17764-SR3-J00
Stay d
|
17764-SR3-J00 |
— | ||
|
21
|
21
17765-SM4-000
Stay e
|
17765-SM4-000 |
— | ||
|
22
|
22
36027-P01-G01 ClampTUBE (7.5MM-11.5MM) |
36027-P01-G01 |
US $2.10 |
||
|
23
|
23
90682-SA0-671 ClampCANISTER HOSE |
90682-SA0-671 |
from US $2.96 |
||
|
24
|
24
91590-SR3-J01
Clamp j
|
91590-SR3-J01 |
— | ||
|
25
|
25
91591-SR3-010
Clip A
|
91591-SR3-010 |
— | ||
|
27
|
27
91592-SR3-J01 Clamp hFUEL PIPE |
91592-SR3-J01 |
US $3.15 |
||
|
28
|
28
91593-SR3-J01
Clamp g
|
91593-SR3-J01 |
— | ||
|
30
|
30
91594-SR3-J01
Clamp f
|
91594-SR3-J01 |
— | ||
|
31
|
31
91594-SR3-003
Clamp
|
91594-SR3-003 |
— | ||
|
32
|
32
91595-SR3-003
Clamp a
|
91595-SR3-003 |
— | ||
|
33
|
33
91596-SR3-J01
Clamp b
|
91596-SR3-J01 |
— | ||
|
35
|
35
91597-SR3-003
Clamp c
|
91597-SR3-003 |
— | ||
|
36
|
36
91598-SR3-J01 Clamp dFUEL PIPE |
91598-SR3-J01 |
US $3.15 |
||
|
37
|
37
91599-SR3-J02
Clamp e
|
91599-SR3-J02 |
— | ||
|
38
|
38
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
40
|
40
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
41
|
41
95001-454-805-0
Hose
|
95001-454-805-0 |
— | ||
|
42
|
42
95001-551-306-0 TubeFUEL, 5.5X130 (95001-55001-60M) |
95001-551-306-0 |
US $1.55 |
||
|
43
|
43
95001-552-555-0
Hose
|
95001-552-555-0 |
— | ||
|
46
|
46
95001-755-105-0
Hose
|
95001-755-105-0 |
— | ||
|
47
|
47
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
48
|
48
95002-408-500-4 ClampTUBE(D8.5) |
95002-408-500-4 |
from US $0.74 |
||
|
49
|
49
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
50
|
50
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
