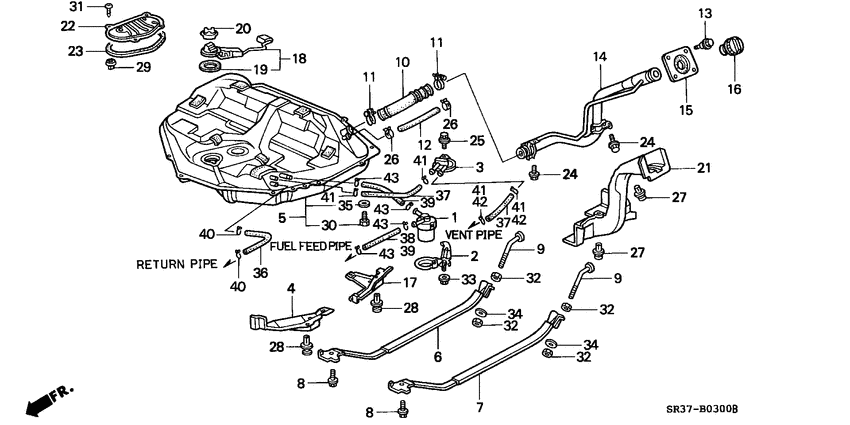

Fuel tank (CARBURETOR) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- power steering
- +
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16900-SR3-004 Strainer comp.FUEL |
16900-SR3-004 |
from US $17.99 |
||
|
2
|
2
16902-SR3-000
Cover
|
16902-SR3-000 |
— | ||
|
3
|
3
17371-SR3-A01
Valve
|
17371-SR3-A01 |
— | ||
|
4
|
4
17372-SR3-010
Cover
|
17372-SR3-010 |
— | ||
|
5
|
5
17500-SR3-G00
Tank comp.
|
17500-SR3-G00 |
— | ||
|
6
|
6
17521-SR3-000
Band assy.
|
17521-SR3-000 |
— | ||
|
7
|
7
17522-SR3-000 Band assy.L. FUEL TANK MOUNTING |
17522-SR3-000 |
US $20.79 |
||
|
8
|
8
17525-SM4-000 Bolt-washer10X35 |
17525-SM4-000 |
from US $1.78 |
||
|
9
|
9
17525-SR3-000
Bolt
|
17525-SR3-000 |
— | ||
| replacement | |||||
|
9
|
9
17525-SR3-305 Bolt |
17525-SR3-305 |
US $4.59 |
||
|
10
|
10
17651-SR3-000
Tube
|
17651-SR3-000 |
— | ||
|
11
|
11
17652-SA5-000 ClipFILLER TUBE |
17652-SA5-000 |
US $5.48 |
||
|
12
|
12
17653-SH7-000
Tube
|
17653-SH7-000 |
— | ||
|
13
|
13
17656-SR3-003
Bolt
|
17656-SR3-003 |
— | ||
|
14
|
14
17660-SR3-A00 Pipe compFUEL FILLER |
17660-SR3-A00 |
US $110.08 |
||
|
15
|
15
17662-SR3-000
Packing
|
17662-SR3-000 |
— | ||
|
16
|
16
17670-SM4-004 Cap comp.FUEL FILLER (TOYODA) |
17670-SM4-004 |
US $25.09 |
||
|
17
|
17
17733-SR3-000
Protector
|
17733-SR3-000 |
— | ||
|
18
|
18
37800-SR3-003
Meter unit
|
37800-SR3-003 |
— | ||
|
18
|
18
37800-SR3-004 Meter unitFUEL (DENSO) |
37800-SR3-004 |
US $54.16 |
||
|
19
|
19
37801-689-000 PackingBASE |
37801-689-000 |
from US $4.37 |
||
|
20
|
20
37802-SD2-000 RetainerFUEL UNIT |
37802-SD2-000 |
from US $4.74 |
||
|
21
|
21
74559-SR3-010
Cover
|
74559-SR3-010 |
— | ||
|
22
|
22
74661-SR3-000
Cap
|
74661-SR3-000 |
— | ||
|
23
|
23
74662-SR3-000
Rubber
|
74662-SR3-000 |
— | ||
|
24
|
24
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
25
|
25
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
26
|
26
90602-SA7-931 ClampFUEL HOSE, 18.5MM |
90602-SA7-931 |
from US $2.66 |
||
|
27
|
27
90657-SA5-003 ClipSIDE APRON MOLDING |
90657-SA5-003 |
from US $1.84 |
||
|
28
|
28
90657-SH3-013 ClipTWO WAY VALVE COVER |
90657-SH3-013 |
US $4.74 |
||
|
29
|
29
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
from US $1.55 |
||
|
30
|
30
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
31
|
31
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
32
|
32
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
32
|
32
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
33
|
33
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
34
|
34
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
35
|
35
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
36
|
36
95001-451-156-0
Tube
|
95001-451-156-0 |
— | ||
|
37
|
37
95001-551-306-0 TubeFUEL, 5.5X130 (95001-55001-60M) |
95001-551-306-0 |
US $1.55 |
||
|
39
|
39
95001-751-106-0
Tube
|
95001-751-106-0 |
— | ||
|
40
|
40
95002-02084 ClipTUBE (B8) |
95002-02084 |
from US $0.44 |
||
|
41
|
41
95002-02104 ClipTUBE (B10) 00000000 - 0S230204 |
95002-02104 |
US $0.52 |
||
|
42
|
42
95002-02104 ClipTUBE (B10) 0S230205 - |
95002-02104 |
US $0.52 |
||
|
43
|
43
95002-02124 ClipTUBE(B12) |
95002-02124 |
from US $0.52 |
||
| replacement | |||||
|
43
|
43
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
