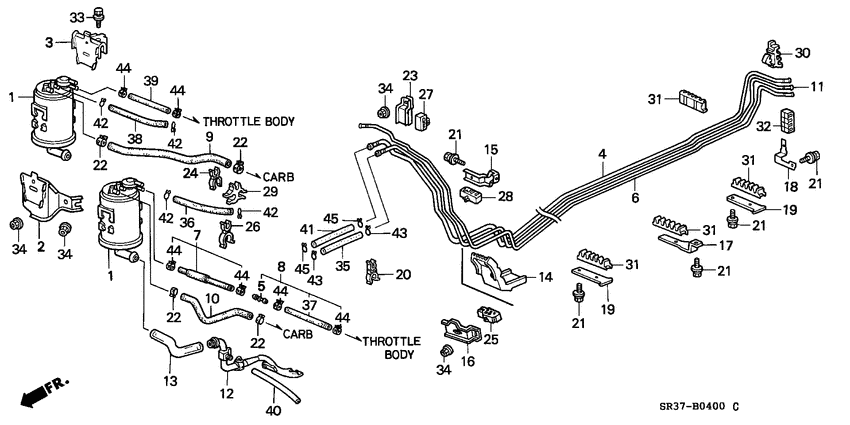

Fuel pipe (CARBURETOR; -'93) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17300-SR3-E01
Canister assy
|
17300-SR3-E01 |
— | ||
|
3
|
3
17358-SR3-000
Bracket
|
17358-SR3-000 |
— | ||
|
4
|
4
17700-SR3-E00
Pipe comp
|
17700-SR3-E00 |
— | ||
|
6
|
6
17720-SR3-E00
Pipe comp
|
17720-SR3-E00 |
— | ||
|
9
|
9
17736-SR3-E00
Hose
|
17736-SR3-E00 |
— | ||
|
11
|
11
17740-SR3-E00
Pipe comp
|
17740-SR3-E00 |
— | ||
|
12
|
12
17742-SR3-003 PipeCANISTER DRAIN JOINT |
17742-SR3-003 |
US $16 |
||
|
13
|
13
17743-SR3-E00
Tube
|
17743-SR3-E00 |
— | ||
|
14
|
14
17752-SR3-003
Protector
00000000 - 0S119009 |
17752-SR3-003 |
— | ||
|
15
|
15
17761-SR3-010
Stay a
|
17761-SR3-010 |
— | ||
|
16
|
16
17762-SR3-010
Stay b
|
17762-SR3-010 |
— | ||
|
17
|
17
17763-SR3-000
Stay c
|
17763-SR3-000 |
— | ||
|
18
|
18
17764-SR3-000
Stay d
|
17764-SR3-000 |
— | ||
|
19
|
19
17765-SM4-000
Stay e
|
17765-SM4-000 |
— | ||
|
21
|
21
90146-SM4-000
Bolt-washer
|
90146-SM4-000 |
— | ||
|
22
|
22
90682-SA0-671 ClampCANISTER HOSE |
90682-SA0-671 |
from US $2.96 |
||
|
23
|
23
91591-SR3-010
Clip A
|
91591-SR3-010 |
— | ||
|
24
|
24
91592-SR3-E01
Clamp
|
91592-SR3-E01 |
— | ||
|
25
|
25
91594-SR3-J01
Clamp f
0S119010 - |
91594-SR3-J01 |
— | ||
|
26
|
26
91594-SR3-003
Clamp
|
91594-SR3-003 |
— | ||
|
27
|
27
91595-SR3-003
Clamp a
|
91595-SR3-003 |
— | ||
|
28
|
28
91596-SR3-003
Clamp b
|
91596-SR3-003 |
— | ||
|
29
|
29
91597-SH3-Y01 ClampVENT TUBE (BLACK) |
91597-SH3-Y01 |
US $2.87 |
||
|
30
|
30
91597-SR3-003
Clamp c
|
91597-SR3-003 |
— | ||
|
31
|
31
91598-SR3-004
Clamp d
|
91598-SR3-004 |
— | ||
|
32
|
32
91599-SR3-003
Clamp e
|
91599-SR3-003 |
— | ||
|
33
|
33
93405-080-160-8 Bolt-washer8X16 |
93405-080-160-8 |
from US $0.74 |
||
|
34
|
34
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
35
|
35
95001-454-805-0
Hose
|
95001-454-805-0 |
— | ||
|
38
|
38
95001-552-906-0
Tube
|
95001-552-906-0 |
— | ||
|
39
|
39
95001-555-705-0
Hose
|
95001-555-705-0 |
— | ||
|
40
|
40
95001-752-606-0
Tube
|
95001-752-606-0 |
— | ||
|
41
|
41
95001-755-105-0
Hose
|
95001-755-105-0 |
— | ||
|
42
|
42
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
43
|
43
95002-408-500-4 ClampTUBE(D8.5) |
95002-408-500-4 |
from US $0.74 |
||
|
44
|
44
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
45
|
45
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
