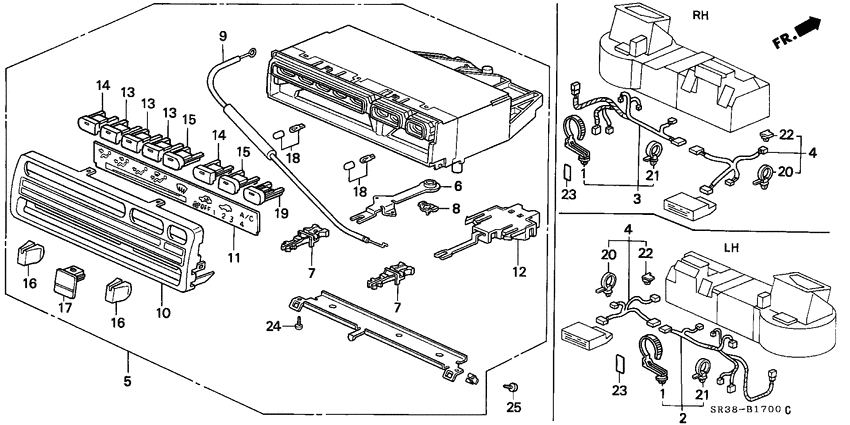

Heater control Diagram Honda CIVIC
- Year
- 1992
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 3
- grade
- EX
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
2
|
2
32157-SR3-A00
Sub cord a
|
32157-SR3-A00 |
— | ||
|
4
|
4
32257-SR3-000
Sub cord b
|
32257-SR3-000 |
— | ||
|
5
|
5
79500-SR3-A01 Control assy.HEATER |
79500-SR3-A01 |
US $258.56 |
||
|
5
|
5
79500-SR3-A51 Control assy.HEATER (AIR CONDITIONER) |
79500-SR3-A51 |
US $258.56 |
||
|
6
|
6
79512-SR3-003
Lever
|
79512-SR3-003 |
— | ||
|
8
|
8
79529-SR3-003
Stopper
|
79529-SR3-003 |
— | ||
|
9
|
9
79542-SR3-A00
Cable
|
79542-SR3-A00 |
— | ||
|
10
|
10
79550-SR3-003 Garnish |
79550-SR3-003 |
US $36.99 |
||
|
11
|
11
79551-SR3-003
Display
|
79551-SR3-003 |
— | ||
|
12
|
12
79570-SR3-003
Switch assy
|
79570-SR3-003 |
— | ||
|
13
|
13
79601-SR3-003
Knob a
|
79601-SR3-003 |
— | ||
|
14
|
14
79602-SR3-003 Knob b |
79602-SR3-003 |
US $3.92 |
||
|
15
|
15
79603-SR3-003
Knob c
|
79603-SR3-003 |
— | ||
|
16
|
16
79604-SR3-003
Knob d
|
79604-SR3-003 |
— | ||
| replacement | |||||
|
16
|
16
79604-SR3-013
Knob d
|
79604-SR3-013 |
— | ||
|
17
|
17
79612-SR3-003 LidAIR CONDITIONER SWITCH |
79612-SR3-003 |
US $7 |
||
|
18
|
18
79629-SR3-003
Bulb assy
|
79629-SR3-003 |
— | ||
|
19
|
19
80411-SR3-003
Knob
|
80411-SR3-003 |
— | ||
|
20
|
20
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
21
|
21
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
22
|
22
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
24
|
24
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
25
|
25
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
