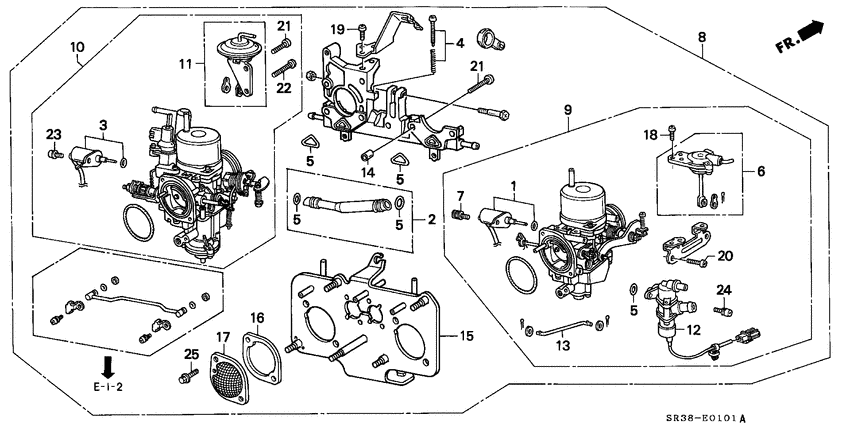

Dual carburetor assy. Diagram Honda CIVIC
- Year
- 1992
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 3
- grade
- GL
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16024-P03-000
Solenoid
|
16024-P03-000 |
— | ||
|
2
|
2
16026-PC7-661
Joint set
|
16026-PC7-661 |
— | ||
|
3
|
3
16036-P03-000
Solenoid
|
16036-P03-000 |
— | ||
|
4
|
4
16038-PC6-005
Screw set
|
16038-PC6-005 |
— | ||
|
5
|
5
16039-PH5-005
Packing set
|
16039-PH5-005 |
— | ||
|
6
|
6
16045-P03-000
Diaphragm assy.
|
16045-P03-000 |
— | ||
|
7
|
7
16080-PC7-661
Screw
|
16080-PC7-661 |
— | ||
|
8
|
8
16100-P03-Q50
Carburetor assy
|
16100-P03-Q50 |
— | ||
|
9
|
9
16101-P03-Q50
Carburetor assy.
|
16101-P03-Q50 |
— | ||
|
10
|
10
16102-P03-Q50
Carburetor assy.
|
16102-P03-Q50 |
— | ||
|
11
|
11
16111-PY0-900
Diaphragm assy.
|
16111-PY0-900 |
— | ||
|
12
|
12
16120-P03-004
Valve assy.
|
16120-P03-004 |
— | ||
|
13
|
13
16145-P03-000
Rod
|
16145-P03-000 |
— | ||
|
14
|
14
16178-463-004
Pin
|
16178-463-004 |
— | ||
|
15
|
15
16410-P03-900
Flange comp
|
16410-P03-900 |
— | ||
|
16
|
16
17265-PC6-000
Flange
|
17265-PC6-000 |
— | ||
|
17
|
17
17267-PK1-010
Funnel comp.
|
17267-PK1-010 |
— | ||
|
18
|
18
93500-050-101-H ScrewPAN, 5X10 |
93500-050-101-H |
from US $0.37 |
||
| replacement | |||||
|
18
|
18
93500-050-100-H ScrewPAN, 5X10 |
93500-050-100-H |
from US $0.37 |
||
|
19
|
19
93500-050-121-H ScrewPAN, 5X12 |
93500-050-121-H |
from US $0.37 |
||
| replacement | |||||
|
19
|
19
93500-050-120-H ScrewPAN, 5X12 |
93500-050-120-H |
from US $0.37 |
||
|
20
|
20
93500-050-141-H ScrewPAN, 5X14 |
93500-050-141-H |
US $0.37 |
||
|
21
|
21
93500-060-251-H ScrewPAN, 6X25 |
93500-060-251-H |
US $0.52 |
||
|
22
|
22
93500-060-351-H ScrewPAN, 6X35 |
93500-060-351-H |
US $0.52 |
||
|
23
|
23
93892-050-101-8 Screw-washer5X10 |
93892-050-101-8 |
from US $0.44 |
||
|
24
|
24
93892-050-141-8 Screw-washer5X14 |
93892-050-141-8 |
US $0.44 |
||
| replacement | |||||
|
24
|
24
93892-050-140-8 Screw-washer5X14 |
93892-050-140-8 |
from US $0.47 |
||
|
25
|
25
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
