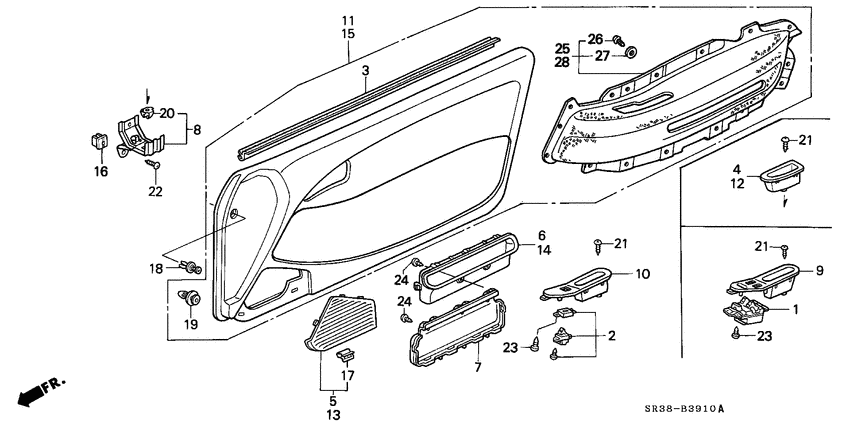

Door lining Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 3
- grade
- 1.5EL
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
72335-SR3-003
Weatherstrip
|
72335-SR3-003 |
— | ||
|
4
|
4
83501-SR3-000ZC
Pocket
|
83501-SR3-000ZC |
— | ||
|
5
|
5
83503-SR3-010ZC
Lid
|
83503-SR3-010ZC |
— | ||
|
8
|
8
83508-SR3-000 Bracket assyPULL POCKET |
83508-SR3-000 |
US $5.88 |
||
|
11
|
11
83533-SR3-G10ZC Lining comp.R. FR. DOOR *2TN193* |
83533-SR3-G10ZC |
US $334.08 |
||
|
12
|
12
83551-SR3-000ZC
Pocket
|
83551-SR3-000ZC |
— | ||
|
13
|
13
83553-SR3-010ZC
Lid
|
83553-SR3-010ZC |
— | ||
|
15
|
15
83583-SR3-G10ZC Lining comp.L. FR. DOOR *2TN193* |
83583-SR3-G10ZC |
US $334.08 |
||
|
16
|
16
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
17
|
17
90678-SK7-003 ClipSPEAKER |
90678-SK7-003 |
US $4.07 |
||
|
18
|
18
91550-SH3-003ZT ClipRR. PANEL LINING *NH167L* |
91550-SH3-003ZT |
US $2.86 |
||
|
19
|
19
91560-SP0-003 ClipDOOR LINING (GRAY) |
91560-SP0-003 |
US $2.07 |
||
| replacement | |||||
|
19
|
19
91560-S84-A01 CLIP, DOOR LINING (NATURAL) |
91560-S84-A01 |
US $2.44 |
||
|
21
|
21
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
22
|
22
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
26
|
26
93903-15210
Screw
|
93903-15210 |
— | ||
|
27
|
27
94103-05000 WasherPLAIN, 5MM |
94103-05000 |
from US $0.37 |
||
