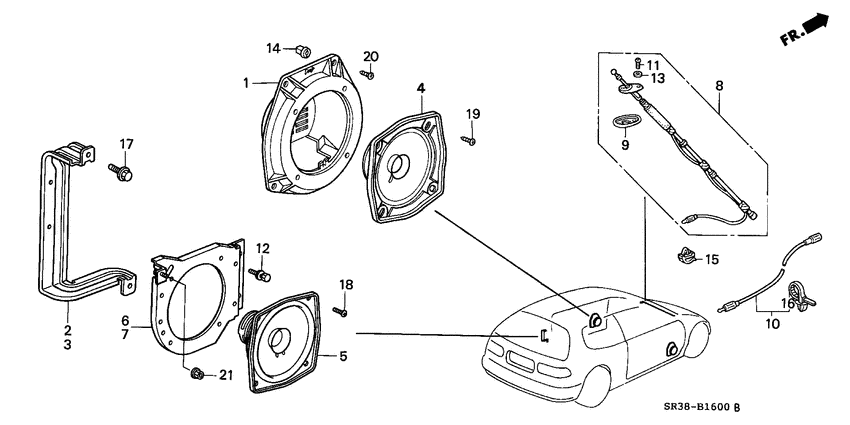

Radio antenna/speaker Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 3
- grade
- EX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39112-SH3-000 BracketFR. SPEAKER SEAL (12CM) |
39112-SH3-000 |
US $13.51 |
||
|
2
|
2
39113-SR3-000
Bracket
|
39113-SR3-000 |
— | ||
|
3
|
3
39114-SR3-000
Bracket
|
39114-SR3-000 |
— | ||
|
4
|
4
39120-SM4-901
Speaker assy
|
39120-SM4-901 |
— | ||
|
8
|
8
39150-SR3-G01
Antenna assy
|
39150-SR3-G01 |
— | ||
|
9
|
9
39154-SR3-G01
Packing
|
39154-SR3-G01 |
— | ||
|
10
|
10
39156-SR3-C01
Sub feeder
00000000 - 0S306242 |
39156-SR3-C01 |
— | ||
|
10
|
10
39156-SR3-C02
Sub feeder
0S306243 - |
39156-SR3-C02 |
— | ||
|
11
|
11
90105-SB6-003 ScrewPAN, 4X12 |
90105-SB6-003 |
US $3.18 |
||
|
13
|
13
90502-SA0-003
Washer
|
90502-SA0-003 |
— | ||
|
14
|
14
90670-SG0-003 GrommetSCREW, 4MM |
90670-SG0-003 |
US $1.96 |
||
|
15
|
15
90683-SB3-003 ClipWIRE HARNESS |
90683-SB3-003 |
from US $1.61 |
||
|
16
|
16
91570-SH3-003 BandWIRE HARNESS (NATURAL) |
91570-SH3-003 |
US $3.15 |
||
|
17
|
17
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
19
|
19
93903-14380 ScrewTAPPING, 4X12 |
93903-14380 |
from US $0.41 |
||
|
20
|
20
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
