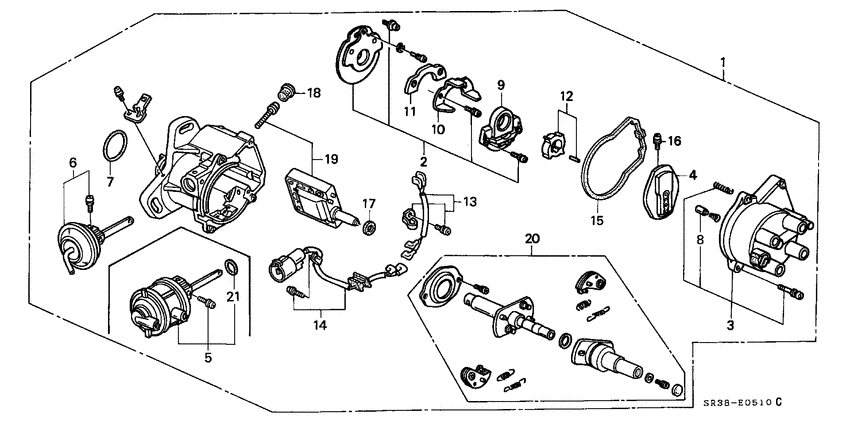

Distributor (HITACHI) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 3
- grade
- EX
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-P02-T01
Distributor assy
|
30100-P02-T01 |
— | ||
|
2
|
2
30101-P01-005 Plate assy.BREAKER |
30101-P01-005 |
US $27.90 |
||
|
3
|
3
30102-PM3-045
Cap assy.
|
30102-PM3-045 |
— | ||
|
4
|
4
30103-P01-005
Head
|
30103-P01-005 |
— | ||
|
6
|
6
30104-P01-T01
Control assy.
|
30104-P01-T01 |
— | ||
|
7
|
7
30110-PC6-005
O-ring
|
30110-PC6-005 |
— | ||
|
8
|
8
30115-634-005
Point assy
|
30115-634-005 |
— | ||
|
9
|
9
30120-P01-005
Igniter unit
|
30120-P01-005 |
— | ||
|
10
|
10
30121-P01-005
Stator
|
30121-P01-005 |
— | ||
|
11
|
11
30123-PC1-005
Magnet set
|
30123-PC1-005 |
— | ||
|
12
|
12
30126-PM3-005
Reluctor set
|
30126-PM3-005 |
— | ||
|
13
|
13
30128-PM3-015
Wire
|
30128-PM3-015 |
— | ||
|
14
|
14
30131-P01-005
Harness assy
|
30131-P01-005 |
— | ||
|
15
|
15
30132-PT0-005 Packing1 |
30132-PT0-005 |
from US $6.84 |
||
|
16
|
16
30135-PT0-005
Screw
|
30135-PT0-005 |
— | ||
|
17
|
17
30138-PM3-005
Packing
00000000 - 2208912 |
30138-PM3-005 |
— | ||
| replacement | |||||
|
17
|
17
91308-MA6-005 O-ring (14.6x3.6)00000000 - 2208912 |
91308-MA6-005 |
from US $5.18 |
||
|
18
|
18
30139-PM3-015
Plug
|
30139-PM3-015 |
— | ||
|
19
|
19
30500-P01-005
Coil
|
30500-P01-005 |
— | ||
|
20
|
20
30200-PM3-005
Governor assy.
|
30200-PM3-005 |
— | ||
