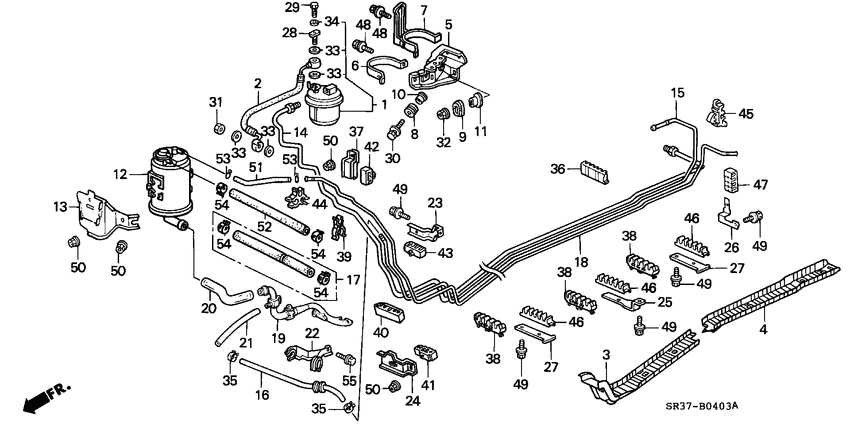

Fuel pipe (PGM-FI; '94) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 3
- grade
- DXI
- area code
- KS
- left-hand drive
- +
- head light washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-SM4-932
Strainer set
0S214748 - |
16010-SM4-932 |
— | ||
|
1
|
1
16010-SM4-931
Strainer set
00000000 - 0S214747 |
16010-SM4-931 |
— | ||
|
2
|
2
16722-P04-G01
Hose comp.
|
16722-P04-G01 |
— | ||
|
3
|
3
16913-SR3-000
Cover
|
16913-SR3-000 |
— | ||
|
4
|
4
16914-SR3-000
Cover
|
16914-SR3-000 |
— | ||
|
5
|
5
16918-SR3-931
Stay
|
16918-SR3-931 |
— | ||
|
7
|
7
16919-SR3-A31
Band
|
16919-SR3-A31 |
— | ||
|
8
|
8
16922-SH3-930 RubberMOUNTING |
16922-SH3-930 |
US $1.54 |
||
|
9
|
9
16922-SR3-931 RubberMOUNTING |
16922-SR3-931 |
US $1.75 |
||
|
10
|
10
16923-SP0-930 CollarDISTANCE |
16923-SP0-930 |
US $2.94 |
||
|
11
|
11
16923-SR3-930 CollarDISTANCE |
16923-SR3-930 |
US $3.01 |
||
|
12
|
12
17300-SK7-A32
Canister assy
|
17300-SK7-A32 |
— | ||
|
13
|
13
17358-SR3-931
Bracket
|
17358-SR3-931 |
— | ||
|
14
|
14
17700-SR3-J30 Pipe compFUEL FEED |
17700-SR3-J30 |
US $59.90 |
||
|
15
|
15
17720-SR3-J30
Pipe comp
|
17720-SR3-J30 |
— | ||
|
16
|
16
17723-SR3-G31
Hose
|
17723-SR3-G31 |
— | ||
|
17
|
17
17725-SR3-G30
Hose assy
|
17725-SR3-G30 |
— | ||
|
18
|
18
17740-SR3-J30
Pipe comp
|
17740-SR3-J30 |
— | ||
|
19
|
19
17742-SR3-932
Pipe
|
17742-SR3-932 |
— | ||
|
20
|
20
17743-SR3-A30
Tube
|
17743-SR3-A30 |
— | ||
|
21
|
21
17744-SR3-930
Tube
|
17744-SR3-930 |
— | ||
|
23
|
23
17761-SR3-010
Stay a
|
17761-SR3-010 |
— | ||
|
24
|
24
17762-SR3-J00
Stay b
|
17762-SR3-J00 |
— | ||
|
25
|
25
17763-SR3-000
Stay c
|
17763-SR3-000 |
— | ||
|
26
|
26
17764-SR3-J00
Stay d
|
17764-SR3-J00 |
— | ||
|
27
|
27
17765-SM4-000
Stay e
|
17765-SM4-000 |
— | ||
|
28
|
28
90008-PP4-E02 BoltBANJO, 12MM |
90008-PP4-E02 |
from US $6.51 |
||
|
29
|
29
90009-PP4-E01 BoltSEALING, 6MM |
90009-PP4-E01 |
from US $2.15 |
||
|
30
|
30
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
31
|
31
90201-PD1-000 Nut aSEALING, 12MM |
90201-PD1-000 |
from US $2 |
||
|
32
|
32
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
US $1.05 |
||
|
33
|
33
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2 |
||
|
34
|
34
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
35
|
35
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
36
|
36
91590-SR3-J31 CLAMP J, FUEL PIPE |
91590-SR3-J31 |
US $5.05 |
||
|
37
|
37
91591-SR3-010
Clip a
|
91591-SR3-010 |
— | ||
|
38
|
38
91592-SR3-J31 Clamp hFUEL PIPE (NIFCO) |
91592-SR3-J31 |
US $2.66 |
||
|
39
|
39
91593-SR3-G31
Clip
|
91593-SR3-G31 |
— | ||
|
40
|
40
91593-SR3-J31
Clamp g
|
91593-SR3-J31 |
— | ||
|
41
|
41
91594-SR3-J31 Clamp fFUEL PIPE (NIFCO) |
91594-SR3-J31 |
US $3.22 |
||
|
42
|
42
91595-SR3-003
Clamp a
|
91595-SR3-003 |
— | ||
|
43
|
43
91596-SR3-J31 Clamp bFUEL PIPE |
91596-SR3-J31 |
US $5.05 |
||
|
44
|
44
91597-SH3-Y01 ClampVENT TUBE (BLACK) |
91597-SH3-Y01 |
US $2.87 |
||
|
45
|
45
91597-SR3-003
Clamp c
|
91597-SR3-003 |
— | ||
|
46
|
46
91598-SR3-J31
Clamp d
|
91598-SR3-J31 |
— | ||
| replacement | |||||
|
46
|
46
91598-SR3-J32 Clamp dFUEL PIPE (SANOU) |
91598-SR3-J32 |
US $5.05 |
||
|
47
|
47
91599-SR3-J32 Clamp eFUEL PIPE |
91599-SR3-J32 |
US $3.36 |
||
|
48
|
48
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.65 |
||
|
49
|
49
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
50
|
50
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.50 |
||
|
51
|
51
95001-551-406-0 TubeFUEL, 5.5X140 (95001-55001-60M) |
95001-551-406-0 |
US $1.55 |
||
|
53
|
53
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
54
|
54
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
