Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
2	2 17800-SR3-951 Pedal comp	17800-SR3-951	—
3	3 17812-SA7-010 Washer ACCELERATOR PEDAL	17812-SA7-010	from US $2
4	4 17814-SR3-000 Spring	17814-SR3-000	—
5	5 17816-SK7-000 Cover ACCELERATOR PEDAL	17816-SK7-000	US $10.51
6	6 17910-SR3-E62 Wire	17910-SR3-E62	—
7	7 17921-SA4-730 Seal THROTTLE CABLE	17921-SA4-730	US $5.86
11	11 17926-SR3-003 Clip	17926-SR3-003	—
16	16 17938-SE0-941 Clip THROTTLE WIRE	17938-SE0-941	from US $1.54
17	17 35350-SE0-A03 Switch assy STOP (TEC)	35350-SE0-A03	US $32.31
20	20 46500-SR3-950 Pedal assy	46500-SR3-950	—
21	21 46504-679-300 Bush PEDAL 00000000 - 0S123964	46504-679-300	from US $5.37
21	21 46504-ST5-300 Bush PEDAL 0S123965 -	46504-ST5-300	US $3.70
22	22 46505-SA5-000 Pad PEDAL STOPPER	46505-SA5-000	from US $2.38
23	23 46530-SR3-000 Spring assy PEDAL RETURN	46530-SR3-000	US $4.29
24	24 46535-SM4-000 Collar PEDAL	46535-SM4-000	US $5.18
25	25 46545-SA5-980 Cover BRAKE PEDAL	46545-SA5-980	from US $7.99
27	27 46590-SR3-951 Bracket	46590-SR3-951	—
28	28 46904-SM4-300 Pad ACCELERATOR STOPPER	46904-SM4-300	US $3.08
30	30 46905-SR3-300 Bolt	46905-SR3-300	—
38	38 90212-671-005 Nut SELF-LOCK, 10MM	90212-671-005	US $1.22
40	40 92201-10070-0J Bolt HEX., 10X70	92201-10070-0J	US $1.04
41	41 93404-080-160-8 Bolt-washer 8X16	93404-080-160-8	from US $0.67
43	43 94001-060-700-S Nut HEX., 6MM	94001-060-700-S	from US $0.44
44	44 94001-100-800-S Nut HEX., 10MM	94001-100-800-S	from US $0.52
46	46 94070-08080 Nut-washer 8MM	94070-08080	from US $0.52
47	47 94102-10800 Washer PLAIN, 10MM	94102-10800	from US $0.44
48	48 94201-25180 Pin SPLIT, 2.5X18	94201-25180	from US $0.37
49	49 95701-060-120-8 Bolt FLANGE, 6X12	95701-060-120-8	from US $0.52

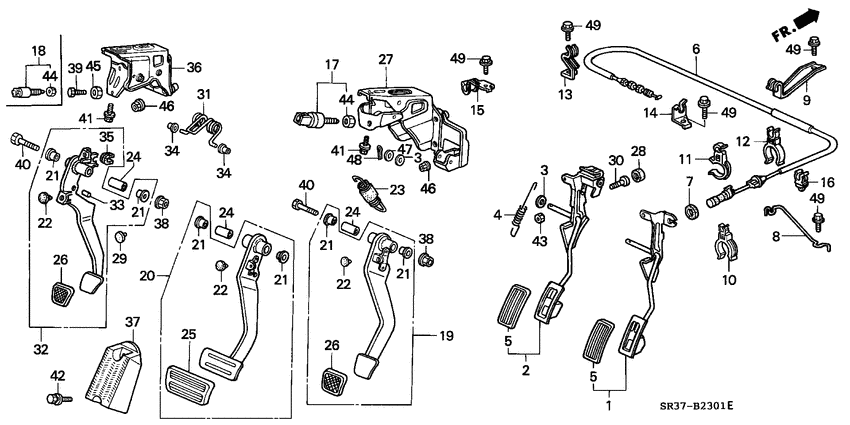

Pedal (RH) Diagram Honda CIVIC General 7057135-542974

Pedal (RH) Diagram Honda CIVIC General 7057135-542974
