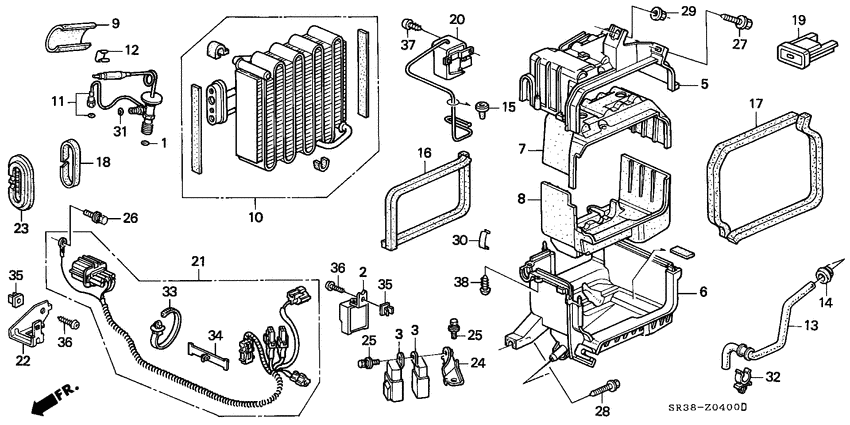

Air conditioner (COOLING UNIT; 1) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 3
- grade
- EX
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38647-692-660 O-ring1/2" |
38647-692-660 |
US $2.87 |
||
|
2
|
2
39400-SB2-013
Control assy.
|
39400-SB2-013 |
— | ||
|
3
|
3
39795-SB2-003 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39795-SB2-003 |
US $40.58 |
||
|
5
|
5
80201-SR3-A00
Case
|
80201-SR3-A00 |
— | ||
|
6
|
6
80202-SR3-A00
Case
|
80202-SR3-A00 |
— | ||
|
7
|
7
80205-SR3-A00
Insulator
|
80205-SR3-A00 |
— | ||
|
8
|
8
80206-SR3-A00
Insulator
|
80206-SR3-A00 |
— | ||
|
9
|
9
80214-SL5-A01 InsulatorEXPANSION |
80214-SL5-A01 |
US $7.81 |
||
|
10
|
10
80215-SR3-A02 Evaporator comp.SAK |
80215-SR3-A02 |
US $363.52 |
||
|
11
|
11
80220-SR3-A01
Valve assy.
|
80220-SR3-A01 |
— | ||
|
12
|
12
80225-SR3-000 Clamp |
80225-SR3-000 |
US $3.15 |
||
|
13
|
13
80271-SR3-A00
Hose
|
80271-SR3-A00 |
— | ||
|
14
|
14
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
15
|
15
80282-SM4-A00
Grommet
|
80282-SM4-A00 |
— | ||
|
16
|
16
80286-SR3-000 SealEVAPORATOR INNER |
80286-SR3-000 |
US $7 |
||
|
17
|
17
80287-SR3-000 SealEVAPORATOR OUTER |
80287-SR3-000 |
US $7.84 |
||
|
18
|
18
80288-SR3-000 SealEVAPORATOR JOINT |
80288-SR3-000 |
US $6.19 |
||
|
19
|
19
80411-SR3-003
Knob
|
80411-SR3-003 |
— | ||
|
20
|
20
80430-SR3-A01
Thermostat
|
80430-SR3-A01 |
— | ||
|
21
|
21
80460-SR3-A02
Harness
|
80460-SR3-A02 |
— | ||
|
22
|
22
80463-SR3-A00
Bracket
|
80463-SR3-A00 |
— | ||
|
23
|
23
80464-SR3-000
Grommet
|
80464-SR3-000 |
— | ||
|
24
|
24
80491-SR3-000
Bracket
|
80491-SR3-000 |
— | ||
|
25
|
25
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
26
|
26
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
27
|
27
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
28
|
28
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
29
|
29
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
from US $1.05 |
||
|
30
|
30
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
31
|
31
91301-SM4-A00 O-ring8MM |
91301-SM4-A00 |
US $1.75 |
||
|
32
|
32
91546-SR3-003 Clamp16.5 |
91546-SR3-003 |
US $2.16 |
||
|
33
|
33
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
34
|
34
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
35
|
35
91619-SA5-000 GrommetSCREW, 6MM |
91619-SA5-000 |
from US $2.12 |
||
|
36
|
36
93904-46220 ScrewTAPPING, 6X16 |
93904-46220 |
US $0.44 |
||
|
37
|
37
93913-14220 ScrewTAPPING, 4X12 |
93913-14220 |
from US $0.37 |
||
|
38
|
38
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
