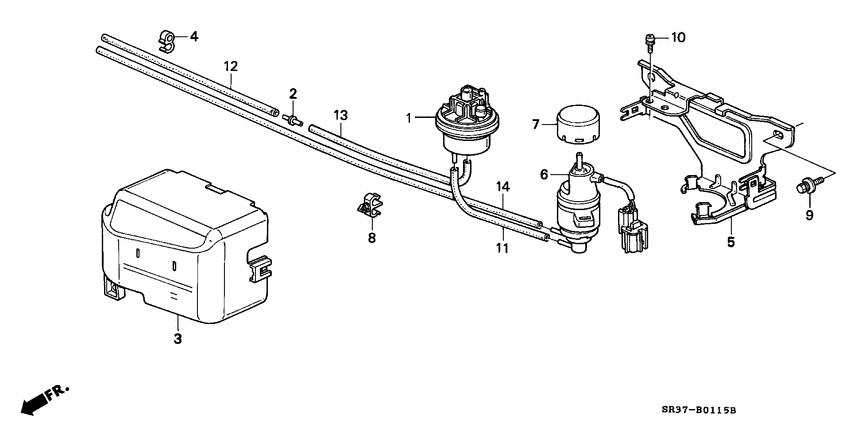

Control device (1.5L SOHC VTEC) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 5MT
- Number of doors
- 3
- grade
- VEI
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17290-PY3-901
Valve assy.
|
17290-PY3-901 |
— | ||
|
2
|
2
17324-PE0-000
Joint comp
|
17324-PE0-000 |
— | ||
|
3
|
3
36020-P07-004
Cover
|
36020-P07-004 |
— | ||
|
4
|
4
36024-PM1-G01
Clamp
|
36024-PM1-G01 |
— | ||
|
5
|
5
36033-P07-004
Stay comp
|
36033-P07-004 |
— | ||
|
6
|
6
36190-P07-003
Valve assy.
|
36190-P07-003 |
— | ||
|
7
|
7
36194-PD2-661 Filter assyAIR |
36194-PD2-661 |
US $12.93 |
||
|
8
|
8
38777-PG7-Y00
Clamp
|
38777-PG7-Y00 |
— | ||
|
9
|
9
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
10
|
10
93892-050-100-7 Screw-washer5X10 |
93892-050-100-7 |
from US $0.44 |
||
|
11
|
11
95005-350-751-0 Tube3.5X75 (95005-35001-10M) |
95005-350-751-0 |
US $1.18 |
||
|
12
|
12
95005-351-601-A Tube3.5X160 (95005-35001-10M) |
95005-351-601-A |
US $2.37 |
||
|
13
|
13
95005-350-601-A Tube3.5X60 (95005-35001-10M) |
95005-350-601-A |
US $1.18 |
||
|
14
|
14
95005-354-451-G Tube3.5X445 (95005-35001-10M) |
95005-354-451-G |
US $4.74 |
