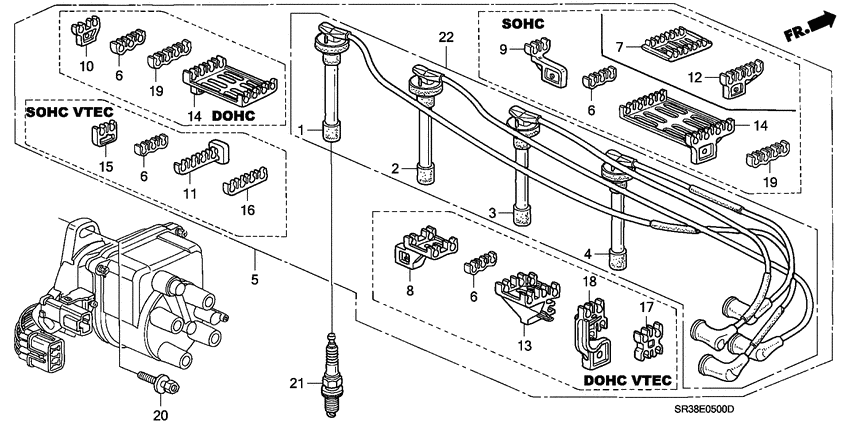

High tension cord/plug Diagram Honda CIVIC
- Year
- 1992
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- SI
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32701-P29-000 Cord compRESISTANCE (NO.1) |
32701-P29-000 |
US $29.44 |
||
|
2
|
2
32702-P29-000 Cord compRESISTANCE (NO.2) |
32702-P29-000 |
US $29.44 |
||
|
3
|
3
32703-P29-000 Cord compRESISTANCE (NO.3) |
32703-P29-000 |
US $26.88 |
||
|
4
|
4
32704-P29-000 Cord compRESISTANCE (NO.4) |
32704-P29-000 |
US $26.88 |
||
|
5
|
5
32722-P29-000 Cord compHIGH TENSION |
32722-P29-000 |
US $99.20 |
||
|
6
|
6
32763-PM3-000 Clamp cHIGH TENSION CORD |
32763-PM3-000 |
US $4.43 |
||
|
10
|
10
32765-PM7-000
Clamp a
|
32765-PM7-000 |
— | ||
|
14
|
14
32766-PR4-A00
Clamp c
|
32766-PR4-A00 |
— | ||
|
19
|
19
32777-695-000 ClampHIGH TENSION CORD |
32777-695-000 |
US $3.73 |
||
|
20
|
20
90003-P01-000 Bolt-washer8X28 |
90003-P01-000 |
from US $3.58 |
||
|
21
|
21
98079-5715J PlugSPARK (K22PR-L11) (DENSO) |
98079-5715J |
US $7.70 |
||
|
21
|
21
98079-5614J PlugSPARK (BKR6E-N-11) (NGK) |
98079-5614J |
from US $4.79 |
||
|
21
|
21
98079-5615J PlugSPARK (K20PR-L11) (DENSO) |
98079-5615J |
US $7.70 |
||
|
21
|
21
98079-5714J PlugSPARK (BKR7E-N-11) (NGK) |
98079-5714J |
US $7.70 |
||
|
22
|
22
32722-P29-405
Cord comp
|
32722-P29-405 |
— |
