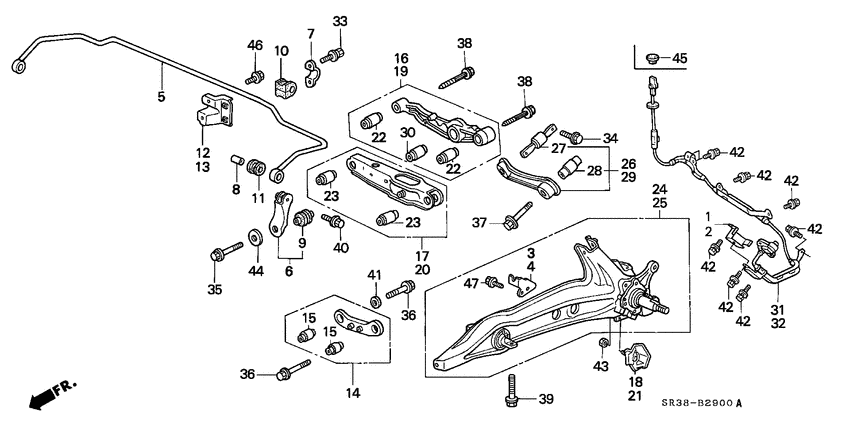

Rear stabilizer/rear lower arm Diagram Honda CIVIC
- Year
- 1992
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- SI
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
46438-SR3-010
Bracket
|
46438-SR3-010 |
— | ||
|
4
|
4
46439-SR3-010
Bracket
|
46439-SR3-010 |
— | ||
|
5
|
5
52300-SR3-003
Spring
|
52300-SR3-003 |
— | ||
|
6
|
6
52303-SH3-020
Link comp
|
52303-SH3-020 |
— | ||
|
7
|
7
52308-SR3-000 HolderRR. STABILIZER |
52308-SR3-000 |
US $2.38 |
||
|
8
|
8
52312-SE0-000 CollarSTABILIZER INNER BUSH END |
52312-SE0-000 |
from US $2.61 |
||
|
9
|
9
52314-SH3-000 BushSTABILIZER LINKAGE |
52314-SH3-000 |
from US $9.16 |
||
|
10
|
10
52315-SR3-000
Bush
|
52315-SR3-000 |
— | ||
|
11
|
11
52316-SA5-000 BushSTABILIZER END |
52316-SA5-000 |
from US $2.57 |
||
|
12
|
12
52317-SR3-000 BracketR. RR. STABILIZER |
52317-SR3-000 |
US $11.34 |
||
|
13
|
13
52318-SR3-000 BracketL. RR. STABILIZER |
52318-SR3-000 |
US $11.34 |
||
|
14
|
14
52341-SR3-A00 Arm compRR. COMPENSATOR |
52341-SR3-A00 |
US $42.88 |
||
|
15
|
15
52343-SR3-004 BushCOMPENSATOR (YAMASHITA) |
52343-SR3-004 |
US $14.77 |
||
|
15
|
15
52343-SK7-003 BushCOMPENSATOR (HOKUSHIN) |
52343-SK7-003 |
US $13.44 |
||
|
16
|
16
52350-SH3-G11
Arm comp
|
52350-SH3-G11 |
— | ||
|
18
|
18
52354-SR3-000
Protector
|
52354-SR3-000 |
— | ||
|
19
|
19
52360-SH3-G11
Arm comp
|
52360-SH3-G11 |
— | ||
|
21
|
21
52364-SR3-000
Protector
|
52364-SR3-000 |
— | ||
|
22
|
22
52365-SH3-000 BushRR. LOWER ARM (YAMASHITA) |
52365-SH3-000 |
US $19.04 |
||
|
24
|
24
52370-SR3-G01 Arm compR. RR. TRAILING (DISK) |
52370-SR3-G01 |
US $322.56 |
||
|
25
|
25
52371-SR3-G01 Arm compL. RR. TRAILING (DISK) |
52371-SR3-G01 |
US $322.56 |
||
|
26
|
26
52390-SR3-A00
Arm comp
|
52390-SR3-A00 |
— | ||
| replacement | |||||
|
26
|
26
52390-SR3-000
Arm comp
|
52390-SR3-000 |
— | ||
|
27
|
27
52393-SK7-004 BushUPPER ARM INNER (YAMASHITA) |
52393-SK7-004 |
US $25.34 |
||
|
28
|
28
52395-SH3-004 BushRR. UPPER ARM (YAMASHITA) |
52395-SH3-004 |
US $15.62 |
||
|
29
|
29
52400-SR3-A00
Arm comp
|
52400-SR3-A00 |
— | ||
| replacement | |||||
|
29
|
29
52400-SR3-000 Arm comp |
52400-SR3-000 |
US $70.04 |
||
|
30
|
30
52622-SH3-010 BushRR. SHOCK ABSORBER LOWER (YAMASHITA) |
52622-SH3-010 |
US $27.23 |
||
|
33
|
33
90007-SA7-000 Bolt-washer8X20 |
90007-SA7-000 |
US $2.31 |
||
|
34
|
34
90117-SH3-004 BoltUPPER ARM, 10X30 |
90117-SH3-004 |
from US $3.78 |
||
|
35
|
35
90120-SB0-003 BoltSHOCK ABSORBER LOCK, 10X42 |
90120-SB0-003 |
US $4.29 |
||
|
36
|
36
90171-SR3-003 BoltTORQUE COMPENSATOR, 10X59 |
90171-SR3-003 |
US $5.62 |
||
|
37
|
37
90172-SK7-003 BoltUPPER ARM, 10X68 |
90172-SK7-003 |
US $3.48 |
||
|
38
|
38
90173-SR3-003 BoltLOWER ARM, 10X80 |
90173-SR3-003 |
from US $5.96 |
||
|
39
|
39
90174-SJ4-000 BoltTRAILING ARM BUSH, 12X60 |
90174-SJ4-000 |
US $7 |
||
|
40
|
40
90176-SH3-003
Bolt
|
90176-SH3-003 |
— | ||
|
41
|
41
90551-SH3-000
Washer
|
90551-SH3-000 |
— | ||
|
43
|
43
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
44
|
44
94103-10400 WasherPLAIN, 10MM |
94103-10400 |
from US $0.52 |
||
|
46
|
46
95701-080-180-8 Bolt, FLANGE, 8X18 |
95701-080-180-8 |
from US $0.59 |
||
|
47
|
47
95801-080-160-8
Bolt
|
95801-080-160-8 |
— | ||
| replacement | |||||
|
47
|
47
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
