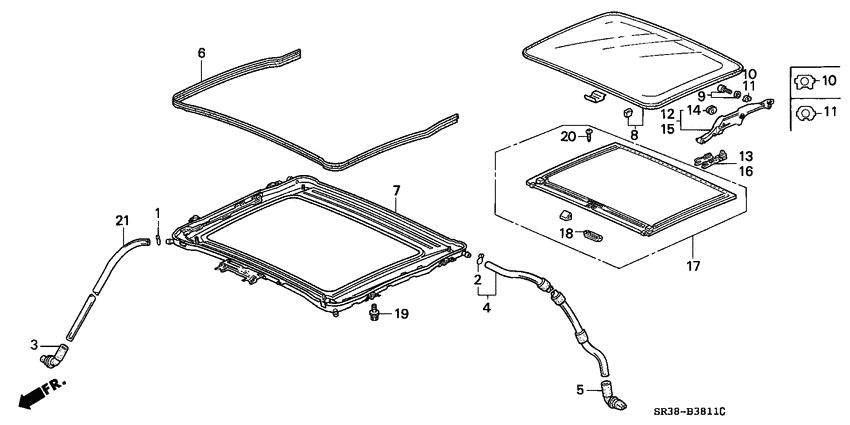

Sliding roof (2) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 5MT
- Number of doors
- 3
- grade
- VTI
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15707-634-000 ClipOIL DRAIN TUBE |
15707-634-000 |
from US $2 |
||
|
2
|
2
18534-634-670 ClipAIR HOSE, 16MM |
18534-634-670 |
from US $1.68 |
||
|
3
|
3
70052-SH3-000
Valve
|
70052-SH3-000 |
— | ||
|
4
|
4
70060-SR3-000
Tube
|
70060-SR3-000 |
— | ||
|
5
|
5
70062-SH3-000
Valve
|
70062-SH3-000 |
— | ||
|
6
|
6
70080-SR3-003
Seal
|
70080-SR3-003 |
— | ||
|
7
|
7
70100-SR3-013
Frame comp
|
70100-SR3-013 |
— | ||
|
8
|
8
70200-SR3-003
Glass assy
|
70200-SR3-003 |
— | ||
| replacement | |||||
|
8
|
8
70200-SR3-505
GLASS ASSY ROOF
|
70200-SR3-505 |
— | ||
|
9
|
9
70291-SR3-003 BoltSTAY, 6MM |
70291-SR3-003 |
US $2.31 |
||
|
12
|
12
70331-SR3-003
Stay
|
70331-SR3-003 |
— | ||
|
13
|
13
70333-SR3-013
Slider
|
70333-SR3-013 |
— | ||
|
14
|
14
70334-SR3-003
Slider b
|
70334-SR3-003 |
— | ||
|
15
|
15
70336-SR3-003
Stay
|
70336-SR3-003 |
— | ||
|
16
|
16
70338-SR3-013
Slider
|
70338-SR3-013 |
— | ||
|
17
|
17
83210-SR3-003ZA
Sunshade assy. *nh220l*
|
83210-SR3-003ZA |
— | ||
|
18
|
18
83218-SR3-003ZB
Handle
|
83218-SR3-003ZB |
— | ||
|
19
|
19
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
20
|
20
93903-34480 ScrewTAPPING, 4X16 |
93903-34480 |
from US $0.37 |
||
|
21
|
21
95003-331-251-0
Tube
|
95003-331-251-0 |
— | ||
