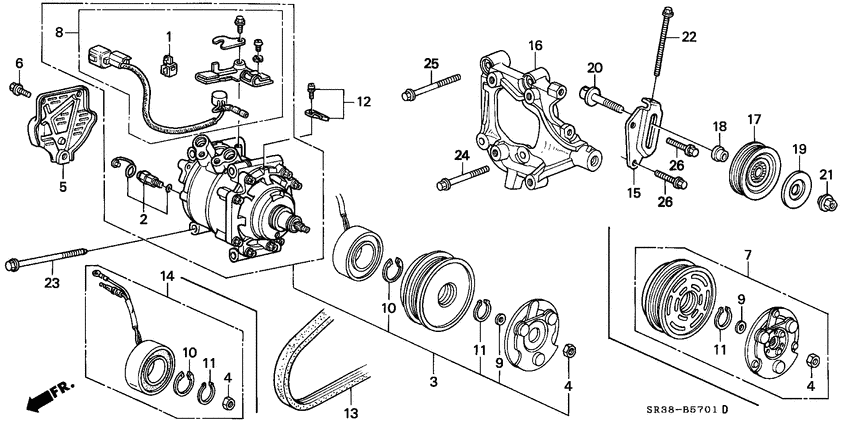

Air conditioner (COMPRESSOR; SANDEN; 2) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- SI
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38773-PJ7-003 ClipWIRE HARNESS |
38773-PJ7-003 |
US $2.10 |
||
|
2
|
2
38801-PP4-E02
Valve sub assy.
|
38801-PP4-E02 |
— | ||
|
3
|
3
38810-P07-024
Compressor comp.
|
38810-P07-024 |
— | ||
|
4
|
4
38829-P07-004 NutU |
38829-P07-004 |
US $1.75 |
||
|
5
|
5
38885-P07-004
Insulator
|
38885-P07-004 |
— | ||
|
6
|
6
38886-P07-004
Bolt
|
38886-P07-004 |
— | ||
|
7
|
7
38900-P07-014
Clutch set
|
38900-P07-014 |
— | ||
|
8
|
8
38908-P07-004
Protector set
|
38908-P07-004 |
— | ||
|
9
|
9
38912-PE1-702 Shim set |
38912-PE1-702 |
US $3.74 |
||
|
10
|
10
38913-PP4-E02 RingSNAP |
38913-PP4-E02 |
US $3.36 |
||
|
11
|
11
38914-P07-004 Ring fSNAP |
38914-P07-004 |
US $1.89 |
||
|
12
|
12
38915-P07-004
Clamp with screw
|
38915-P07-004 |
— | ||
|
13
|
13
38920-P01-003 BeltCOMPRESSOR (BANDO) |
38920-P01-003 |
US $24.32 |
||
|
13
|
13
38920-P01-004
Belt
|
38920-P01-004 |
— | ||
| replacement | |||||
|
13
|
13
31110-P75-507 Belt |
31110-P75-507 |
US $29.51 |
||
|
14
|
14
38924-P07-024
Coil set
|
38924-P07-024 |
— | ||
|
15
|
15
38926-PM3-000
Stay
|
38926-PM3-000 |
— | ||
|
16
|
16
38930-P06-A00
Bracket
|
38930-P06-A00 |
— | ||
|
17
|
17
38942-PM3-000
Pulley comp
|
38942-PM3-000 |
— | ||
|
18
|
18
38944-P01-000
Collar
|
38944-P01-000 |
— | ||
|
19
|
19
38945-P30-000 CoverBEARING 2106275 - |
38945-P30-000 |
US $4.40 |
||
|
19
|
19
38945-PR3-000
Cover
00000000 - 2106274 |
38945-PR3-000 |
— | ||
| replacement | |||||
|
19
|
19
38945-P30-000 CoverBEARING 00000000 - 2106274 |
38945-P30-000 |
US $4.40 |
||
|
20
|
20
38946-P01-000 BoltIDLE PULLEY |
38946-P01-000 |
US $4.80 |
||
|
21
|
21
38947-P01-000 NutSPECIAL, 10MM |
38947-P01-000 |
US $1.96 |
||
|
22
|
22
90021-PM3-000 BoltFLANGE, 8X85 |
90021-PM3-000 |
US $4.34 |
||
|
23
|
23
90023-PM3-000 BoltFLANGE, 8X105 |
90023-PM3-000 |
US $3.92 |
||
|
24
|
24
90055-P01-000 BoltSPECIAL, 10X35 |
90055-P01-000 |
US $1.68 |
||
|
25
|
25
90056-P01-000 BoltSPECIAL, 10X50 |
90056-P01-000 |
US $1.96 |
||
|
26
|
26
95801-080-160-8
Bolt
|
95801-080-160-8 |
— | ||
| replacement | |||||
|
26
|
26
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
