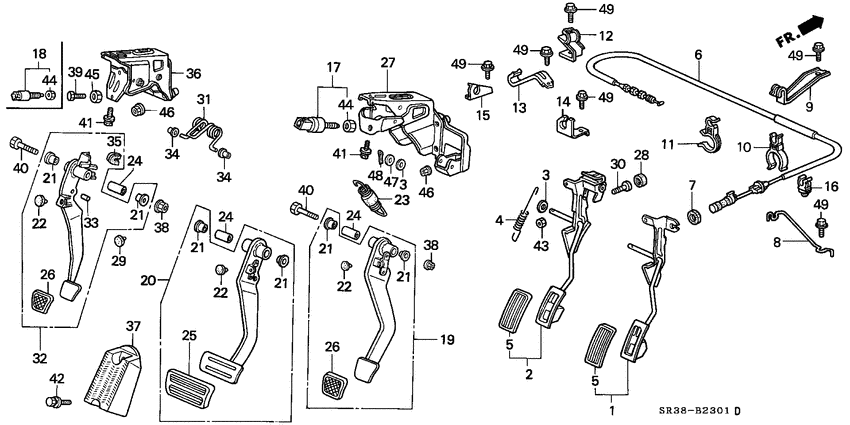

Pedal (2) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- SI
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SR3-000
Pedal comp
|
17800-SR3-000 |
— | ||
|
3
|
3
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
4
|
4
17814-SR3-000
Spring
|
17814-SR3-000 |
— | ||
|
5
|
5
17816-SK7-000 CoverACCELERATOR PEDAL |
17816-SK7-000 |
US $10.51 |
||
|
6
|
6
17910-SR3-J01
Wire
|
17910-SR3-J01 |
— | ||
|
7
|
7
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
9
|
9
17925-SR3-N01
Clamp
|
17925-SR3-N01 |
— | ||
|
10
|
10
17926-SH3-003
Clip
|
17926-SH3-003 |
— | ||
|
13
|
13
17932-SR3-000
Stay
|
17932-SR3-000 |
— | ||
|
15
|
15
17934-SK3-G40
Stay
|
17934-SK3-G40 |
— | ||
|
16
|
16
17938-SE0-941 ClipTHROTTLE WIRE |
17938-SE0-941 |
from US $1.54 |
||
|
17
|
17
35350-SE0-A03 Switch assySTOP (TEC) |
35350-SE0-A03 |
US $32.31 |
||
|
19
|
19
46500-SR3-000
Pedal assy
|
46500-SR3-000 |
— | ||
|
21
|
21
46504-ST5-300 BushPEDAL 0S106105 - |
46504-ST5-300 |
US $3.70 |
||
|
21
|
21
46504-679-300 BushPEDAL 00000000 - 0S106104 |
46504-679-300 |
from US $5.37 |
||
|
22
|
22
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.38 |
||
|
23
|
23
46530-SR3-000 Spring assyPEDAL RETURN |
46530-SR3-000 |
US $4.29 |
||
|
24
|
24
46535-SM4-000 CollarPEDAL |
46535-SM4-000 |
US $5.18 |
||
|
26
|
26
46545-SH3-000 CoverPEDAL |
46545-SH3-000 |
US $10.95 |
||
|
27
|
27
46590-SR3-010
Bracket
|
46590-SR3-010 |
— | ||
|
28
|
28
46904-SM4-300 PadACCELERATOR STOPPER |
46904-SM4-300 |
US $3.08 |
||
|
29
|
29
46905-SK7-000
Stopper
|
46905-SK7-000 |
— | ||
|
30
|
30
46905-SR3-300
Bolt
|
46905-SR3-300 |
— | ||
|
31
|
31
46907-SR3-000
Spring
|
46907-SR3-000 |
— | ||
|
32
|
32
46910-SR3-A00 Pedal compCLUTCH |
46910-SR3-A00 |
US $40.06 |
||
|
33
|
33
46911-SD4-930 BushPEDAL PIN 0S106105 - |
46911-SD4-930 |
from US $2.12 |
||
|
33
|
33
46911-SD4-003 BushPEDAL PIN 00000000 - 0S106104 |
46911-SD4-003 |
US $2.52 |
||
|
34
|
34
46981-SR3-930 Bush aCLUTCH ASSISTANT |
46981-SR3-930 |
US $2.24 |
||
|
35
|
35
46982-SR3-930 Bush bCLUTCH ASSISTANT |
46982-SR3-930 |
US $2.94 |
||
|
36
|
36
46990-SR3-000
Bracket
|
46990-SR3-000 |
— | ||
|
37
|
37
46991-SR3-010
Bracket
|
46991-SR3-010 |
— | ||
|
38
|
38
90212-671-005 NutSELF-LOCK, 10MM |
90212-671-005 |
US $1.22 |
||
|
39
|
39
92201-10025-0H BoltHEX., 10X25 |
92201-10025-0H |
US $0.74 |
||
|
40
|
40
92201-10070-0J BoltHEX., 10X70 |
92201-10070-0J |
US $1.04 |
||
|
41
|
41
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
42
|
42
93405-060-200-7 Bolt-washer6X20 |
93405-060-200-7 |
from US $0.59 |
||
|
43
|
43
94001-060-700-S NutHEX., 6MM |
94001-060-700-S |
from US $0.44 |
||
|
44
|
44
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
45
|
45
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
46
|
46
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
47
|
47
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
48
|
48
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
49
|
49
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
