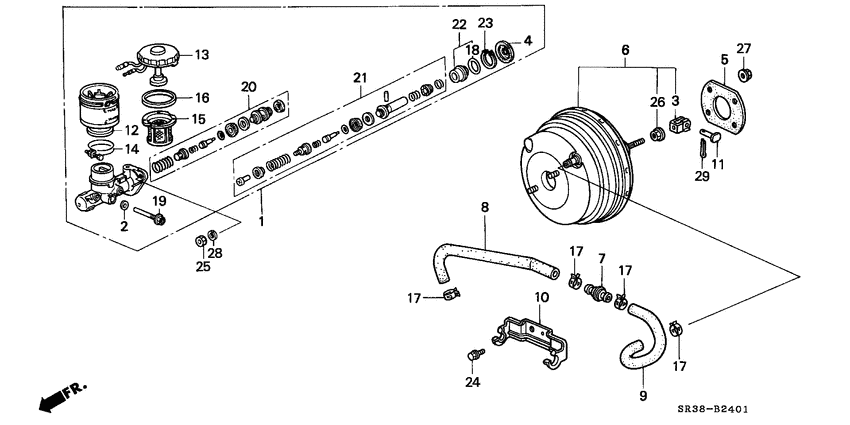

Brake master cylinder/ master power (2) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- VTI
- area code
- KM
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46100-SR3-832
Cylinder assy.
|
46100-SR3-832 |
— | ||
|
2
|
2
46138-SM4-003 Packing |
46138-SM4-003 |
from US $2.66 |
||
|
3
|
3
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
4
|
4
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
5
|
5
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
6
|
6
46400-SM4-003
Power assy.
|
46400-SM4-003 |
— | ||
|
7
|
7
46403-SE0-003
Valve comp.
|
46403-SE0-003 |
— | ||
|
8
|
8
46404-ST7-A10
Tube a
|
46404-ST7-A10 |
— | ||
|
9
|
9
46405-SR3-A20
Tube b
|
46405-SR3-A20 |
— | ||
|
10
|
10
46406-SR3-000
Stay
|
46406-SR3-000 |
— | ||
|
11
|
11
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
12
|
12
46660-SE3-013
Tank
|
46660-SE3-013 |
— | ||
|
13
|
13
46662-SK7-003
Cap comp.
|
46662-SK7-003 |
— | ||
|
14
|
14
46665-ST5-003 BandRESERVE TANK |
46665-ST5-003 |
US $5.88 |
||
|
15
|
15
46666-SE3-013
Filter
|
46666-SE3-013 |
— | ||
|
16
|
16
46669-SE3-003 SealRESERVE TANK |
46669-SE3-003 |
US $7.98 |
||
|
17
|
17
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.74 |
||
|
18
|
18
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
19
|
19
57515-SM4-013 Bolt compSTOPPER |
57515-SM4-013 |
US $4.13 |
||
|
20
|
20
57520-SE0-013
Piston assy.
|
57520-SE0-013 |
— | ||
| replacement | |||||
|
20
|
20
57520-SE0-023
Piston assy.
|
57520-SE0-023 |
— | ||
|
21
|
21
57540-SE0-013
Piston assy.
|
57540-SE0-013 |
— | ||
| replacement | |||||
|
21
|
21
57540-SE0-023
Piston assy.
|
57540-SE0-023 |
— | ||
|
22
|
22
57560-SE0-003
Guide assy
|
57560-SE0-003 |
— | ||
|
23
|
23
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
24
|
24
90139-ST7-000 Bolt-washer6X20 |
90139-ST7-000 |
US $1.82 |
||
|
25
|
25
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
25
|
25
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
26
|
26
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
27
|
27
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
28
|
28
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
29
|
29
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
| replacement | |||||
|
29
|
29
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
