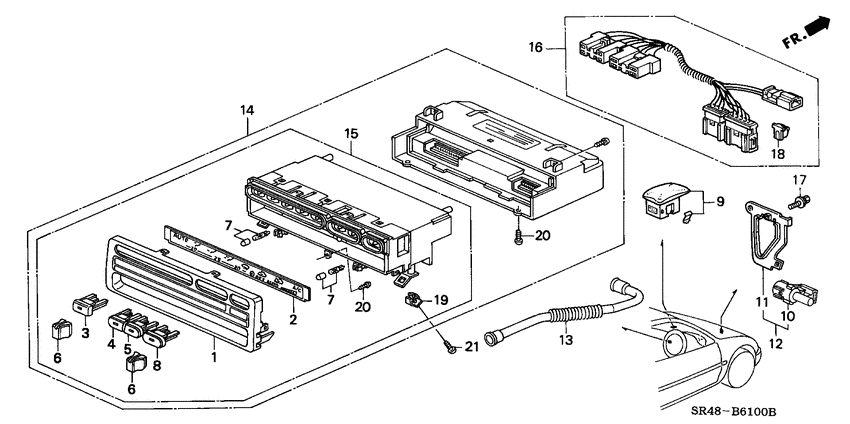

Air conditioner (SENSOR) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79550-SR3-013
Garnish
|
79550-SR3-013 |
— | ||
|
2
|
2
79551-SR3-942
Display
|
79551-SR3-942 |
— | ||
|
3
|
3
79601-SR3-013
Knob a
|
79601-SR3-013 |
— | ||
|
4
|
4
79602-SR3-013
Knob b
|
79602-SR3-013 |
— | ||
|
5
|
5
79603-SR3-013
Knob c
|
79603-SR3-013 |
— | ||
|
6
|
6
79604-SR3-013
Knob d
|
79604-SR3-013 |
— | ||
|
7
|
7
79629-SR3-003
Bulb assy
|
79629-SR3-003 |
— | ||
|
8
|
8
80411-SR3-013
Knob
|
80411-SR3-013 |
— | ||
|
9
|
9
80510-SR3-941
Sensor
|
80510-SR3-941 |
— | ||
|
10
|
10
80520-SR3-941 Sensor assyAMBIENT |
80520-SR3-941 |
US $25.98 |
||
|
11
|
11
80521-SR3-940
Bracket
|
80521-SR3-940 |
— | ||
|
12
|
12
80525-SR3-940
Sensor assy
|
80525-SR3-940 |
— | ||
|
13
|
13
80541-SR3-941
Hose
|
80541-SR3-941 |
— | ||
|
14
|
14
80600-SR3-943
Switch assy
|
80600-SR3-943 |
— | ||
|
15
|
15
80620-SR3-943
Display assy
|
80620-SR3-943 |
— | ||
|
16
|
16
80651-SR3-941
Sub harness b
|
80651-SR3-941 |
— | ||
|
17
|
17
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
17
|
17
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
18
|
18
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
19
|
19
91641-SM4-003 GrommetSCREW, 4MM |
91641-SM4-003 |
US $1.95 |
||
|
20
|
20
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
21
|
21
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
