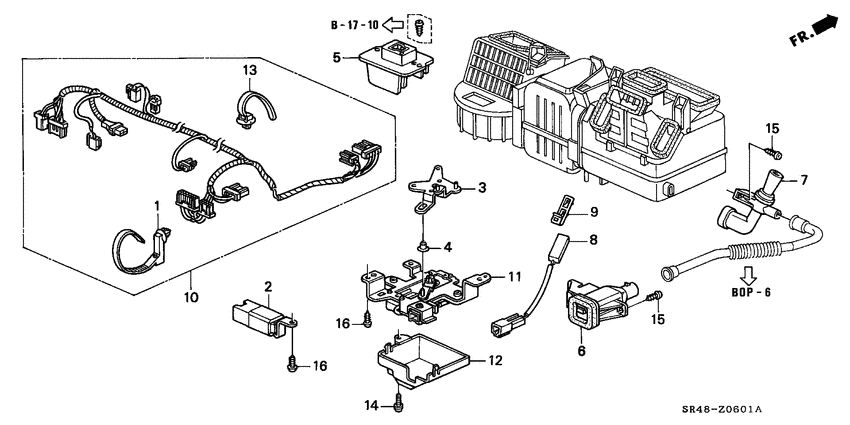

Air conditioner (COMPONENTS; AUTO) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
2
|
2
39797-SE0-003 Relay assyPOWER (4P) (DENSO) (056700-7330) |
39797-SE0-003 |
US $36.20 |
||
|
3
|
3
79180-SR3-941
Lever
|
79180-SR3-941 |
— | ||
|
4
|
4
79192-SR3-003 BushLINK |
79192-SR3-003 |
US $1.47 |
||
|
5
|
5
79330-SR3-941
Transistor
|
79330-SR3-941 |
— | ||
|
6
|
6
80530-SR3-941 Sensor assyIN CAR |
80530-SR3-941 |
US $33.02 |
||
|
7
|
7
80540-SR3-940
Aspirator assy.
|
80540-SR3-940 |
— | ||
|
8
|
8
80550-SR3-941
Sensor
|
80550-SR3-941 |
— | ||
|
9
|
9
80556-SF1-941
Clip
|
80556-SF1-941 |
— | ||
|
10
|
10
80650-SR3-942
Sub harness a
|
80650-SR3-942 |
— | ||
|
11
|
11
80760-SR3-941
Motor assy.
|
80760-SR3-941 |
— | ||
|
12
|
12
80762-SR3-942
Cover
|
80762-SR3-942 |
— | ||
|
13
|
13
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
14
|
14
93893-050-120-7 Screw-washer5X12 |
93893-050-120-7 |
from US $0.52 |
||
|
15
|
15
93904-44320 ScrewTAPPING, 4X12 |
93904-44320 |
US $0.37 |
||
|
16
|
16
93904-45220 ScrewTAPPING, 5X12 |
93904-45220 |
US $0.37 |
