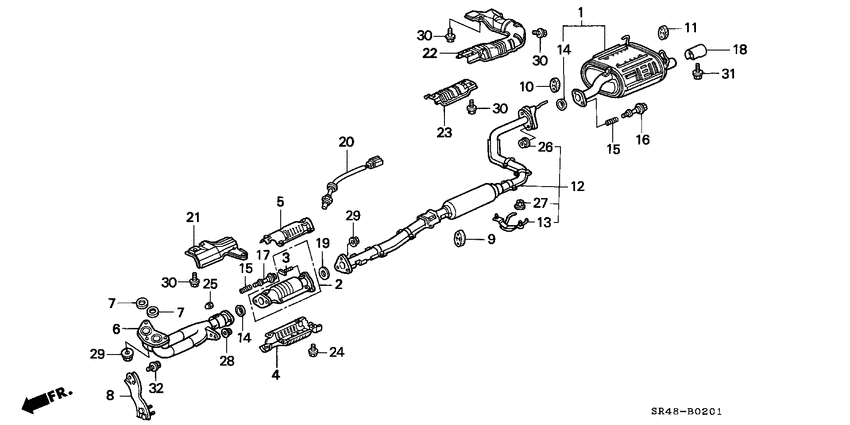

Exhaust pipe (2) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18030-SR4-J80
Silencer set
|
18030-SR4-J80 |
— | ||
|
2
|
2
18160-P08-J00 Converter comp.MNE940 |
18160-P08-J00 |
US $727.04 |
||
|
3
|
3
18176-P08-003 BoltCONVERTER |
18176-P08-003 |
US $7 |
||
|
4
|
4
18181-P08-J00
Cover
|
18181-P08-J00 |
— | ||
| replacement | |||||
|
4
|
4
18181-P72-000
Cover
|
18181-P72-000 |
— | ||
|
5
|
5
18182-P30-000 CoverUPPER |
18182-P30-000 |
US $24.19 |
||
|
6
|
6
18210-SR3-J42
Pipe a
|
18210-SR3-J42 |
— | ||
|
7
|
7
18212-SB2-961 GasketEX. PIPE (ISHINO) |
18212-SB2-961 |
from US $6.51 |
||
|
8
|
8
18213-SR3-A21
Stay
|
18213-SR3-A21 |
— | ||
|
9
|
9
18215-SH3-J01 RubberEX. MOUNTING (70X55X30) |
18215-SH3-J01 |
US $10.26 |
||
|
10
|
10
18215-SR3-000 RubberEX. MOUNTING |
18215-SR3-000 |
US $8.79 |
||
|
11
|
11
18215-671-000 RubberSILENCER MOUNTING (74X53X22) |
18215-671-000 |
from US $9.92 |
||
|
12
|
12
18220-ST0-J01
Pipe b
|
18220-ST0-J01 |
— | ||
|
13
|
13
18222-SR3-A20
Bracket
|
18222-SR3-A20 |
— | ||
|
14
|
14
18229-SH3-X30 GasketEX. FLEXIBLE (50.8MM-64MM) |
18229-SH3-X30 |
US $22.02 |
||
|
15
|
15
18230-SA0-930 SpringFLEXIBLE JOINT |
18230-SA0-930 |
from US $3.74 |
||
|
16
|
16
18231-SR3-A22 Bolt bFLEXIBLE JOINT |
18231-SR3-A22 |
from US $9.36 |
||
|
17
|
17
18231-SR3-J01 Bolt aFLEXIBLE JOINT |
18231-SR3-J01 |
from US $9.36 |
||
|
18
|
18
18310-SR3-J41
Finisher
|
18310-SR3-J41 |
— | ||
|
19
|
19
18393-SH3-S00 GasketPRE-CHAMBER (52.5MM-53.5MM) |
18393-SH3-S00 |
from US $7.33 |
||
|
20
|
20
37810-P08-J11
Thermosensor
|
37810-P08-J11 |
— | ||
|
21
|
21
74601-SR3-000
Plate
|
74601-SR3-000 |
— | ||
|
22
|
22
74651-SR3-000 PlateFUEL TANK BAFFLE |
74651-SR3-000 |
US $52.50 |
||
|
23
|
23
74653-SR3-000 Sensor assyVENT PRESSURE |
74653-SR3-000 |
US $22.30 |
||
|
24
|
24
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
US $2.96 |
||
|
24
|
24
90023-PK1-000
Bolt
|
90023-PK1-000 |
— | ||
| replacement | |||||
|
24
|
24
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
US $2.96 |
||
|
25
|
25
90110-679-003 NutSELF-LOCK, 8MM |
90110-679-003 |
from US $5.05 |
||
|
26
|
26
90115-SH3-J30 NutSELF-LOCK, 8MM |
90115-SH3-J30 |
US $4.06 |
||
|
27
|
27
90115-SR3-A71 NutPREVAILING TORQUE, 8MM |
90115-SR3-A71 |
US $2.80 |
||
|
28
|
28
90117-SB2-000 NutSELF-LOCK, 8MM |
90117-SB2-000 |
from US $3.29 |
||
|
29
|
29
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
30
|
30
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
31
|
31
95801-060-140-8 BoltFLANGE, 6X14 |
95801-060-140-8 |
from US $0.52 |
||
| replacement | |||||
|
31
|
31
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
32
|
32
95801-080-200-8 BoltFLANGE, 8X20 |
95801-080-200-8 |
from US $0.59 |
||
| replacement | |||||
|
32
|
32
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
