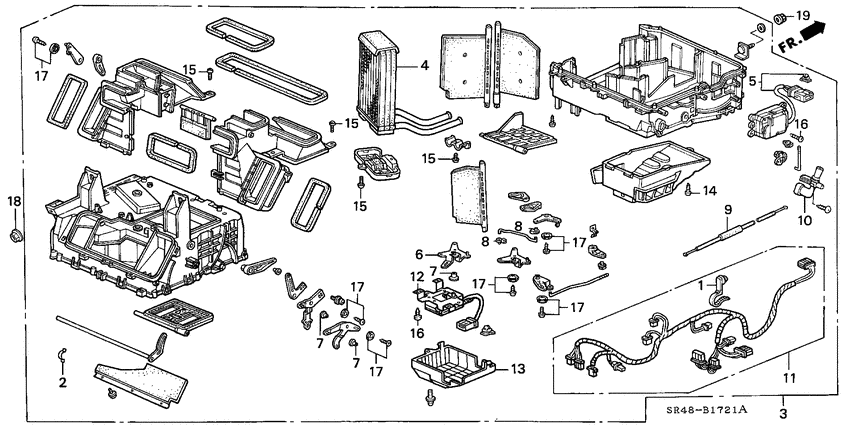

Heater unit (AUTO AIR CONDITIONER) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
2
|
2
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
3
|
3
79100-SR3-943
Heater unit
|
79100-SR3-943 |
— | ||
|
4
|
4
79110-SR3-003
Core comp
|
79110-SR3-003 |
— | ||
|
5
|
5
79140-SR3-003
Motor assy.
|
79140-SR3-003 |
— | ||
|
6
|
6
79180-SR3-941
Lever
|
79180-SR3-941 |
— | ||
|
7
|
7
79192-SR3-003 BushLINK |
79192-SR3-003 |
US $1.47 |
||
|
8
|
8
79195-SF1-003 HolderROD |
79195-SF1-003 |
US $1.82 |
||
|
9
|
9
79544-SR3-000
Cable
|
79544-SR3-000 |
— | ||
|
10
|
10
80540-SR3-940
Aspirator assy.
|
80540-SR3-940 |
— | ||
|
11
|
11
80650-SR3-942
Sub harness a
|
80650-SR3-942 |
— | ||
|
12
|
12
80760-SR3-941
Motor assy.
|
80760-SR3-941 |
— | ||
|
13
|
13
80762-SR3-942
Cover
|
80762-SR3-942 |
— | ||
|
14
|
14
90121-SR3-003 ScrewTAPPING, 5X12 |
90121-SR3-003 |
US $2.44 |
||
|
15
|
15
90122-SR3-003 ScrewTAPPING, 5X12 |
90122-SR3-003 |
US $1.12 |
||
|
16
|
16
90125-SR3-003 ScrewTAPPING, 5X15 |
90125-SR3-003 |
US $1.47 |
||
|
17
|
17
90133-SR3-003 Screw-washer4X16 |
90133-SR3-003 |
from US $1.12 |
||
|
18
|
18
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
from US $1.47 |
||
|
19
|
19
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
