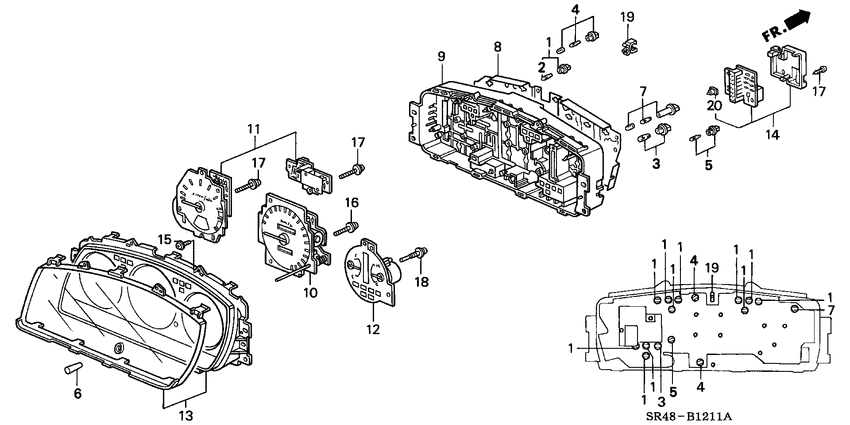

Meter components (DENSO) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-SA5-004 Bulb & socket14V 1.4W) (DENSO) (BASE:BLACK |
35505-SA5-004 |
US $3.50 |
||
|
2
|
2
35506-SA5-004
Bulb
|
35506-SA5-004 |
— | ||
| replacement | |||||
|
2
|
2
35506-SA5-003 Bulb14V 1.4W |
35506-SA5-003 |
from US $1.85 |
||
|
3
|
3
37103-SR3-004
Socket assy
|
37103-SR3-004 |
— | ||
|
4
|
4
37104-SR3-004
Socket assy
|
37104-SR3-004 |
— | ||
|
5
|
5
37105-SR3-004
Socket assy
|
37105-SR3-004 |
— | ||
|
6
|
6
37106-SR3-004
Knob
|
37106-SR3-004 |
— | ||
|
7
|
7
37238-SR3-004
Socket assy
|
37238-SR3-004 |
— | ||
|
8
|
8
78108-SR3-Z82 Panel |
78108-SR3-Z82 |
US $34.05 |
||
|
9
|
9
78110-SR3-Z22 Case assy. |
78110-SR3-Z22 |
US $64.64 |
||
|
10
|
10
78115-SR3-J14
Speedometer assy
|
78115-SR3-J14 |
— | ||
|
11
|
11
78125-SR3-N02
Tachometer assy.
|
78125-SR3-N02 |
— | ||
|
12
|
12
78130-SR3-N24 Meter assyFUEL & TEMPERATURE |
78130-SR3-N24 |
US $91.52 |
||
|
13
|
13
78155-SR3-J82
Visor assy
|
78155-SR3-J82 |
— | ||
|
15
|
15
90102-SB2-004 ScrewTAPPING, 4X14 (DENSO) |
90102-SB2-004 |
US $1.96 |
||
|
16
|
16
90132-SR3-004
Screw-washer
|
90132-SR3-004 |
— | ||
|
17
|
17
90135-SH2-004
Screw-washer
|
90135-SH2-004 |
— | ||
|
18
|
18
90137-SR3-004
Screw
|
90137-SR3-004 |
— | ||
|
19
|
19
91547-SR3-003 ClampWIRE HARNESS |
91547-SR3-003 |
US $1.61 |
||
