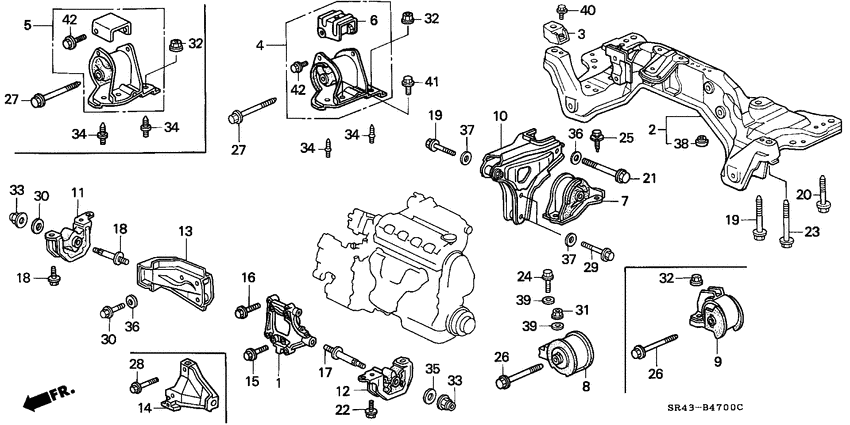

Engine mounts (1) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KA
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38930-P06-A00
Bracket
|
38930-P06-A00 |
— | ||
|
2
|
2
50200-SR3-L50 BeamRR. (POWER STEERING) |
50200-SR3-L50 |
US $688.64 |
||
|
3
|
3
50203-SR3-000
Collar
|
50203-SR3-000 |
— | ||
| replacement | |||||
|
3
|
3
50203-SR3-010
Collar
|
50203-SR3-010 |
— | ||
|
5
|
5
50805-SR3-900
RUBBER TRANSMISSION MOUNTING (MT)
|
50805-SR3-900 |
— | ||
|
7
|
7
50810-SR3-030
Rubber
|
50810-SR3-030 |
— | ||
|
9
|
9
50821-SR3-020
RUBBER, ENGINE SIDE MOUNTING
|
50821-SR3-020 |
— | ||
|
10
|
10
50827-SR3-010
BRACKET , ENGINE REAR MOUNTING
|
50827-SR3-010 |
— | ||
|
11
|
11
50841-SR3-030 Rubber, Rh. fr. stopper insulator (mt) |
50841-SR3-030 |
US $49.37 |
||
|
12
|
12
50842-SR3-030 Rubber, Lh. fr. stopper insulator (mt) |
50842-SR3-030 |
US $49.37 |
||
|
13
|
13
50843-SR3-010 BracketR. FR. STOPPER (MT) |
50843-SR3-010 |
US $55.42 |
||
|
15
|
15
90055-P01-000 BoltSPECIAL, 10X35 |
90055-P01-000 |
US $1.68 |
||
|
16
|
16
90056-P01-000 BoltSPECIAL, 10X50 |
90056-P01-000 |
US $1.96 |
||
|
17
|
17
90131-SR3-010 BoltL. FR. STOPPER 00000000 - PS058448 |
90131-SR3-010 |
US $13.16 |
||
|
17
|
17
90131-ST7-000 BoltL. FR. STOPPER PS058449 - |
90131-ST7-000 |
US $19 |
||
|
18
|
18
90133-SR3-010
Bolt
|
90133-SR3-010 |
— | ||
|
19
|
19
90161-SR3-000 BoltFLANGE, 14X107 |
90161-SR3-000 |
US $7.10 |
||
|
20
|
20
90162-SR3-000 BoltFLANGE, 14X60 |
90162-SR3-000 |
US $5.77 |
||
|
21
|
21
90165-SM4-020 BoltFLANGE, 12X101 |
90165-SM4-020 |
US $8.14 |
||
|
22
|
22
90166-SR3-000 BoltFLANGE, 10X30 |
90166-SR3-000 |
US $1.95 |
||
|
23
|
23
90167-SR3-000 BoltFLANGE, 14X120 |
90167-SR3-000 |
US $11.84 |
||
|
25
|
25
90176-SK7-013 BoltFLANGE, 10X31 |
90176-SK7-013 |
US $3.99 |
||
|
26
|
26
90182-SR3-000
Bolt
|
90182-SR3-000 |
— | ||
|
27
|
27
90183-SR3-000
Bolt
|
90183-SR3-000 |
— | ||
|
29
|
29
90188-SR3-010 BoltFLANGE, 14X67 |
90188-SR3-010 |
US $6.51 |
||
|
30
|
30
90190-SR3-000 BoltFLANGE, 12X64 |
90190-SR3-000 |
US $4.28 |
||
|
32
|
32
90371-SR3-000 NutFLANGE, 12MM |
90371-SR3-000 |
US $4.07 |
||
|
33
|
33
90372-SR3-003 NutFLANGE, 12MM |
90372-SR3-003 |
from US $2.18 |
||
|
34
|
34
90380-SR3-000 BoltSTUD, 12X57.6 |
90380-SR3-000 |
US $5.45 |
||
|
35
|
35
90504-SR3-010 WasherFR. STOPPER |
90504-SR3-010 |
US $4.03 |
||
|
36
|
36
90505-SB2-000
Washer
|
90505-SB2-000 |
— | ||
|
37
|
37
90505-SR3-000
Washer
|
90505-SR3-000 |
— | ||
|
38
|
38
91613-SR3-003 GrommetSUB FRAME, 15MM 00000000 - PS058662 |
91613-SR3-003 |
US $1.26 |
||
|
40
|
40
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
41
|
41
95701-120-200-8 BoltFLANGE, 12X20 |
95701-120-200-8 |
from US $0.89 |
||
|
42
|
42
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
