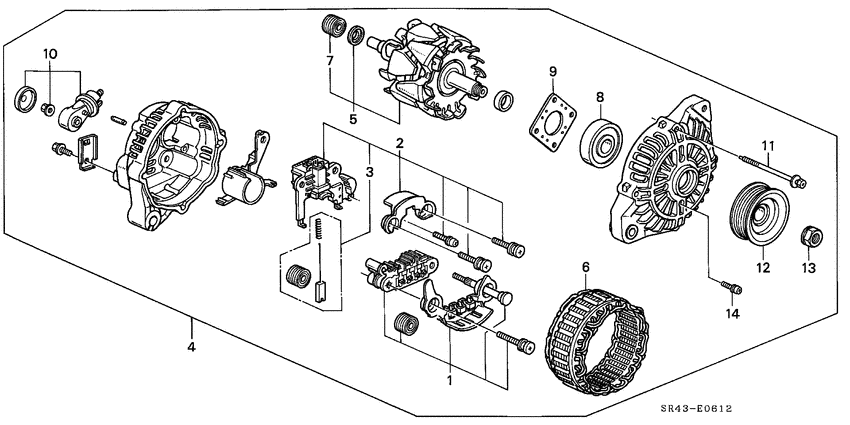

Alternator (MITSUBISHI; 2) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04311-P08-J02
Rectifier set
2354813 - |
04311-P08-J02 |
— | ||
|
2
|
2
04314-P08-J02
Regulator set
2354813 - |
04314-P08-J02 |
— | ||
|
3
|
3
04315-P08-J02
Brush set
2354813 - |
04315-P08-J02 |
— | ||
|
4
|
4
31100-P08-024
Alternator assy
2354813 - |
31100-P08-024 |
— | ||
|
5
|
5
31101-P08-J02 Rotor assy.2354813 - |
31101-P08-J02 |
US $286.72 |
||
|
6
|
6
31102-P01-004
Stator
2354813 - |
31102-P01-004 |
— | ||
|
7
|
7
31111-P08-J02 BearingRR. GENERATOR 2354813 - |
31111-P08-J02 |
from US $13.17 |
||
|
8
|
8
31114-P01-014 BearingFR. GENERATOR 2354813 - |
31114-P01-014 |
US $12.60 |
||
|
9
|
9
31116-P01-014
Retainer
2354813 - |
31116-P01-014 |
— | ||
|
10
|
10
31123-P08-J02
Terminal set
2354813 - |
31123-P08-J02 |
— | ||
|
11
|
11
31125-P08-J02 BoltFLANGE 2354813 - |
31125-P08-J02 |
from US $2.38 |
||
|
12
|
12
31141-P01-004
Pulley
2354813 - |
31141-P01-004 |
— | ||
|
13
|
13
31142-P08-J02 Nut2354813 - |
31142-P08-J02 |
US $1.68 |
||
|
14
|
14
31146-PE0-004 Screw2354813 - |
31146-PE0-004 |
from US $1.47 |
