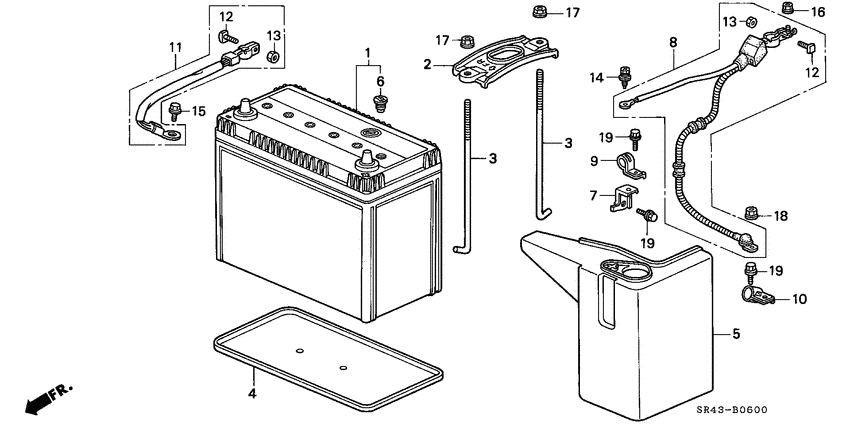

Battery/battery cable Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KA
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-SR3-A06
Battery assy
PS026145 - |
31500-SR3-A06 |
— | ||
|
1
|
1
31500-SR3-A05
Battery assy
|
31500-SR3-A05 |
— | ||
|
1
|
1
31500-SR3-A03
Battery assy
00000000 - PS026144 |
31500-SR3-A03 |
— | ||
|
1
|
1
31500-SR3-A07
Battery assy
|
31500-SR3-A07 |
— | ||
|
2
|
2
31512-SR3-000 PlateBATTERY SETTING |
31512-SR3-000 |
US $10.91 |
||
|
3
|
3
31513-SR3-000 BoltBATTERY SETTING |
31513-SR3-000 |
from US $4.01 |
||
|
4
|
4
31521-SR3-000 Box assyBATTERY |
31521-SR3-000 |
US $9.61 |
||
|
5
|
5
31531-SR3-A00
Cover assy.
|
31531-SR3-A00 |
— | ||
|
6
|
6
31542-SA5-666 PlugVENT (MF) (FURUKAWA) |
31542-SA5-666 |
from US $2.59 |
||
|
6
|
6
31542-SA5-665 PlugVENT (MF) (PANASONIC) |
31542-SA5-665 |
from US $2.74 |
||
|
6
|
6
31542-SA5-664 PlugVENT (MF) (YUASA) |
31542-SA5-664 |
US $2.59 |
||
|
7
|
7
32115-P01-000
Stay
|
32115-P01-000 |
— | ||
|
8
|
8
32410-SR3-A21
Cable assy
|
32410-SR3-A21 |
— | ||
|
9
|
9
32414-SR3-000
Clamp a
|
32414-SR3-000 |
— | ||
|
10
|
10
32416-SR3-A00 Clamp cSTARTER CABLE |
32416-SR3-A00 |
US $4.20 |
||
|
11
|
11
32600-SR3-A01
Cable assy
|
32600-SR3-A01 |
— | ||
|
12
|
12
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.59 |
||
|
13
|
13
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $1.78 |
||
|
14
|
14
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
15
|
15
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $0.70 |
||
|
17
|
17
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.50 |
||
|
18
|
18
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
19
|
19
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.56 |
