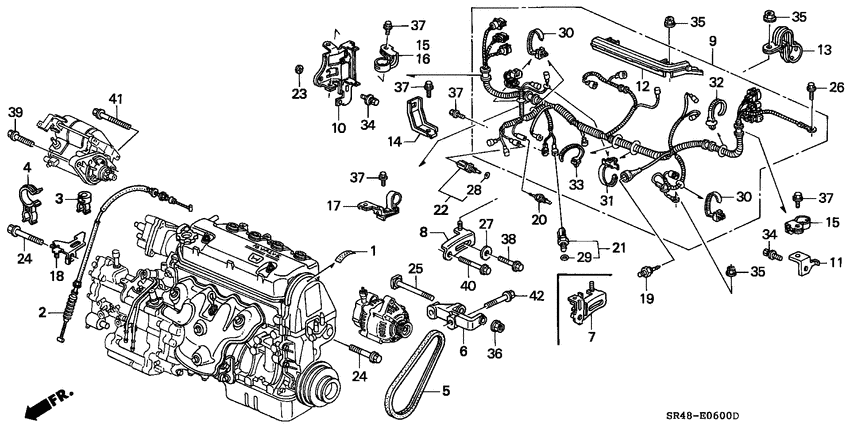

Engine wire harness/clamp (1) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.5EL
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17274-P00-E01 LabelPLUG CAUTION |
17274-P00-E01 |
US $2.17 |
||
|
5
|
5
31110-P01-003
Belt
|
31110-P01-003 |
— | ||
| replacement | |||||
|
5
|
5
31110P2J305
BELTACG
|
31110P2J305 |
— | ||
|
5
|
5
31110-P01-004 BeltALTERNATOR (MITSUBOSHI) |
31110-P01-004 |
US $26.24 |
||
|
6
|
6
31112-P01-000
Bracket
|
31112-P01-000 |
— | ||
|
7
|
7
31113-P01-000
Stay
|
31113-P01-000 |
— | ||
|
8
|
8
31113-P08-000
Stay
|
31113-P08-000 |
— | ||
|
9
|
9
32110-P01-T02
Harness
2122605 - |
32110-P01-T02 |
— | ||
|
9
|
9
32110-P01-T01
Harness
00000000 - 2122604 |
32110-P01-T01 |
— | ||
|
10
|
10
32113-P01-000
Stay comp
|
32113-P01-000 |
— | ||
|
13
|
13
32741-P01-000
Clamp a
|
32741-P01-000 |
— | ||
|
14
|
14
32743-P01-000
Clamp c
|
32743-P01-000 |
— | ||
|
15
|
15
32744-P01-000
Clamp d
|
32744-P01-000 |
— | ||
|
17
|
17
32746-P01-000
Clamp f
|
32746-P01-000 |
— | ||
|
18
|
18
32752-P01-000
Stay b
|
32752-P01-000 |
— | ||
|
19
|
19
37240-PT0-004
Switch
|
37240-PT0-004 |
— | ||
|
19
|
19
37240-PT0-013
Switch
|
37240-PT0-013 |
— | ||
|
20
|
20
37750-PH2-014 Thermo unitDENSO |
37750-PH2-014 |
US $45.03 |
||
|
21
|
21
37760-P00-004
Switch assy
|
37760-P00-004 |
— | ||
| replacement | |||||
|
21
|
21
37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)(NIPPON THERMOSTAT) |
37760-P00-003 |
from US $43.66 |
||
|
21
|
21
37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)(NIPPON THERMOSTAT) |
37760-P00-003 |
from US $43.66 |
||
|
23
|
23
75353-671-000 LockSCREW |
75353-671-000 |
US $1.94 |
||
|
24
|
24
90050-PG7-000 BoltFLANGE, 12X65 |
90050-PG7-000 |
US $3.18 |
||
|
25
|
25
90057-PG7-003 BoltALTERNATOR |
90057-PG7-003 |
US $5.21 |
||
|
26
|
26
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
27
|
27
90430-657-000 Washer23X8.3X3.2 |
90430-657-000 |
US $9.33 |
||
|
29
|
29
91307-PN4-000
O-ring
|
91307-PN4-000 |
— | ||
| replacement | |||||
|
29
|
29
91307-PN3-000 O-ring,17.8x1.4 |
91307-PN3-000 |
from US $1.66 |
||
|
30
|
30
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
31
|
31
91507-P01-003 Clip bHARNESS BAND (DARK BROWN) (129.4MM) |
91507-P01-003 |
from US $2.25 |
||
|
32
|
32
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) 2122542 - |
91540-SV4-003 |
from US $2.81 |
||
|
33
|
33
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) 00000000 - 2122541 |
91547-SF4-003 |
from US $5.03 |
||
|
34
|
34
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
35
|
35
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
36
|
36
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
37
|
37
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
38
|
38
95701-080-300-8 BoltFLANGE, 8X30 |
95701-080-300-8 |
from US $0.74 |
||
|
39
|
39
95701-100-350-8 BoltFLANGE, 10X35 |
95701-100-350-8 |
from US $0.81 |
||
|
40
|
40
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
||
|
41
|
41
95701-100-900-8 BoltFLANGE, 10X90 |
95701-100-900-8 |
from US $1.48 |
||
|
42
|
42
95801-100-500-8 BoltFLANGE, 10X50 |
95801-100-500-8 |
from US $0.98 |
||
