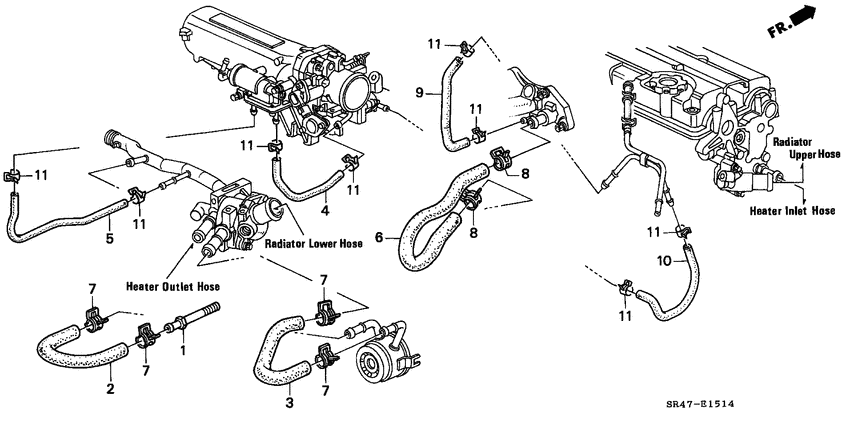

Water hose (5) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- area code
- KW
- left-hand drive
- +
- head light washer
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11108-PR3-010
Joint
|
11108-PR3-010 |
— | ||
|
2
|
2
19422-PR3-000 Hose, OIL COOLER IN. |
19422-PR3-000 |
US $15.56 |
||
|
3
|
3
19423-PR3-000 Hose, OIL COOLER OUTLET |
19423-PR3-000 |
from US $14.71 |
||
|
4
|
4
19506-P75-000 Hose, ELECTRONIC AIR CONTROL VALVE IN. |
19506-P75-000 |
US $6.02 |
||
|
5
|
5
19507-PR3-000 HoseELECTRONIC AIR CONTROL VALVE OUTLET |
19507-PR3-000 |
US $9.77 |
||
|
6
|
6
19508-P08-000 Hose, BY-PASS OUTLET |
19508-P08-000 |
from US $13.45 |
||
|
7
|
7
19512-PC6-003 ClipHOSE, 18.7MM |
19512-PC6-003 |
from US $3.18 |
||
|
8
|
8
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
9
|
9
19527-P30-J00
Hose a
|
19527-P30-J00 |
— | ||
|
10
|
10
19528-P30-J00
Hose b
|
19528-P30-J00 |
— | ||
|
11
|
11
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
