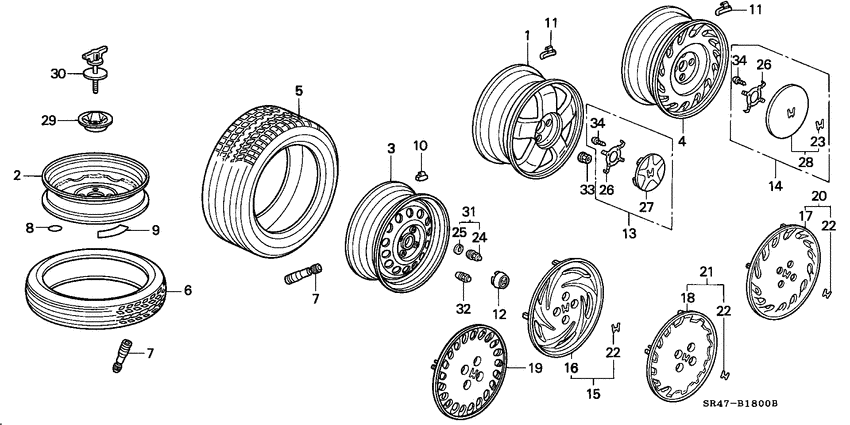

Tire/wheel disk Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42700-SR3-J23
Disk
|
42700-SR3-J23 |
— | ||
|
3
|
3
42700-SR3-N54 DiskWHEEL (15X5 1/2JJ) (KANAI) (BLACK) |
42700-SR3-N54 |
US $121.60 |
||
|
3
|
3
42700-SR3-N55 DiskWHEEL (15X5 1/2JJ) (YUNO) (BLACK) |
42700-SR3-N55 |
US $121.60 |
||
|
5
|
5
42751-SR3-B14
Tire
|
42751-SR3-B14 |
— | ||
|
5
|
5
42751-SR3-B15
Tire
|
42751-SR3-B15 |
— | ||
|
5
|
5
42751-SR3-B16
Tire
|
42751-SR3-B16 |
— | ||
|
7
|
7
42753-SR1-003
Valve
|
42753-SR1-003 |
— | ||
|
7
|
7
42753-SH3-003 ValveRIM (US PACIFIC) |
42753-SH3-003 |
US $2.01 |
||
| replacement | |||||
|
7
|
7
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
7
|
7
42753-671-003 ValveRIM (TAIHEIYO) |
42753-671-003 |
US $2.01 |
||
| replacement | |||||
|
7
|
7
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
7
|
7
42753-SE0-A02 ValveRIM (SCHRADER) |
42753-SE0-A02 |
US $20.10 |
||
| replacement | |||||
|
7
|
7
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
10
|
10
44730-SB2-013
Weight
|
44730-SB2-013 |
— | ||
|
10
|
10
44726-SB2-003
Weight
|
44726-SB2-003 |
— | ||
|
10
|
10
44724-SB2-003
Weight
|
44724-SB2-003 |
— | ||
|
10
|
10
44729-SB2-003
Weight
|
44729-SB2-003 |
— | ||
|
10
|
10
44723-SB2-003
Weight
|
44723-SB2-003 |
— | ||
|
10
|
10
44728-SB2-003
Weight
|
44728-SB2-003 |
— | ||
|
10
|
10
44722-SB2-003
Weight
|
44722-SB2-003 |
— | ||
|
10
|
10
44721-SB2-003
Weight
|
44721-SB2-003 |
— | ||
|
10
|
10
44727-SB2-003
Weight
|
44727-SB2-003 |
— | ||
|
10
|
10
44725-SB2-003
Weight
|
44725-SB2-003 |
— | ||
|
11
|
11
44722-SF1-A01
Weight
|
44722-SF1-A01 |
— | ||
|
11
|
11
44721-SF1-A01
Weight
|
44721-SF1-A01 |
— | ||
|
11
|
11
44727-SF1-A01
Weight
|
44727-SF1-A01 |
— | ||
|
11
|
11
44726-SF1-A01
Weight
|
44726-SF1-A01 |
— | ||
|
11
|
11
44730-SF1-A01
Weight
|
44730-SF1-A01 |
— | ||
|
11
|
11
44724-SF1-A01
Weight
|
44724-SF1-A01 |
— | ||
|
11
|
11
44729-SF1-A01
Weight
|
44729-SF1-A01 |
— | ||
|
11
|
11
44723-SF1-A01
Weight
|
44723-SF1-A01 |
— | ||
|
11
|
11
44728-SF1-A01
Weight
|
44728-SF1-A01 |
— | ||
|
13
|
13
44732-SR3-J22
Cap assy.
|
44732-SR3-J22 |
— | ||
|
15
|
15
44733-SR3-N63
Trim
|
44733-SR3-N63 |
— | ||
|
22
|
22
44734-SR3-000
Plate
|
44734-SR3-000 |
— | ||
|
24
|
24
44736-SA0-981 NutWHEEL (FUSE RASHI) 00000000 - 0S102726 |
44736-SA0-981 |
US $4.90 |
||
|
24
|
24
44736-SR3-981
Nut
0S102727 - |
44736-SR3-981 |
— | ||
|
25
|
25
44737-SA0-981
Washer
|
44737-SA0-981 |
— | ||
|
26
|
26
44738-SB6-801 RetainerALUMINIUM CENTER CAP |
44738-SB6-801 |
US $11.06 |
||
|
27
|
27
44742-SR3-J22
Base
|
44742-SR3-J22 |
— | ||
|
29
|
29
83850-SH3-000 PlateANCHOR BOLT |
83850-SH3-000 |
US $4.90 |
||
|
30
|
30
83853-SA7-980 BoltANCHOR (79MM) |
83853-SA7-980 |
US $4.90 |
||
|
31
|
31
90304-SA0-981 Nut comp.WHEEL (FUSE RASHI) 00000000 - 0S102726 |
90304-SA0-981 |
from US $5.46 |
||
|
31
|
31
90381-SR3-981 Nut comp.WHEEL (FUSE RASHI) 0S102727 - |
90381-SR3-981 |
US $6.30 |
||
|
31
|
31
90304-SA0-982 Nut comp.WHEEL (SATO RASHI) |
90304-SA0-982 |
US $8.26 |
||
|
32
|
32
90304-SA5-013 NutWHEEL (CHROME PLATED) (FUSE RASHI) |
90304-SA5-013 |
from US $4.44 |
||
|
33
|
33
90304-SA5-013 NutWHEEL (CHROME PLATED) (FUSE RASHI) |
90304-SA5-013 |
from US $4.44 |
||
|
34
|
34
93901-35120 ScrewTAPPING, 5X10 |
93901-35120 |
US $0.37 |
||
