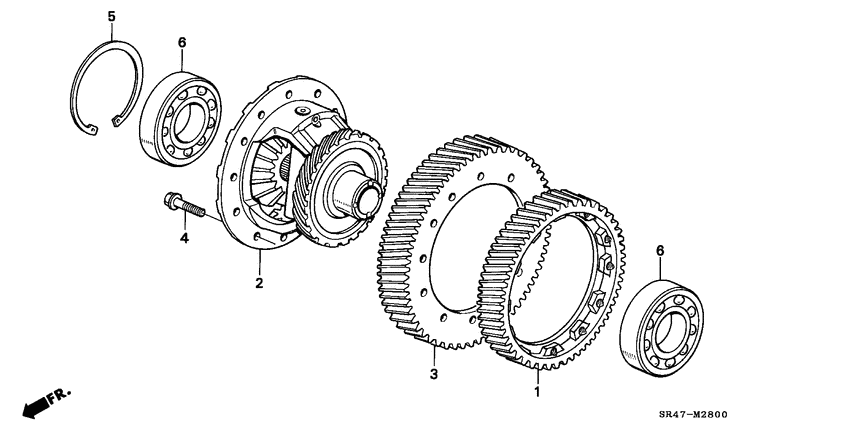

Differential (4WD) Diagram Honda CIVIC
- Year
- 1992
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 4
- grade
- RTSI
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29011-PH8-900 GearTRANSFER DRIVE |
29011-PH8-900 |
US $120.32 |
||
|
2
|
2
41100-P22-010 Case assy.FR. DIFFERENTIAL |
41100-P22-010 |
US $307.20 |
||
|
3
|
3
41233-PH8-900 GearFINAL DRIVEN |
41233-PH8-900 |
US $183.04 |
||
|
4
|
4
90017-PH8-000 BoltSPECIAL, 10MM (A) |
90017-PH8-000 |
US $3.29 |
||
|
5
|
5
90419-PH8-000 Ring 6SNAP, 80X3.0 |
90419-PH8-000 |
US $5.32 |
||
|
5
|
5
90414-689-000 Ring 1SNAP, 80X2.5 |
90414-689-000 |
US $6.44 |
||
|
5
|
5
90416-689-000 Ring 3SNAP, 80X2.7 |
90416-689-000 |
US $6.44 |
||
|
5
|
5
90418-689-000 Ring 5SNAP, 80X2.9 |
90418-689-000 |
US $6.44 |
||
|
5
|
5
90415-689-000 Ring 2SNAP, 80X2.6 |
90415-689-000 |
US $6.44 |
||
|
5
|
5
90417-689-000 Ring 4SNAP, 80X2.8 |
90417-689-000 |
US $6.44 |
||
|
6
|
6
96100-620-830-0 BearingRADIAL BALL, 6208 |
96100-620-830-0 |
US $17 |
