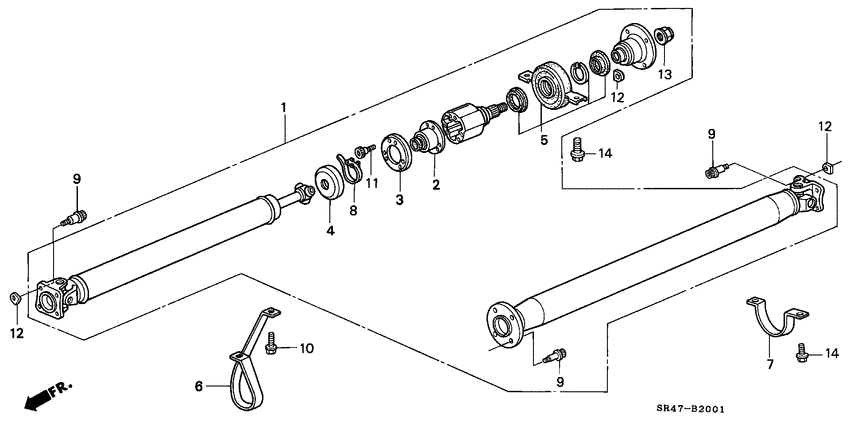

Propeller shaft (ABS; -'93) Diagram Honda CIVIC
- Year
- 1992
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 4
- grade
- RTSI
- abs
- +
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40100-SR7-970
Shaft assy
|
40100-SR7-970 |
— | ||
|
2
|
2
40228-SH9-003
Boot comp.
|
40228-SH9-003 |
— | ||
|
3
|
3
40231-SH9-300
Ring
|
40231-SH9-300 |
— | ||
|
4
|
4
40241-SD9-300
Guard
|
40241-SD9-300 |
— | ||
|
5
|
5
40520-SH9-971
Support assy.
|
40520-SH9-971 |
— | ||
|
6
|
6
40540-SR7-010 ProtectorNO.1 PROPELLER SHAFT |
40540-SR7-010 |
US $14.72 |
||
|
7
|
7
40541-SH9-970
Protector
|
40541-SH9-970 |
— | ||
|
8
|
8
44329-SB0-300
Band
|
44329-SB0-300 |
— | ||
| replacement | |||||
|
8
|
8
44352-SA2-300 BandDAMPER WEIGHT |
44352-SA2-300 |
US $16.86 |
||
|
9
|
9
90113-SD9-000 Bolt12POINT 8X23.5 |
90113-SD9-000 |
US $2.73 |
||
|
10
|
10
90116-SD9-000
Bolt
|
90116-SD9-000 |
— | ||
|
11
|
11
90162-SH9-000
Bolt
|
90162-SH9-000 |
— | ||
|
12
|
12
90310-SD9-000 NutYOKE, 8MM |
90310-SD9-000 |
US $1.61 |
||
|
13
|
13
90361-SH9-000
Nut
|
90361-SH9-000 |
— | ||
|
14
|
14
90382-SH9-000 BoltFLANGE, 10X29 |
90382-SH9-000 |
US $3.22 |
||
