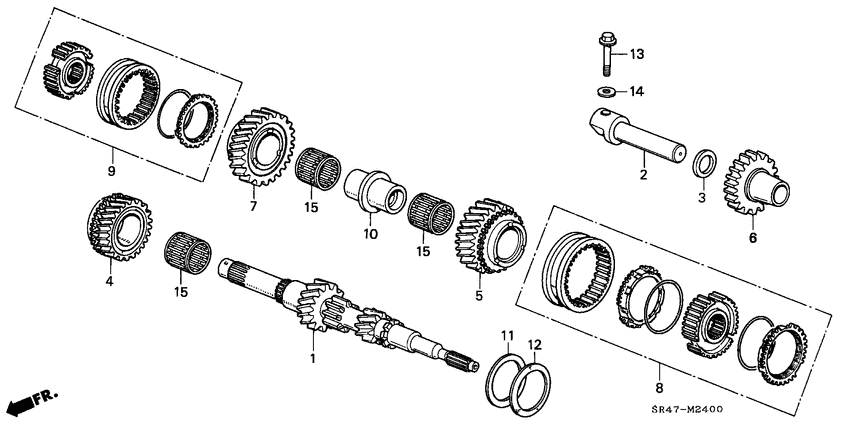

Mainshaft (4WD) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 4
- grade
- RTSI
- abs
- +
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-P22-000 Mainshaft comp. |
23210-P22-000 |
US $279.04 |
||
|
2
|
2
23261-P63-010
Shaft
|
23261-P63-010 |
— | ||
|
3
|
3
23262-PH8-000
Washer
|
23262-PH8-000 |
— | ||
|
4
|
4
23441-P22-000 GearMAINSHAFT THIRD |
23441-P22-000 |
US $83.84 |
||
|
5
|
5
23451-P22-000 GearMAINSHAFT FOURTH |
23451-P22-000 |
US $85.76 |
||
|
6
|
6
23540-P63-000 Gear compREVERSE IDLE |
23540-P63-000 |
US $63.36 |
||
|
7
|
7
23581-P22-000 GearMAINSHAFT FIFTH |
23581-P22-000 |
US $85.76 |
||
|
8
|
8
23623-P22-315
Sleeve set
|
23623-P22-315 |
— | ||
|
9
|
9
23626-P22-315
Sleeve set
|
23626-P22-315 |
— | ||
|
10
|
10
23915-PG1-010 CollarDISTANCE, 28X35X56 |
23915-PG1-010 |
US $27.52 |
||
|
11
|
11
23927-PH8-000
Washer
|
23927-PH8-000 |
— | ||
|
12
|
12
23928-PH8-600
Washer
|
23928-PH8-600 |
— | ||
|
13
|
13
95801-100-350-8 BoltFLANGE, 10X35 |
95801-100-350-8 |
from US $0.98 |
||
|
14
|
14
90401-PG1-000
Washer
|
90401-PG1-000 |
— | ||
|
15
|
15
91104-PG1-008 BearingNEEDLE, 35X40X26 |
91104-PG1-008 |
US $9.66 |
